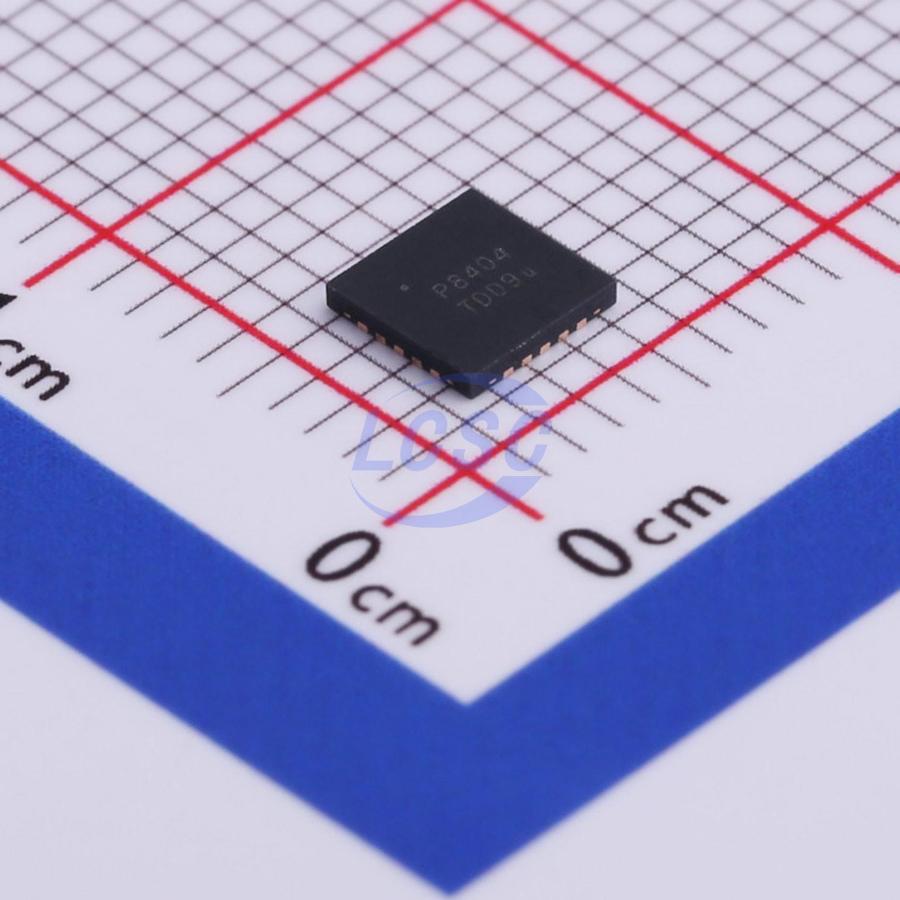

PAM8404KGR
11mA 2.5V~5.5V 2-Channel 3Wx2@4Ω Class D QFN-20-EP(4x4) Audio Amplifiers RoHS
3W/CH FILTERLESS STEREO CLASS-D AUDIO AMPLIFIER
- Manufacturer
- DIODES
- Manufacturer part #
- PAM8404KGR
- Store part #
- C460732
- Package / case
- QFN-20-EP(4x4)
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,677 in stock
#C460732
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.02 | ₹73.02 |
| 10+ | ₹57.15 | ₹571.50 |
| 30+ | ₹50.21 | ₹1,506.30 |
| 100+ | ₹41.73 | ₹4,173.00 |
| 500+ | ₹38.04 | ₹19,020.00 |
| 1,000+ | ₹35.64 | ₹35,640.00 |
1 × ₹73.02
₹73.02
excl. GST
₹86.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PAM8404KGR
₹73.02 for 1 + GST
Specifications
- Quiescent Current
- 11mA
- Voltage - Supply
- 2.5V~5.5V
- Features
- Filterless architecture
- Total Harmonic Distortion + Noise (THD+N)
- 0.15%
- Operating Temperature
- -40℃~+85℃
- Number of Inputs
- 2 Pairs Differential Inputs
- Signal-to-Noise Ratio
- 87dB
- Speaker Channels
- 2-Channel
- Efficiency
- 89%;84%
- Output Power
- 3Wx2@4Ω
- Class
- Class D
- Power Supply Rejection Ratio (PSRR)
- -63dB
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
The DIODES PAM8404 is a 3W high-efficiency filterless Class-D audio amplifier in 4mm × 4mm and 2mm × 2mm wafer chip scale (WCSP) packages that requires few external components. Features like 89% efficiency, -63dB PSRR, improved RF-rectification immunity, and very small PCB area make the PAM8404 Class-D amplifier ideal for cellular handsets and PDA applications. In cellular handsets, the earpiece, speaker phone, and melody ringer can each be driven by the PAM8404. The PAM8404 allows independent gain by summing signals from seperate sources, and has as low as 43μν noise floor. PAM8404 is available in QFN 4mm x 4mm and WCSP 2mm x 2mm packages.
Applications
- LCD Monitor / TV Projector
- Notebook Computers
- Portable Speakers
- Portable DVD Players, Game Machines
- Cellular Phones/Speaker Phones
Key features
- 3W Output at 10% THD with a 4Ω Load and 5V Supply
- Supply Voltage from 2.5V to 5.5V
- Efficiency Up to 89%
- Superior Low Noise without Input
- Few External Components to Save the Space and Cost
- Short Circuit Protection
- Thermal Shutdown
- Space Saving Packages: 2mm×2mm WCSP, 4mm x 4mm Thin QFN
- Pb-Free Packages
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
