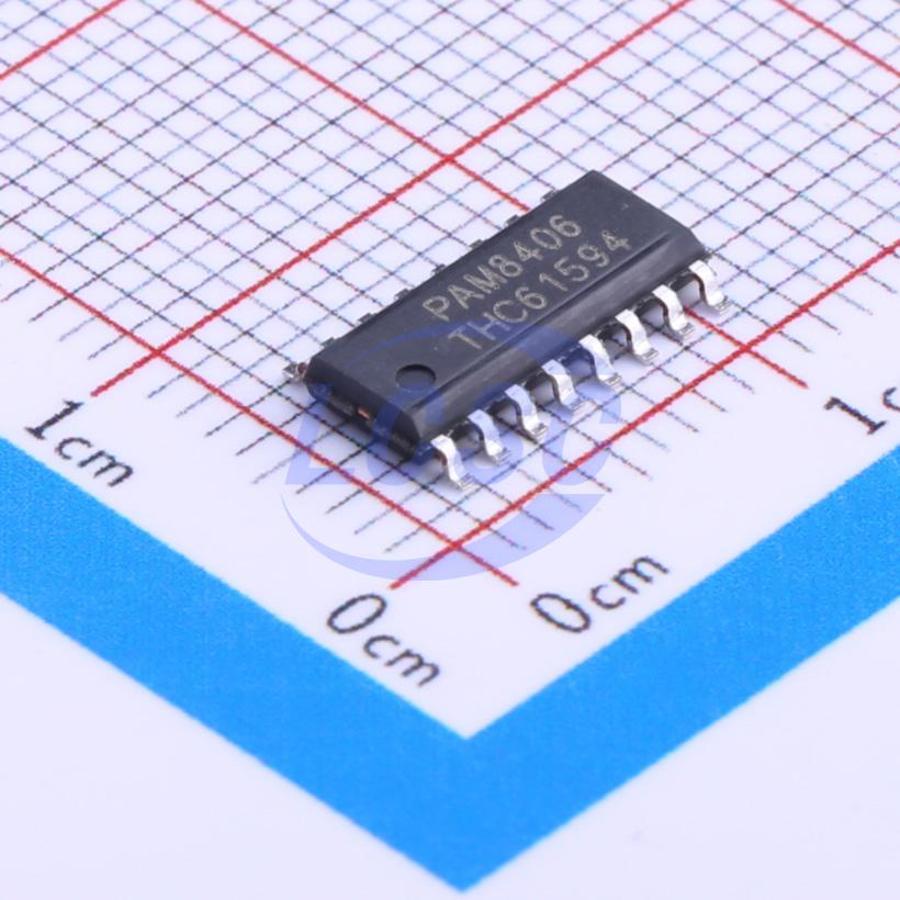

PAM8406DR

The PAM8406 is a 5W audio amplifier with an alternative option between Class-D and Class-AB output, which makes the device very ideal for efficiency-EMI compatible applications. The PAM8406’s low THD+N and high SNR allow it to achieve high-quality sound reproduction. The device’s fully differential output with new filter-less architecture (Class-D Mode) allows the device to drive the speaker directly, requiring no low-pass output filters and DC blocking capacitors, thus saving system cost and PCB area. The device has an efficiency of up to 90%. It can extend battery life, which is ideal for portable applications. It is fully protected against faults with short-circuit protection and thermal protection. The PAM8406 is available in the SOP-16L/SOP-16(EP) package.

Applications

• LCD TVs
• Multimedia Speakers
• AM/FM Systems
• DABs

Key features

• Alternative Output: Class-D or Class-AB
• 5W Output at 10% THD with a 2Ω Load and 5V Power Supply at Class-D Mode
• 3W Output at 10% THD with a 4Ω Load and 5V Power Supply
• Filterless, Low Quiescent Current and No EMI
• Low THD+N at Fully Output Range
• Superior Low Noise
• Efficiency up to 90% with Class-D Mode
• No Pop At Turn-On/Off
• Full Short-Circuit Protection With Auto Recovery
• Thermal Shutdown
• Few External Components to Save Space and Cost
• Totally Lead-Free & Fully RoHS Compliant
• Halogen- and Antimony-Free. “Green” Device
