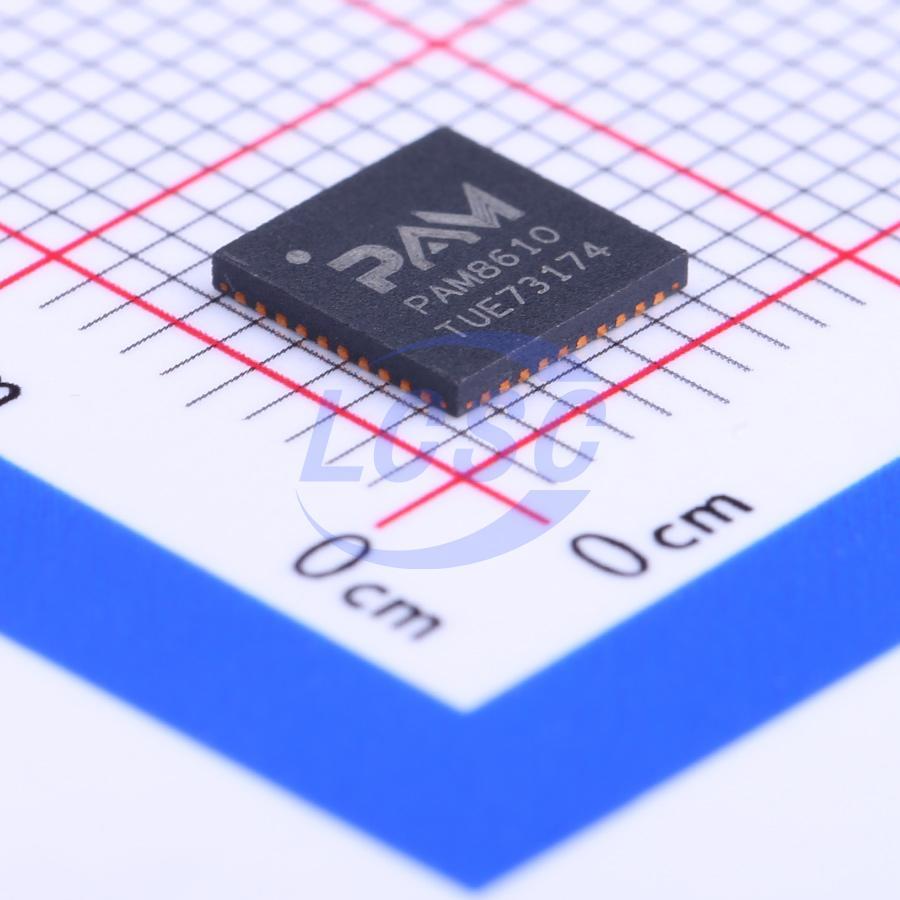

PAM8610TR
20mA 7V~15V 2-Channel 10Wx2@8Ω Class D WQFN-40-EP(6x6) Audio Amplifiers RoHS
10W Stereo Class-D Audio Power Amplifier with DC Volume Control
- Manufacturer
- DIODES
- Manufacturer part #
- PAM8610TR
- Store part #
- C80797
- Package / case
- WQFN-40-EP(6x6)
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,068 in stock
#C80797
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹164.46 | ₹164.46 |
| 10+ | ₹134.71 | ₹1,347.10 |
| 30+ | ₹118.20 | ₹3,546.00 |
| 100+ | ₹99.73 | ₹9,973.00 |
| 500+ | ₹91.47 | ₹45,735.00 |
| 1,000+ | ₹87.78 | ₹87,780.00 |
1 × ₹164.46
₹164.46
excl. GST
₹194.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PAM8610TR
₹164.46 for 1 + GST
Specifications
- Quiescent Current
- 20mA
- Voltage - Supply
- 7V~15V
- Features
- Analog voltage gain;Enable/shutdown function;Automatic mute/no-noise switch
- Total Harmonic Distortion + Noise (THD+N)
- 0.1%
- Operating Temperature
- -20℃~+85℃
- Signal-to-Noise Ratio
- 80dB
- Number of Inputs
- 2 Pairs Differential Inputs
- Speaker Channels
- 2-Channel
- Efficiency
- 90%
- Output Power
- 10Wx2@8Ω
- Class
- Class D
- Power Supply Rejection Ratio (PSRR)
- -60dB
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.246 g
Overview
The PAM8610 is a 10w (per channel) stereo Class- D audio amplifier with DC Volume Control which offers low THD + N (0.1%), low EMI, and good PSRR thus high- quality sound reproduction. The 32 steps DC volume control has a +32dB to - 75dB range. The PAM8610 runs off of a 7V to 15V supply at much higher efficiency than competitors ICs. The PAM8610 only requires very few external components, significantly saving cost and board space. The PAM8610 is available in a 40pin QFN 6mm*6mm package.
Applications
- Flat Monitor /LCD TVS
- Multi- Media Speaker System
- DVD Players, Game Machines
- Room Box
- Music Instruments
Key features
- 10W @ 10% THD/Channel Output into a 8Ω Load at 13V
- Low Noise: - 90dB
- Over 90% Efficiency
- 32 Step DC Volume Control from - 75dB to +32dB
- With Shutdown/Mute/Fade Function
- Over Current, Thermal and Short- Circuit Protection
- Low THD+N
- Low Quiescent Current
- Pop Noise Suppression
- Small Package Outlines: Thin 40- pin QFN 6mm*6mm Package
- Pb- Free Package (RoHS Complaint)
