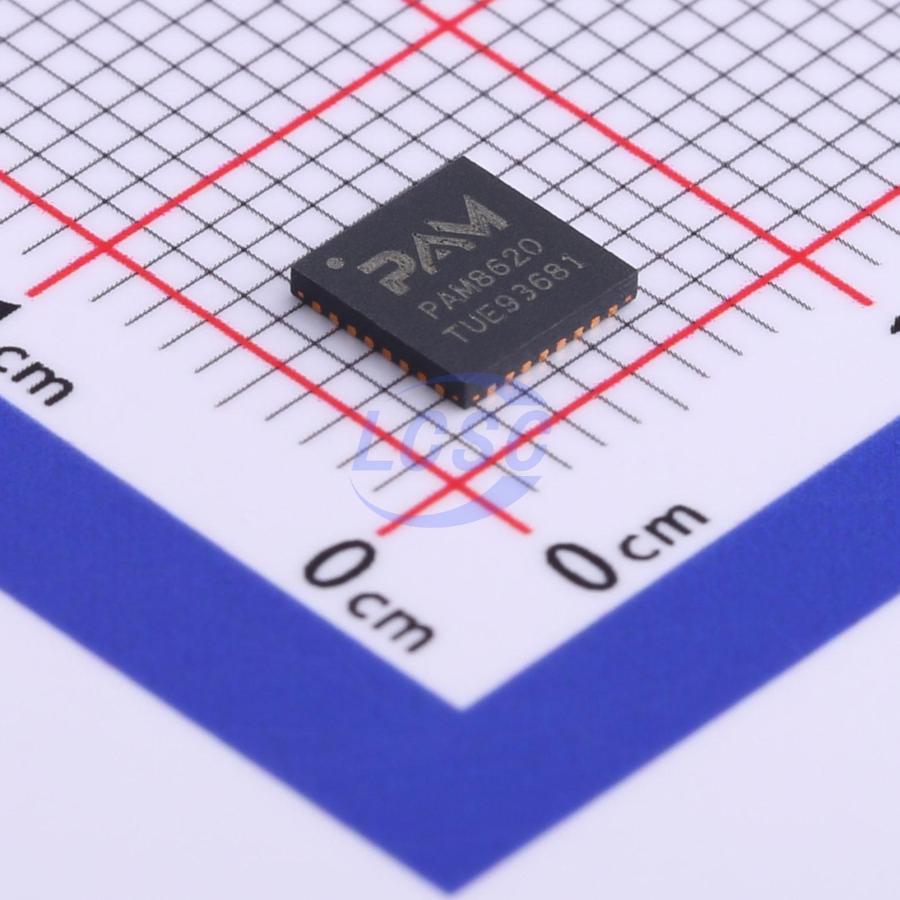

PAM8620TR
16.5mA 8V~26V 2-Channel 10Wx2@8Ω Class D QFN-32-EP(5x5) Audio Amplifiers RoHS
20W Stereo Class-D Audio Amplifier with Power Limit
- Manufacturer
- DIODES
- Manufacturer part #
- PAM8620TR
- Store part #
- C705094
- Package / case
- QFN-32-EP(5x5)
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,246 in stock
#C705094
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.39 | ₹80.39 |
1 × ₹80.39
₹80.39
excl. GST
₹94.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PAM8620TR
₹80.39 for 1 + GST
Specifications
- Quiescent Current
- 16.5mA
- Voltage - Supply
- 8V~26V
- Features
- Enable/shutdown function;Overvoltage protection;Automatic mute/no-noise switch
- Total Harmonic Distortion + Noise (THD+N)
- 0.12%
- Operating Temperature
- -20℃~+85℃
- Signal-to-Noise Ratio
- 90dB
- Number of Inputs
- 2 Pairs Differential Inputs
- Speaker Channels
- 2-Channel
- Efficiency
- 90%
- Output Power
- 10Wx2@8Ω
- Class
- Class D
- Power Supply Rejection Ratio (PSRR)
- -65dB
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.184 g
Overview
The PAM8620 is a 20w (per channel) stereo Class- D audio amplifier which offers low THD +N (0.2%), low EMI and good PSRR thus highquality sound reproduction. The PAM8620 runs off of an 8V to 26V supply at much higher efficiency. The PAM8620 only requires very few external components, significantly saving cost and board space. The PAM8620 is available in a small W- QFN5050- 32 (Standard) package.
Applications
- Flat monitors/LCD TVs
- Multi- media speaker systems
- DVD players, game machines
- Boom boxes
- Music instruments
Key features
- 30W x 2 into a 8Ω Speaker Music Playing at VCC = 24V
- 20W x 2 into a 4Ω or 8Ω Speaker with Continuous Power
- Low Noise: - 90dB
- Over 90% Efficiency
- Shutdown/Mute Function
- Overcurrent, OVP, UVLO, Thermal and Short- Circuit Protection
- Low THD+N
- Power Limit with Non- Clip
- Low Quiescent Current
- Pop Noise Suppression
- Small Package Outlines: W- QFN5050- 32 (Standard)
- Lead- Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
