NXPDatasheet (PDF)

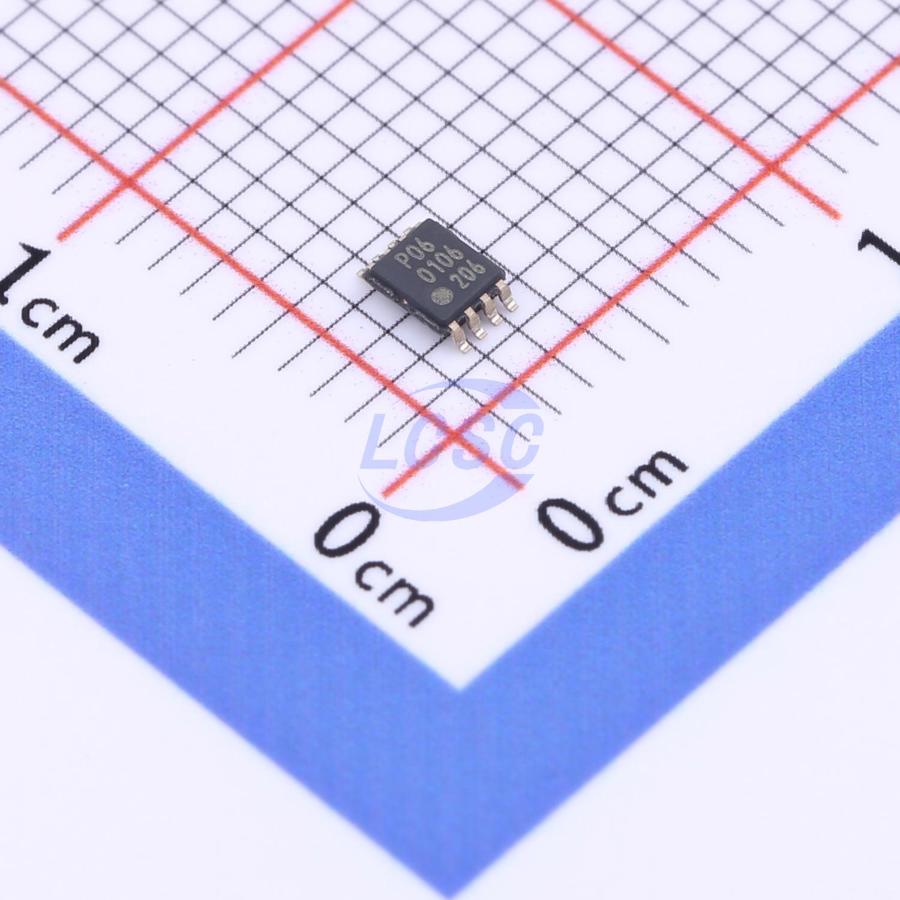

PCA9306DC1Z
2Mbps 1 2 VSSOP-8 Translators, Level Shifters RoHS
VSSOP-8ROHS3 CompliantActive
Dual bidirectional I²C-bus and SMBus voltage-level translator
- Manufacturer
- NXP
- Manufacturer part #
- PCA9306DC1Z
- Store part #
- C5119911
- Package / case
- VSSOP-8
- Category
- Translators, Level Shifters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,723 in stock
#C5119911
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 3+ | ₹98.64 | ₹295.92 |
| 30+ | ₹85.39 | ₹2,561.70 |
| 90+ | ₹79.53 | ₹7,157.70 |
| 300+ | ₹61.70 | ₹18,510.00 |
| 1,500+ | ₹58.45 | ₹87,675.00 |
| 3,000+ | ₹56.49 | ₹1,69,470.00 |
3 × ₹98.64
₹295.92
excl. GST
₹349.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PCA9306DC1Z
₹295.92 for 3 + GST
Specifications
- output type
- Open-drain
- Interface
- I2C;SMBus
- Operating Temperature
- -40℃~+105℃
- Data Rate
- 2Mbps
- Number of Elements
- 1
- Channel Type
- Bidirectional
- Features
- Automatic direction detection;Output enable high-impedance
- Voltage - Supply
- 1V~3.6V;1.8V~5.5V
- Number of Circuits
- 2
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 3 (multiples of 3)
- Unit weight
- 0.024 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PCA9306DC1,125#C2677422NXP · VSSOP-8-0.5mm | NXP | VSSOP-8-0.5mm | 5 | ₹71.39 · 5 in stock | View |
 | NLV9306USG#C464249onsemi · US-8 | onsemi | US-8 | 1 | ₹117.69 · 1 in stock | View |
 | PCA9306TDCURQ1#C2865399TI · VSSOP-8 | TI | VSSOP-8 | 446 | ₹191.36 · 446 in stock | View |
 | PCA9306DCTR#C123752TI · SM-8 | TI | SM-8 | 99,645 | ₹57.27 · 99,645 in stock | View |
 | PCA9306DCTT#C2652952TI · SM-8 | TI | SM-8 | 686 | ₹56.60 · 686 in stock | View |
