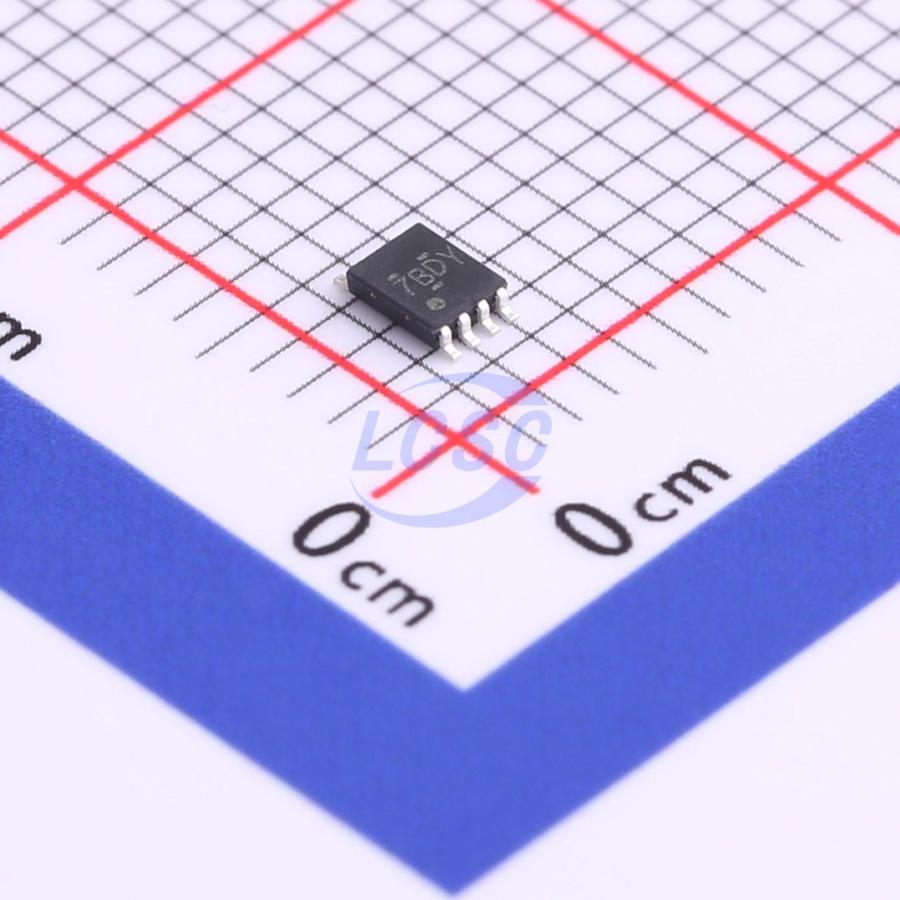

PCA9306DCUR

The PCA9306 is a dual bidirectional I2C and SMBus voltage-level translator with enable (EN) input, operating over a VREF1 range of 1.2V to 3.3V and a VREF2 range of 1.8V to 5.5V. The PCA9306 enables bidirectional voltage translation between 1.2V and 5V without requiring a direction pin. The switch features low on-state resistance (RON), establishing connections with minimal propagation delay. When EN is high, the translator switch opens, connecting SCL1 and SDA1 I/Os to SCL2 and SDA2 I/Os respectively, enabling bidirectional data flow between ports. When EN is low, the translator switch closes, presenting a high-impedance state between ports. In addition to voltage translation, the PCA9306 can be used to isolate a 400kHz bus from a 100kHz bus by controlling the EN pin during fast-mode communication to disconnect the slower bus.

Applications

• I2C, SMBus, PMBus, MDIO, UART, low-speed SDIO, GPIO, and other dual-signal interfaces
• Servers
• Routers (telecom switching equipment)
• Personal computers
• Industrial automation

Key features

• 2-bit bidirectional voltage-level translator for SDA and SCL lines in mixed-mode I2C applications
• Compatible with I2C and SMBus
• Maximum propagation delay less than 1.5ns, supporting standard-mode and fast-mode I2C devices and multiple controllers
• Voltage-level translation between: 1.2V VREF1 and 1.8V, 2.5V, 3.3V, or 5V VREF2; 1.8V VREF1 and 2.5V, 3.3V, or 5V VREF2; 2.5V VREF1 and 3.3V or 5V VREF2; 3.3V VREF1 and 5V VREF2
• Bidirectional voltage translation without direction pin
• Low 3.5Ω on-resistance between input and output ports for minimal signal distortion
• Open-drain I2C I/O ports (SCL1, SDA1, SCL2, and SDA2)
• 5V-tolerant I2C and I/O ports for mixed-mode signal operation
• SCL1, SDA1, SCL2, and SDA2 pins in high-impedance state when EN is low
• Latch-free operation provides isolation when EN is low
• Straight-through pin arrangement for simplified PCB routing
• Latch-up performance exceeds 100mA per JESD 78 Class II
• ESD protection exceeds JESD 22 specifications
• 2000V Human Body Model (A114-A)
• 1000V Charged Device Model (C101)
