NXPDatasheet (PDF)

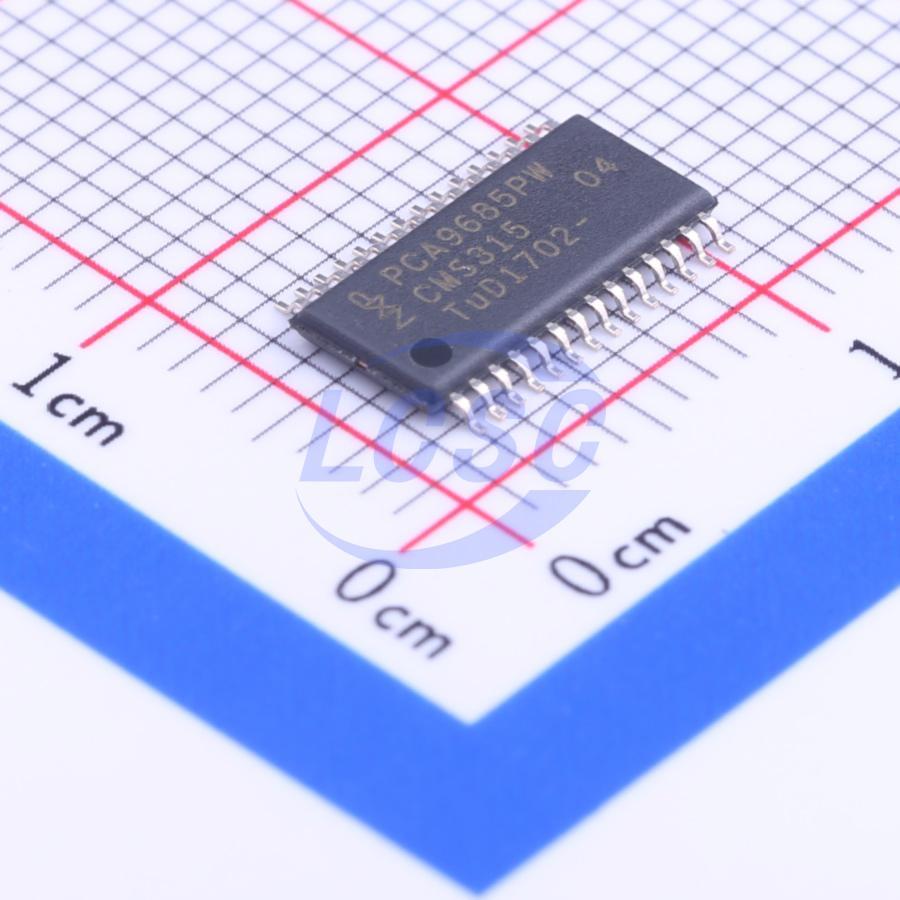

PCA9685PW/Q900,118
25mA 200Hz PWM 16 5.5V 2.3V~5.5V TSSOP-28 LED Drivers RoHS
TSSOP-28ROHS3 CompliantActive
16-channel, 12-bit PWM Fm+ I2C-bus LED controller
- Manufacturer
- NXP
- Manufacturer part #
- PCA9685PW/Q900,118
- Store part #
- C92206
- Package / case
- TSSOP-28
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,168 in stock
#C92206
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹486.64 | ₹486.64 |
| 10+ | ₹412.93 | ₹4,129.30 |
| 30+ | ₹369.22 | ₹11,076.60 |
| 100+ | ₹325.09 | ₹32,509.00 |
| 500+ | ₹304.65 | ₹1,52,325.00 |
| 1,000+ | ₹295.29 | ₹2,95,290.00 |
1 × ₹486.64
₹486.64
excl. GST
₹574.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PCA9685PW/Q900,118
₹486.64 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Output Current
- 25mA
- Frequency - Switching
- 200Hz
- Dimming
- PWM
- Number of Channels
- 16
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 5.5V
- Voltage - Input(DC)
- 2.3V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.226 g
