DIODESDatasheet (PDF)
PI3A3899ZTAEX
1.65V~4.3V 4 2Ω UQFN-16(1.8x2.6) Analog Switches, Multiplexers, Demultiplexers RoHS
UQFN-16(1.8x2.6)ROHS3 CompliantSold out at source

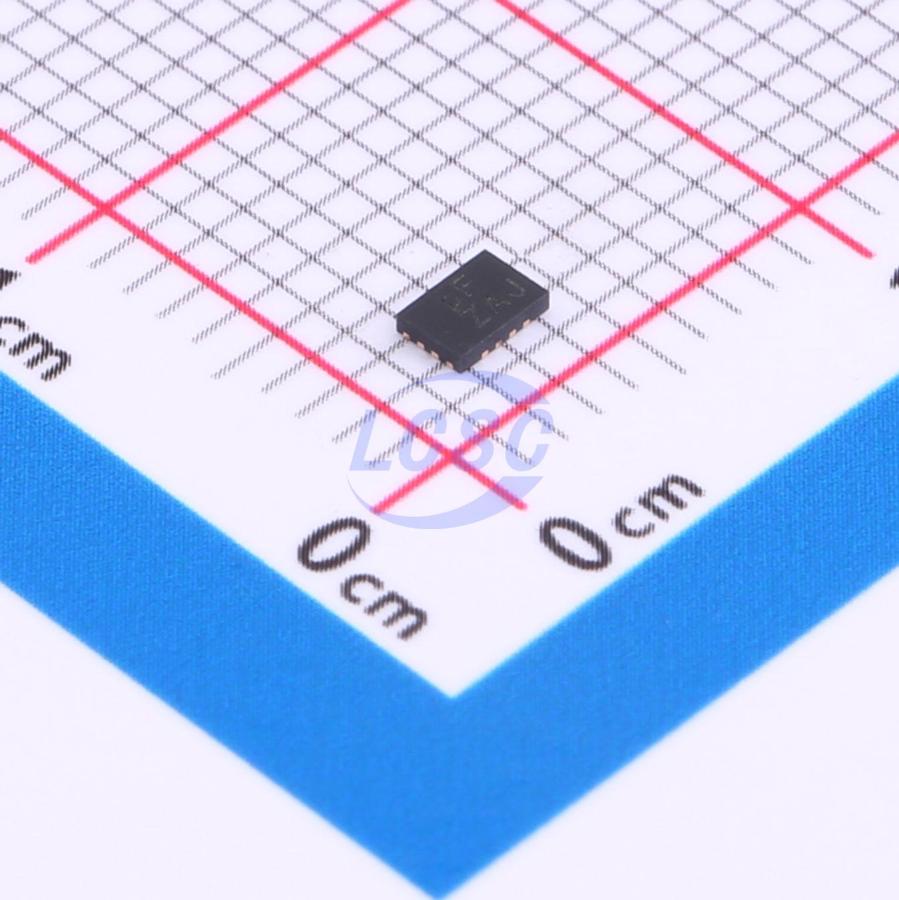

High Speed, Dual DPDT Analog Switch
- Manufacturer
- DIODES
- Manufacturer part #
- PI3A3899ZTAEX
- Store part #
- C3657935
- Package / case
- UQFN-16(1.8x2.6)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,431 in stock
#C3657935
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.86 | ₹54.86 |
| 10+ | ₹48.33 | ₹483.30 |
| 30+ | ₹45.50 | ₹1,365.00 |
| 100+ | ₹42.02 | ₹4,202.00 |
| 500+ | ₹40.50 | ₹20,250.00 |
| 1,000+ | ₹39.41 | ₹39,410.00 |
1 × ₹54.86
₹54.86
excl. GST
₹64.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PI3A3899ZTAEX
₹54.86 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 1.65V~4.3V
- Number of Channels
- 4
- Ron
- 2Ω
- Con
- 15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Sold out at source
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.031 g
Overview
The DIODES PI3A3899 is a dual double-pole double-throw (DPDT) CMOS switch. It can be used as low power audio and dual SIM card applications. Specified over a wide operating power supply voltage range, +1.65V to +4.3V the switch has a low On-Resistance of 2.4Ω at 3.0V. Control inputs, Ax, tolerate input drive signals up to 5V, independent of supply voltage.
Applications
- Cell Phones
- PDAs
- Portable Instrumentation Battery Powered
- Computer Peripherals Dual SIM Card Switching
Key features
- CMOS Technology for Analog Applications
- Low On-Resistance: 2.0Ω
- Wide VCC Range: +1.65V to +4.3V
- ICC Maximum 1μA @ TA = +25°C
- Rail-to-Rail Switching Throughout Signal Range
- Fast Switching Speed: 10ns TYP. at 3.0V
- High Off Isolation: -67dB @ 1MHz
- Crosstalk Rejection: -10dB @ 1MHz
- Wide Bandwidth: 330MHz
- Interfaces with 1.8V Chipset
- High ESD Performance: 8kV for I/O to GND
- Extended Industrial Temperature Range: -40°C to 85°C
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPG4899YD-1#C48543256TECH PUBLIC · QFN-16L(1.8x2.6) | TECH PUBLIC | QFN-16L(1.8x2.6) | 433 | ₹62.67 · 433 in stock | View |
 | TMUX1574RSVR#C2673120TI · UQFN-16(1.8x2.6) | TI | UQFN-16(1.8x2.6) | 3,900 | ₹117.51 · 3,900 in stock | View |
 | TS3A44159RSVR#C469867TI · UQFN-16(1.8x2.6) | TI | UQFN-16(1.8x2.6) | 51 | ₹107.98 · 51 in stock | View |
 | WB4899#C53374635waferbest · UTQFN-16L(1.8x2.6) | waferbest | UTQFN-16L(1.8x2.6) | 2,850 | ₹40.81 · 2,850 in stock | View |
 | UM3670A#C510534Union Semiconductor · UQFN-16(1.8x2.6) | Union Semiconductor | UQFN-16(1.8x2.6) | 1,049 | ₹58.24 · 1,049 in stock | View |
