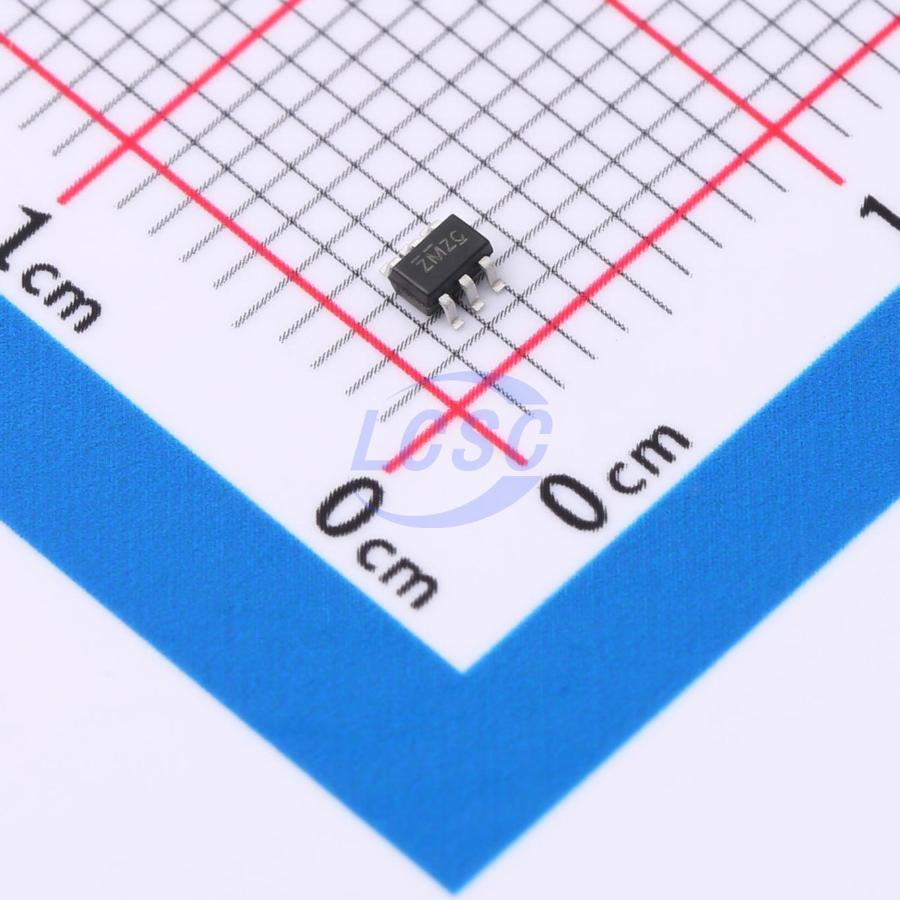

PI5A3157CEX

The DIODES PI5A3157 is a high- bandwidth, fast single- pole double- throw (SPDT) CMOS switch. It can be used as an analog switch or as a low- delay bus switch. Specified over a wide operating power supply voltage range, 1.65V to 5.5V, the PI5A3157 has a maximum ON resistance of 12Ω at 1.65V, 9Ω at 2.3V & 6Ω at 4.5V. Break- before- make switching prevents both switches being enabled simultaneously. This eliminates signal disruption during switching. The control input, S, tolerates input drive signals up to 5.5V, independent of supply voltage. The PI5A3157 is an improved direct replacement for the NC- 7SB3157.

Applications

• Cell Phones
• PDAs
• Portable Instrumentation
• Battery Powered Communications
• Computer Peripherals

Key features

• CMOS Technology for Bus and Analog Applications
• Low On- Resistance: 8Ω at 5.0V
• Wide VDD Range: 1.65V to 5.5V
• Rail- to- Rail Signal Range
• Control Input Overvoltage Tolerance: 5.5V min.
• Fast Transition Speed: 5.2ns max. at 5V
• High Off Isolation: 57dB at 10MHz
• 54dB (10MHz) Crosstalk Rejection Reduces Signal Distortion
• Break- Before- Make Switching
• High Bandwidth: 250 MHz
• Extended Industrial Temperature Range: - 40°C to 85°C
• Improved Direct Replacement for NC7SB3157
• Totally Lead- Free & Fully RoHS Compliant
• Halogen and Antimony Free. "Green" Device
• Packaging (Pb- free & Green available): 6- pin SC70 (C)
