onsemiDatasheet (PDF)

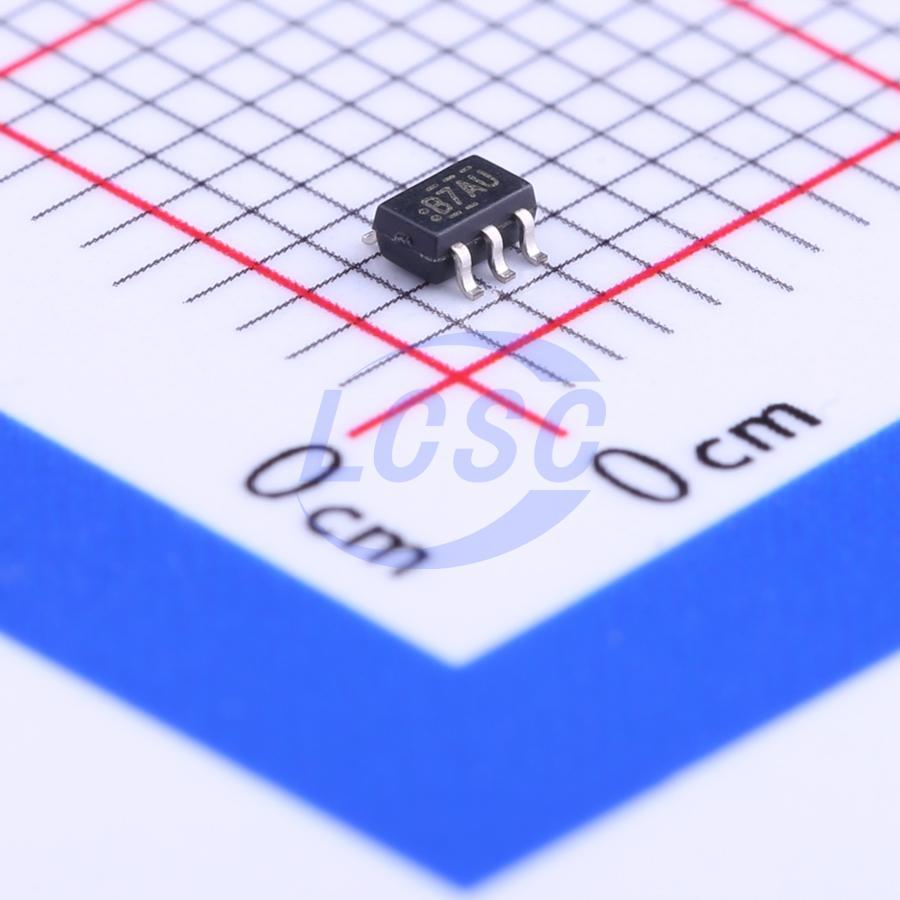

NC7SB3157P6X
3Ω 2 1.65V~5.5V SC-70-6(SOT-363) Analog Switches, Multiplexers, Demultiplexers RoHS
SC-70-6(SOT-363)ROHS3 CompliantActive
Low-Voltage SPDT Analog Switch or 2:1 Multiplexer / De-multiplexer Bus Switch
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SB3157P6X
- Store part #
- C87403
- Package / case
- SC-70-6(SOT-363)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,628 in stock
#C87403
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹20.37 | ₹20.37 |
| 10+ | ₹16.42 | ₹164.20 |
| 30+ | ₹14.43 | ₹432.90 |
| 100+ | ₹12.95 | ₹1,295.00 |
| 500+ | ₹11.76 | ₹5,880.00 |
| 1,000+ | ₹10.25 | ₹10,250.00 |
1 × ₹20.37
₹20.37
excl. GST
₹24.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SB3157P6X
₹20.37 for 1 + GST
Specifications
- Features
- Glitch-free switching
- Operating Temperature
- -40℃~+85℃
- Ron
- 3Ω
- Number of Channels
- 2
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 300ps
- Con
- 18.5pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.032 g
Overview
The NC7SB3157 / FSA3157 is a high-performance, single-pole / double-throw (SPDT) analog switch or 2:1 multiplexer / de-multiplexer bus switch. The device is fabricated with advanced sub-micron CMOS technology to achieve high-speed enable and disable times and low on resistance. The break-beforemake select circuitry prevents disruption of signals on the B Port due to both switches temporarily being enabled during select pin switching. The device is specified to operate over the 1.65 to 5.5V VCC operating range. The control input tolerates voltages up to 5.5V, independent of the VCC operating range.
Key features
- Useful in Both Analog and Digital Applications
- Space-Saving, SC70 6-Lead Surface Mount Package
- Ultra-Small, MicroPak Leadless Package
- Low On Resistance: <10Ω on Typical at 3.3V VCC
- Broad VCC Operating Range: 1.65V to 5.5V
- Rail-to-Rail Signal Handling
- Power-Down, High-Impedance Control Input
- Over-Voltage Tolerance of Control Input to 7.0V
- Break-Before-Make Enable Circuitry
- 250MHz, 3dB Bandwidth
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS2057XC6#C237027RUNIC · SC-70-6 | RUNIC | SC-70-6 | 3,530 | ₹11.56 · 3,530 in stock | View |
 | PI5A3157CEX#C2673088DIODES · SOT-363-6 | DIODES | SOT-363-6 | 5,965 | ₹48.33 · 5,965 in stock | View |
 | MTS5A3157DCKR#C42403079MSKSEMI · SC-70-6 | MSKSEMI | SC-70-6 | 1,910 | ₹7.78 · 1,910 in stock | View |
 | MSTG3157CTR#C42403080MSKSEMI · SC-70-6 | MSKSEMI | SC-70-6 | 940 | ₹10.40 · 940 in stock | View |
 | HX3157-ST3#C47345559ZHHXDZ · SOT-363 | ZHHXDZ | SOT-363 | 4,800 | ₹5.56 · 4,800 in stock | View |
