PJSEMIDatasheet (PDF)

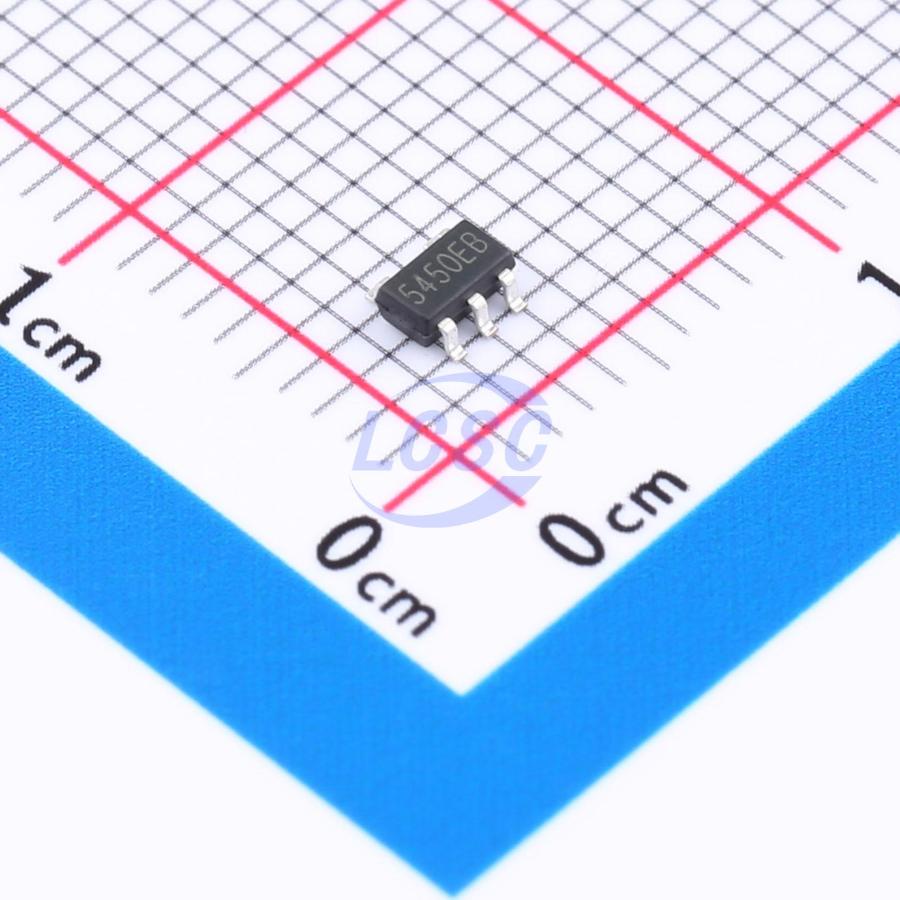

PJ54BM50SE
5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
Low Dropout Regulators
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJ54BM50SE
- Store part #
- C20618189
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,560 in stock
#C20618189
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.63 | ₹73.15 |
| 50+ | ₹11.43 | ₹571.50 |
| 150+ | ₹9.82 | ₹1,473.00 |
| 500+ | ₹8.62 | ₹4,310.00 |
| 3,000+ | ₹7.66 | ₹22,980.00 |
| 6,000+ | ₹7.18 | ₹43,080.00 |
5 × ₹14.63
₹73.15
excl. GST
₹86.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PJ54BM50SE
₹73.15 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2.1uA
- Output Configuration
- Positive
- Operating Voltage
- 45V
- Output Current
- 350mA
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
The PJ54B Series is a high input voltage, low quiescent current, low-dropout linear regulator able to provide 300mA load current. The LDO features very fast response against line voltage transient and load current transient, and ensures no overshoot voltage during the LDO start up and short circuit recovery. The device features integrated short-circuit and thermal shutdown protection.
Applications
- Battery-Powered Equipment
- Smoke Detector and Sensor
- Micro Controller Applications
Key features
- Low Quiescent Current: 2.1uA
- High Input Voltage Rating: Up to 55V
- Maximum Output Current: 350mA
- Low Dropout: 350mV @ 100mA
- High PSRR: 85dB at 1KHz
- Fixed Output Voltages: 1.8V, 3V, 3.3V, 5V
- Fast Transient Response
- Current Limiting Protection
- Thermal Shutdown Protection
- Available Packages: SOT-23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PJ54DM50SE#C41367946PJSEMI · SOT-23-5 | PJSEMI | SOT-23-5 | 2,675 | ₹14.12 · 2,675 in stock | View |
 | PJ54M50SE#C41784039PJSEMI · SOT-23-5 | PJSEMI | SOT-23-5 | 1,245 | ₹12.76 · 1,245 in stock | View |
