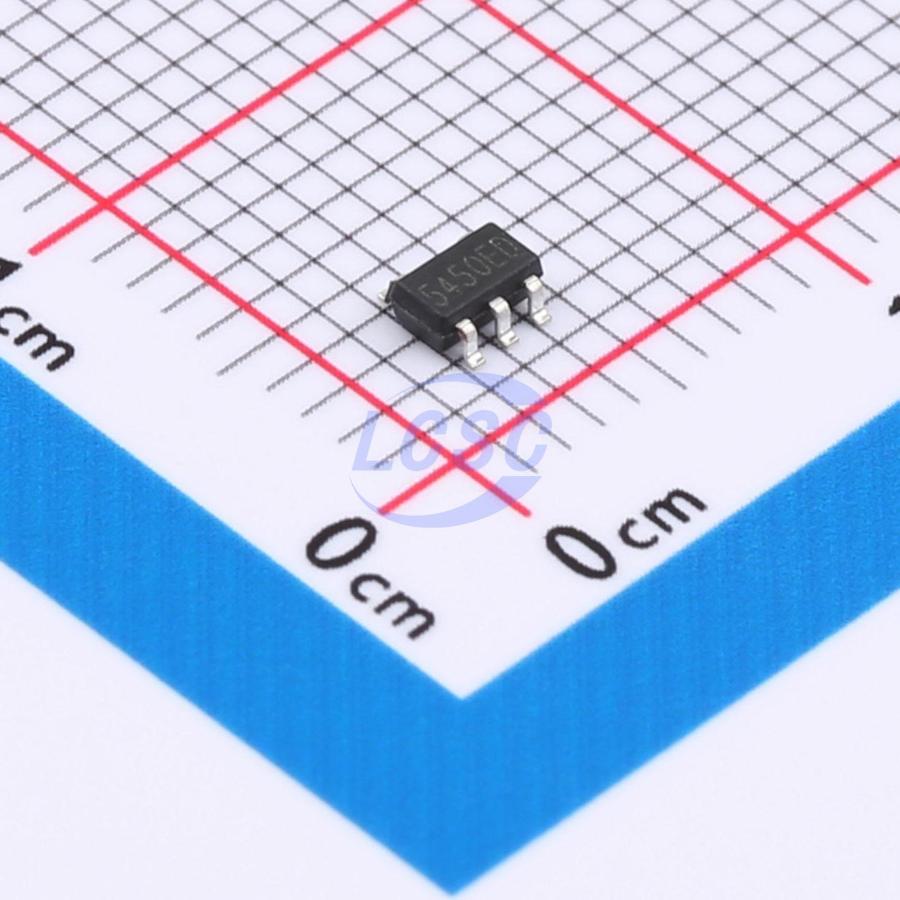

PJ54DM50SE
5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
Low Dropout Regulators
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJ54DM50SE
- Store part #
- C41367946
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,675 in stock
#C41367946
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.12 | ₹70.60 |
| 50+ | ₹11.17 | ₹558.50 |
| 150+ | ₹9.69 | ₹1,453.50 |
| 500+ | ₹8.58 | ₹4,290.00 |
| 3,000+ | ₹7.69 | ₹23,070.00 |
| 6,000+ | ₹7.25 | ₹43,500.00 |
5 × ₹14.12
₹70.60
excl. GST
₹83.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PJ54DM50SE
₹70.60 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.1uA
- Output Configuration
- Positive
- Operating Voltage
- 45V
- Output Current
- 350mA
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The PJ54D Series is a high input voltage, low quiescent current, low-dropout linear regulator able to provide 300mA load current.
Applications
- Battery-Powered Equipment
- Smoke Detector and Sensor
- Micro Controller Applications
Key features
- Low Quiescent Current: 2.1uA
- High Input Voltage Rating: Up to 55V
- Maximum Output Current: 350mA
- Low Dropout: 350mV @ 100mA
- High PSRR: 85dB at 1KHz
- Fixed Output Voltages: 1.8V, 3V, 3.3V, 5V
- Fast Transient Response
- Current Limiting Protection
- Thermal Shutdown Protection
- Available Packages: SOT-23-5
