PJSEMIDatasheet (PDF)

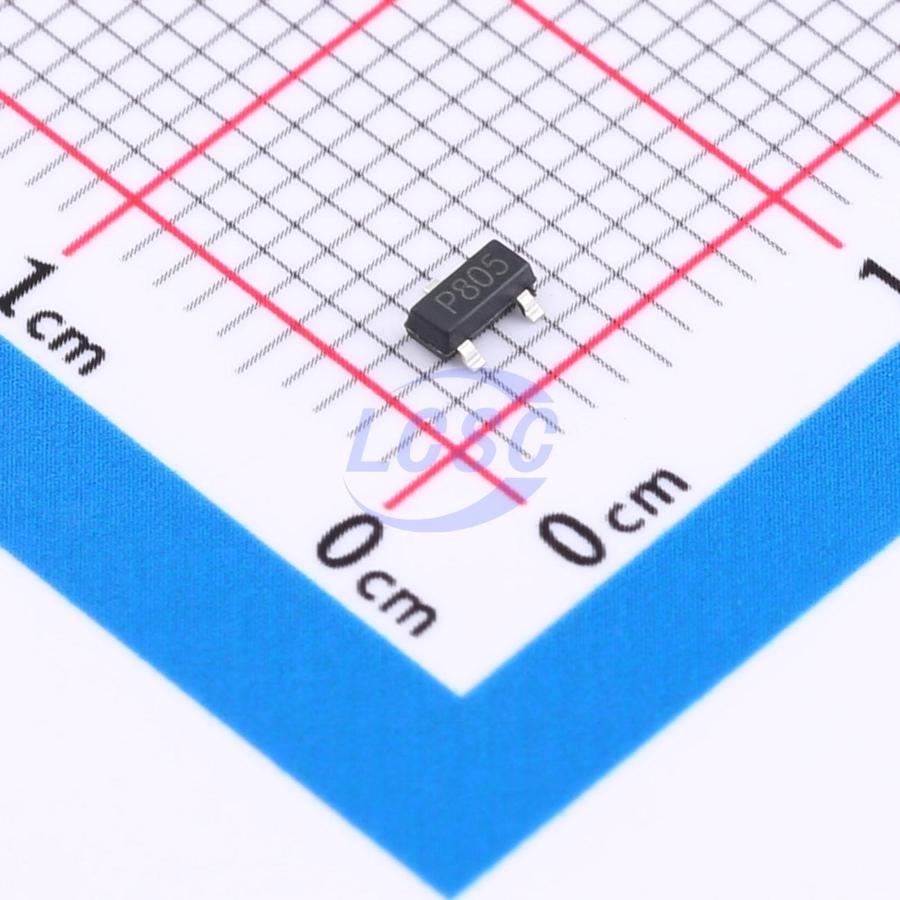

PJ78L05SA
5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
3-Terminal Voltage Regulators
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJ78L05SA
- Store part #
- C411751
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,010 in stock
#C411751
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.81 | ₹68.10 |
| 100+ | ₹5.34 | ₹534.00 |
| 300+ | ₹4.62 | ₹1,386.00 |
| 3,000+ | ₹4.07 | ₹12,210.00 |
| 6,000+ | ₹3.64 | ₹21,840.00 |
| 9,000+ | ₹3.41 | ₹30,690.00 |
10 × ₹6.81
₹68.10
excl. GST
₹80.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PJ78L05SA
₹68.10 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 5.5mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
The PJ78LXXSA series of fixed voltage monolithic integrated circuit voltage three-terminal positive regulators are suitable for applications that required supply up to 100 mA.
Applications
- TV Board
- Air Conditioner
- Charging Device
Key features
- Input voltage: 30V (VOUT = 5~10V); 35V (VOUT = 12~15V)
- Output voltage: 5V, 6V, 8V, 9V, 10V, 12V, 15V
- Output current up to 100 mA
- Thermal overload protection
- Short circuit current limiting
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PJ78S05SC#C41413549PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | 370 | ₹9.16 · 370 in stock | View |
 | PJ75CL50SC#C41348033PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | 3,440 | ₹9.70 · 3,440 in stock | View |
 | PJ72AL50SC#C41413557PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | 370 | ₹8.67 · 370 in stock | View |
 | PJ75BL50SC#C41348031PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | 150 | ₹8.67 · 150 in stock | View |
 | PJ56L50SC#C23376662PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | 3,935 | ₹18.64 · 3,935 in stock | View |
