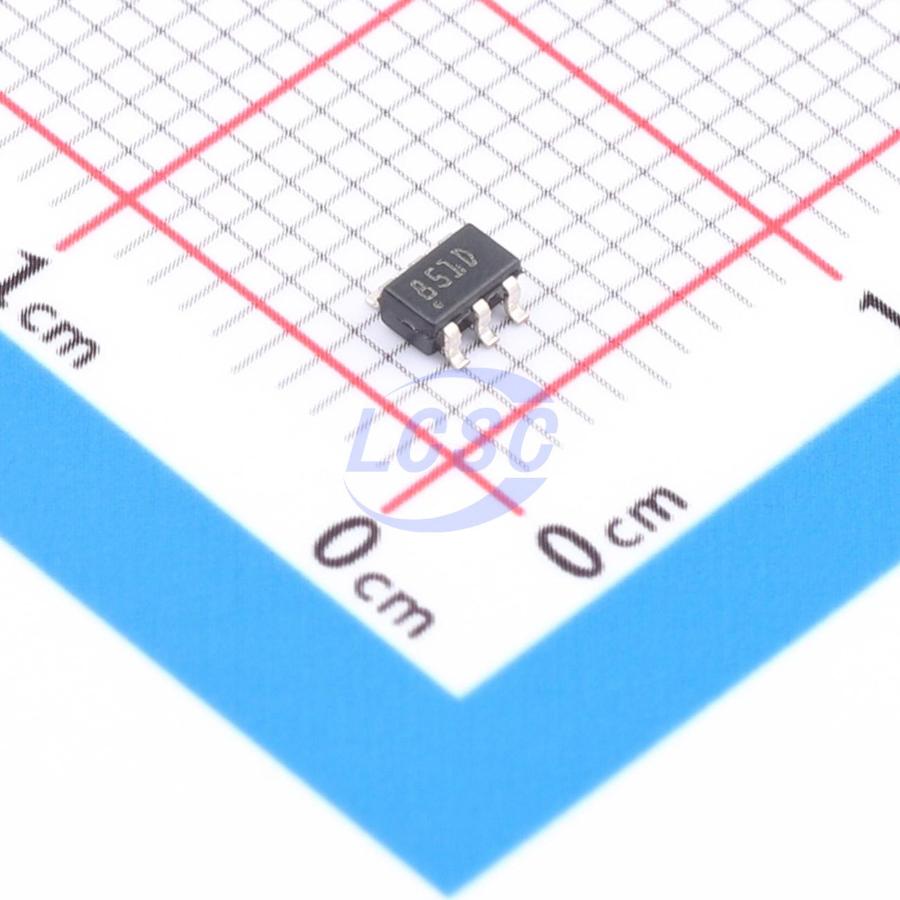

PM8851D
10V~18V 1A 800mA SOT-23-6 Gate Drivers RoHS
A low-side gate driver with configurable asymmetric sink/source
- Manufacturer
- ST
- Manufacturer part #
- PM8851D
- Store part #
- C2971234
- Package / case
- SOT-23-6
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,026 in stock
#C2971234
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.69 | ₹84.69 |
| 10+ | ₹74.96 | ₹749.60 |
| 30+ | ₹70.00 | ₹2,100.00 |
| 100+ | ₹65.03 | ₹6,503.00 |
| 500+ | ₹62.01 | ₹31,005.00 |
| 1,000+ | ₹60.49 | ₹60,490.00 |
1 × ₹84.69
₹84.69
excl. GST
₹99.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PM8851D
₹84.69 for 1 + GST
Specifications
- Low Level Delay Time
- 30ns
- High Level Delay Time
- 30ns
- Quiescent Current
- 40uA
- Voltage - Supply
- 10V~18V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 1A
- Rise Time
- 20ns
- Fall Time
- 20ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 800mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.051 g
Overview
The PM8851 device is a high frequency single channel low-side MOSFET driver specifically designed to work with digital power conversion microcontrollers, such as the STMicroelectronics STLUX family of products. The PM8851 has complementary output pins to differentiate sink and source driving with a current capability of respectively 1 A and 0.8 A. The input levels of the driver are derived by the voltage present at the IN_TH pin (between 2 V and 5.5 V). This pin is typically connected at the same voltage of the microcontroller supply voltage. The PM8851 includes both input and output pulldown resistors. UVLO circuitry for input and output stages is present preventing the IC from driving external MOSFET in unsafe condition.
Applications
- SMPS
- Digital lighting
- Wireless battery chargers
- Digitally controlled MOSFETs
Key features
- Low-side MOSFET driver 1 A sink and 0.8 A source capability
- Complementary outputs for source and sink driving
- Ext. reference for input threshold
- Wide supply voltage range (10 - 18 V)
- Input and output pull-down resistors
- Short propagation delays
- Input and output UVLO
- Wide operating temperature range: -40 °C to 125 °C
- SOT23-6L package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1ED44173N01BXTSA1#C1513367Infineon · SOT-23-6 | Infineon | SOT-23-6 | 279 | ₹158.92 · 279 in stock | View |
