VBsemi ElecDatasheet (PDF)

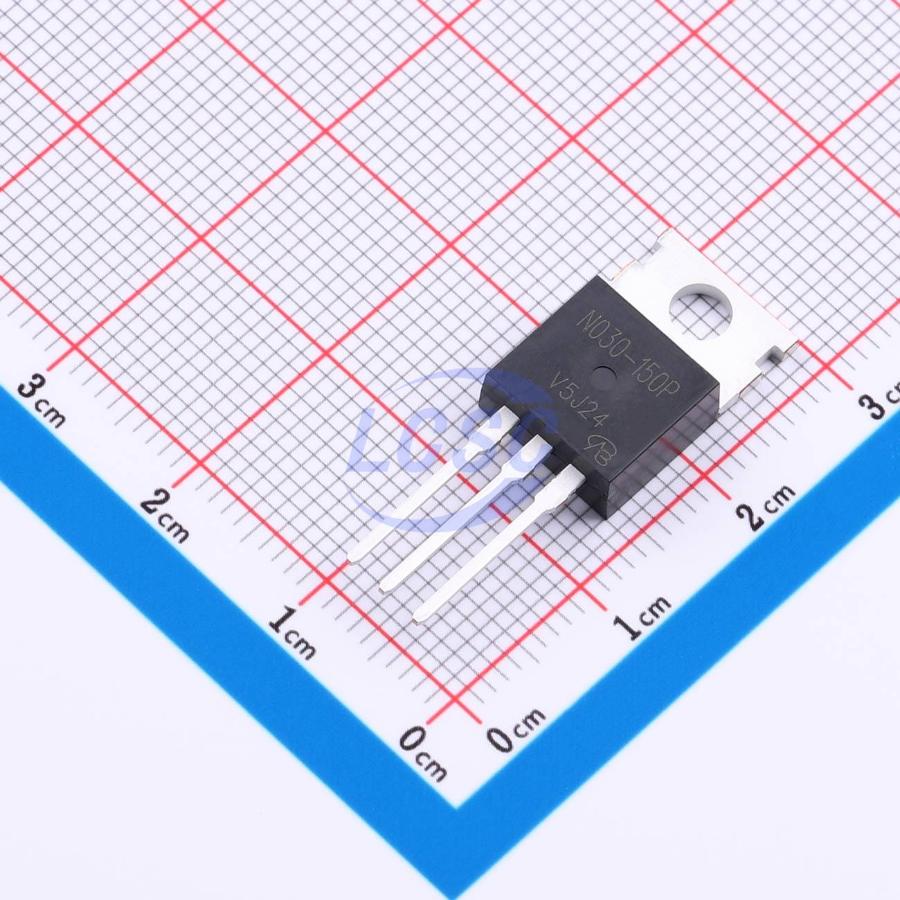

PSMN030-150P,127-VB
166W 150V 50A 30mΩ@10V 1 N-channel N-Channel TO-220AB Single FETs, MOSFETs
TO-220ABRoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PSMN030-150P,127-VB
- Store part #
- C52191072
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C52191072
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹208.99 | ₹208.99 |
| 10+ | ₹174.38 | ₹1,743.80 |
| 50+ | ₹155.44 | ₹7,772.00 |
| 100+ | ₹133.89 | ₹13,389.00 |
| 500+ | ₹124.31 | ₹62,155.00 |
| 1,000+ | ₹120.17 | ₹1,20,170.00 |
1 × ₹208.99
₹208.99
excl. GST
₹246.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
PSMN030-150P,127-VB
₹208.99 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 290pF
- Ciss-Input Capacitance
- 2.5nF
- Pd - Power Dissipation
- 166W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 190pF
- RDS(on)
- 30mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.2 g
Overview
Applications
- Primary-side switch
- N-channel MOSFET
Key features
- Trench power MOSFET
- 175°C junction temperature
- New low thermal resistance package
- PWM optimized
- RoHS compliant with directive 2002/95/EC
