YAGEODatasheet (PDF)

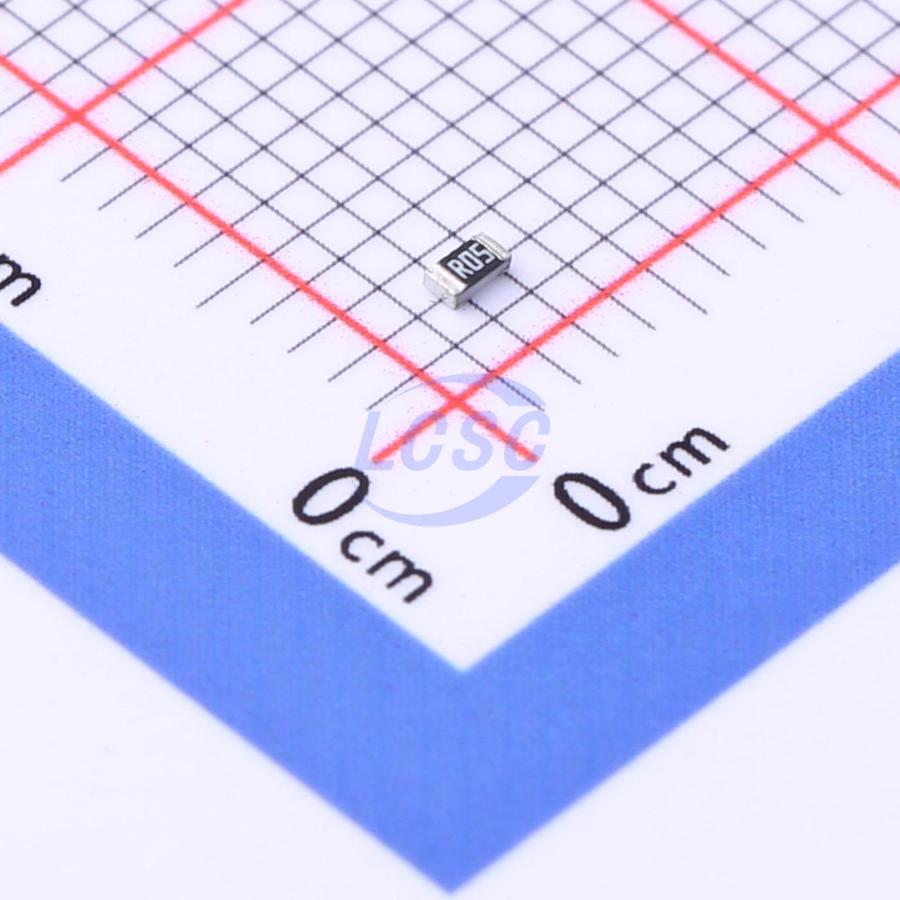

PT0603FR-070R05L
50mΩ 100mW Thick Film Resistor ±1% 0ppm/℃~+400ppm/℃ 0603 Chip Resistor - Surface Mount RoHS
0603ROHS3 CompliantActive
RES 0.05Ω ±1% 1/10W 0603
- Manufacturer
- YAGEO
- Manufacturer part #
- PT0603FR-070R05L
- Store part #
- C2936598
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,820 in stock
#C2936598
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.49 | ₹109.80 |
| 200+ | ₹4.58 | ₹916.00 |
| 600+ | ₹4.07 | ₹2,442.00 |
| 5,000+ | ₹3.77 | ₹18,850.00 |
| 10,000+ | ₹3.52 | ₹35,200.00 |
| 20,000+ | ₹3.37 | ₹67,400.00 |
20 × ₹5.49
₹109.80
excl. GST
₹129.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT0603FR-070R05L
₹109.80 for 20 + GST
Specifications
- Resistance
- 50mΩ
- Power(Watts)
- 100mW
- Type
- Thick Film Resistor
- Tolerance
- ±1%
- Temperature Coefficient
- 0ppm/℃~+400ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.023 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WW06WR050FTL#C55250264Walsin · 0603 | Walsin | 0603 | 4,580 | ₹4.45 · 4,580 in stock | View |
 | CS03W5F500MT5E#C473945UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 1,200 | ₹5.13 · 1,200 in stock | View |
 | ERJL03KF50MV#C713440PANASONIC · 0603 | PANASONIC | 0603 | 4,065 | ₹15.62 · 4,065 in stock | View |
 | MFL0603R0500FA#C6666263EATON · 0603 | EATON | 0603 | 25 | ₹10.91 · 25 in stock | View |
 | PT0603FR-7W0R05L#C784595YAGEO · 0603 | YAGEO | 0603 | On request | ₹6.54 · 0 in stock | View |
