YAGEO

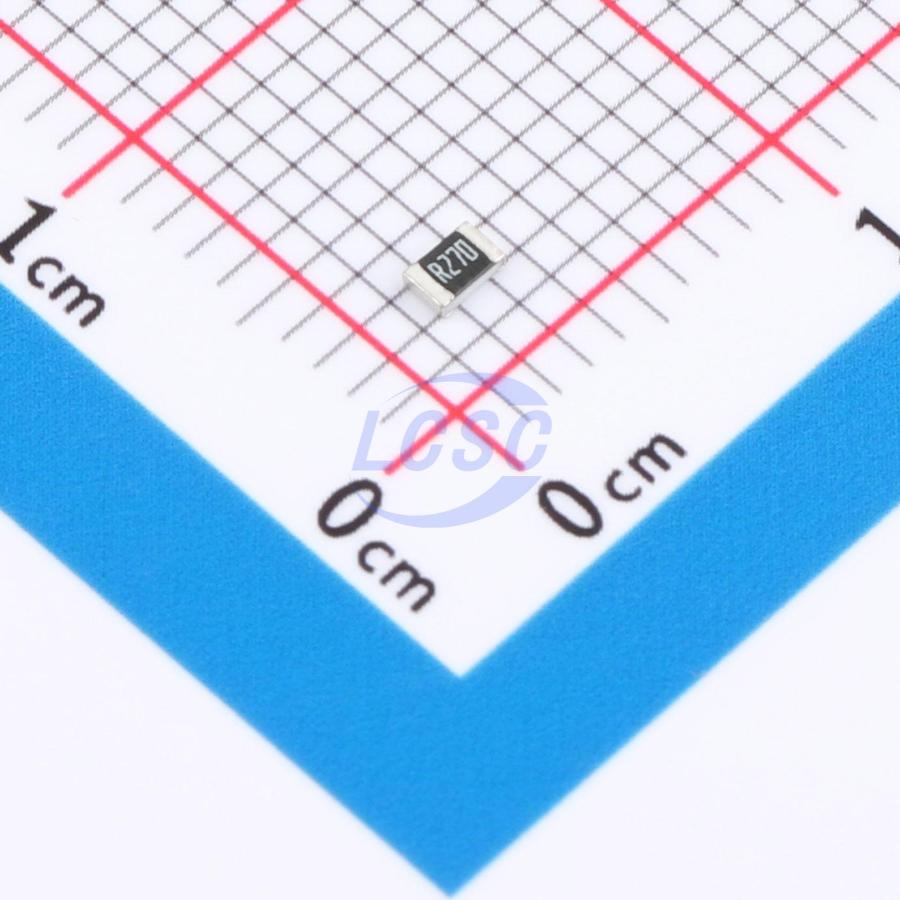

PT0805FR-070R27L

125mW 270mΩ Thick Film Resistor ±100ppm/℃ ±1% 0805 Chip Resistor - Surface Mount RoHS

0805ROHS3 CompliantActive

RES 0.27Ω ±1% 125mW 0805

Manufacturer: YAGEO
Manufacturer part #: PT0805FR-070R27L
Store part #: C858699
Package / case: 0805
Category: Chip Resistor - Surface Mount
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,800 in stock

#C858699

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
50+	₹2.65	₹132.50
500+	₹2.08	₹1,040.00
1,500+	₹1.77	₹2,655.00
5,000+	₹1.57	₹7,850.00
25,000+	₹1.42	₹35,500.00
50,000+	₹1.32	₹66,000.00

Quantity (min 50, multiples of 50)

50 × ₹2.65

₹132.50

excl. GST

₹156.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

PT0805FR-070R27L

₹132.50 for 50 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Power(Watts): 125mW
Resistance: 270mΩ
Operating Temperature: -55℃~+155℃
Type: Thick Film Resistor
Temperature Coefficient: ±100ppm/℃
Tolerance: ±1%

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 50 (multiples of 50)
Unit weight: 0.03 g

Overview

This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.

Applications

Converters
Printer equipment
Server boards
Telecommunications
Consumer electronics
Automotive electronics

Key features

AEC-Q200 qualified
Halogen-free epoxy
RoHS compliant
Environmentally friendly
High component and device reliability
Non-prohibited materials in product/production
Low resistance for current sensing
Moisture Sensitivity Level: MSL I

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
PT0805FR-7W0R27L#C2135707YAGEO · 0805	YAGEO	0805	2,020	₹3.29 · 2,020 in stock	View
WW08WR270FTL#C171374Walsin · 0805	Walsin	0805	3,800	₹0.8996 · 3,800 in stock	View
CR0805FR270P05Z#C175711EVER OHMS · 0805	EVER OHMS	0805	500	₹1.02 · 500 in stock	View
FRL0805FR270TS#C2934263FOJAN · 0805	FOJAN	0805	7,800	₹0.807 · 7,800 in stock	View
0805W8F270LT5E#C47782UNI-ROYAL · 0805	UNI-ROYAL	0805	4,600	₹0.979 · 4,600 in stock	View
