YAGEODatasheet (PDF)

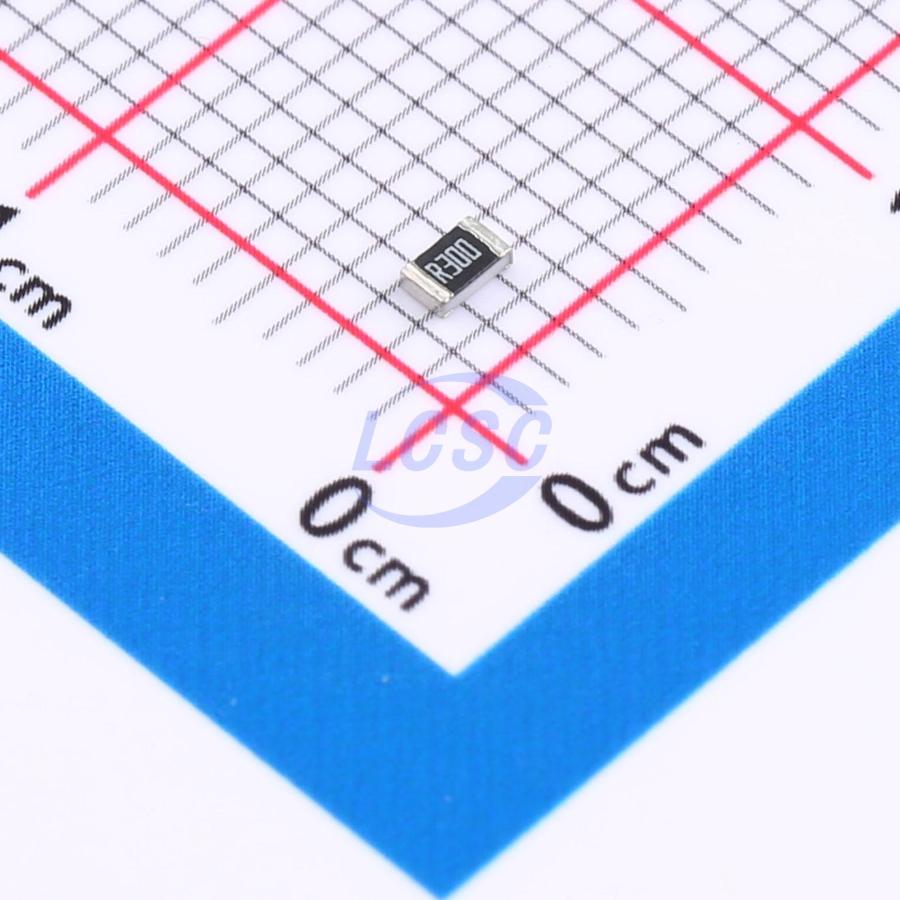

PT0805FR-7W0R3L
300mΩ 250mW Thick Film Resistor ±100ppm/℃ ±1% 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 0.3Ω ±1% 250mW 0805
- Manufacturer
- YAGEO
- Manufacturer part #
- PT0805FR-7W0R3L
- Store part #
- C6737831
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,880 in stock
#C6737831
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.50 | ₹55.00 |
| 100+ | ₹4.37 | ₹437.00 |
| 300+ | ₹3.78 | ₹1,134.00 |
| 1,000+ | ₹3.36 | ₹3,360.00 |
| 5,000+ | ₹3.02 | ₹15,100.00 |
| 10,000+ | ₹2.84 | ₹28,400.00 |
10 × ₹5.50
₹55.00
excl. GST
₹64.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT0805FR-7W0R3L
₹55.00 for 10 + GST
Specifications
- Resistance
- 300mΩ
- Power(Watts)
- 250mW
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ERJ-6DQFR30V#C4268065PANASONIC · 0805 | PANASONIC | 0805 | 2,505 | ₹15.35 · 2,505 in stock | View |
 | ERJ-U6QFR30V#C2078950PANASONIC · 0805 | PANASONIC | 0805 | 3,585 | ₹23.85 · 3,585 in stock | View |
| CRL0805-FW-R300ELF#C49674701BOURNS · 0805 | BOURNS | 0805 | 60 | ₹11.80 · 60 in stock | View | |
| RCWE0805R300FKEA#C4120304VISHAY · 0805 | VISHAY | 0805 | On request | Price on request | Quote | |
| CRM0805AFX-R300ELF#C6538200BOURNS · 0805 | BOURNS | 0805 | On request | Price on request | Quote | |
