YAGEODatasheet (PDF)

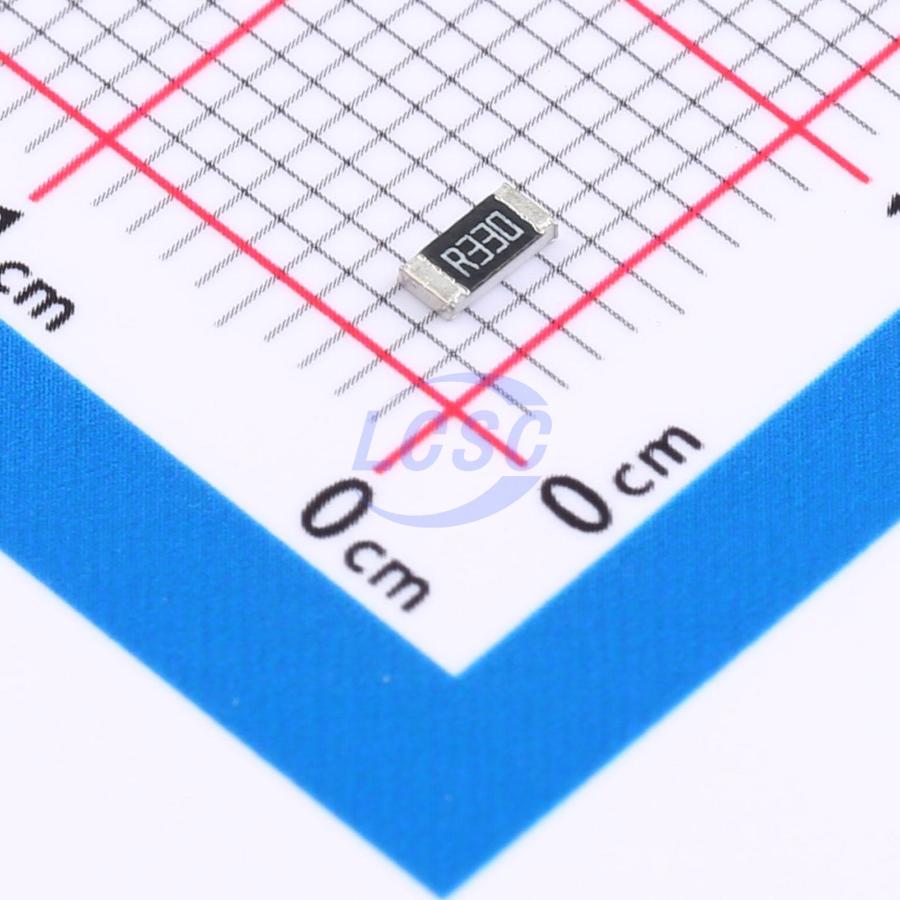

PT1206FR-070R33L
250mW 330mΩ Thick Film Resistor ±75ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 0.33Ω ±1% 250mW 1206
- Manufacturer
- YAGEO
- Manufacturer part #
- PT1206FR-070R33L
- Store part #
- C858751
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
360 in stock
#C858751
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.50 | ₹90.00 |
| 200+ | ₹3.69 | ₹738.00 |
| 600+ | ₹3.24 | ₹1,944.00 |
| 5,000+ | ₹2.96 | ₹14,800.00 |
| 10,000+ | ₹2.73 | ₹27,300.00 |
| 20,000+ | ₹2.61 | ₹52,200.00 |
20 × ₹4.50
₹90.00
excl. GST
₹106.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PT1206FR-070R33L
₹90.00 for 20 + GST
Specifications
- Power(Watts)
- 250mW
- Resistance
- 330mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PT1206FR-7W0R33L#C858786YAGEO · 1206 | YAGEO | 1206 | 480 | ₹8.15 · 480 in stock | View |
 | 1206W4F330LT5E#C25337UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 43,850 | ₹1.69 · 43,850 in stock | View |
 | FRL1206FR330TS#C2907351FOJAN · 1206 | FOJAN | 1206 | 3,60,000 | ₹0.9261 · 3,60,000 in stock | View |
 | GR1206F0R33T5G00#C49656778GiantOhm · 1206 | GiantOhm | 1206 | 2,200 | ₹0.5557 · 2,200 in stock | View |
 | CS06W3F330LT5E#C2765728UNI-ROYAL · 1206 | UNI-ROYAL | 1206 | 80 | ₹2.53 · 80 in stock | View |
