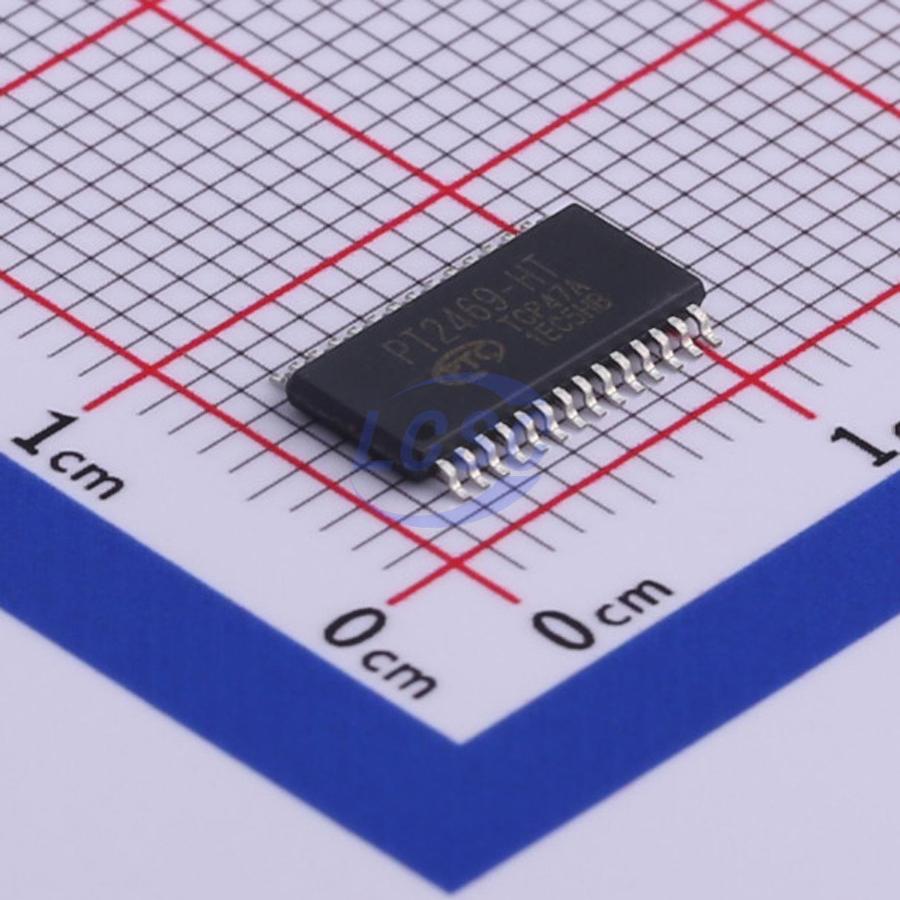

PT2469
TSSOP-28-EP Motor Drivers, Controllers
Dual-Bridge Motor Controller IC
- Manufacturer
- PTC
- Manufacturer part #
- PT2469
- Store part #
- C481974
- Package / case
- TSSOP-28-EP
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,486 in stock
#C481974
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.86 | ₹114.86 |
| 10+ | ₹94.20 | ₹942.00 |
| 30+ | ₹83.97 | ₹2,519.10 |
| 100+ | ₹73.74 | ₹7,374.00 |
| 500+ | ₹67.43 | ₹33,715.00 |
| 1,000+ | ₹64.39 | ₹64,390.00 |
1 × ₹114.86
₹114.86
excl. GST
₹135.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PT2469
₹114.86 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Overcurrent Protection;Over temperature protection;Under-voltage lockout;Built-in charge pump;Dead-time / shoot-through protection
- Technology
- Yes
- Interface
- Parallel
- Operating Temperature
- -40℃~+85℃
- Output Current
- 1.6A
- RDS(on)
- 630mΩ
- Motor Drive Voltage(Vm)
- 8.2V~45V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.352 g
Overview
The PT2469 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers, and can drive a bipolar stepper motor or two DC motors. The output driver block for each consists of N-channel power MOSFET’s configured as full H - bridges to drive the motor windings. The PT2469 is capable of driving up to 1.6 - A of output current (with proper heatsinking, at 24V and 25°C). A simple parallel digital control interface is compatible with industry - standard devices. Decay mode is programmable. The PT2469 is available in a 28 - pin HTSSOP package with thermal pad and in a 28 - pin QFN package thermal pad.
Applications
- Automatic Teller Machines
- Money Handling Machines
- Video Security Cameras
- Printers
- Scanners
- Office Automation Machines
- Gaming Machines
- Factory Automation
- Robotics
Key features
- 8.2V to 45V Operating Supply Voltage Range
- 1.6 - A Maximum Drive Current at 24V and TA = 25°C
- Industry Standard Parallel Digital Control Interface
- Low Current Sleep Mode
- Built In 3.3 - V Reference Output
- Small Package and Footprint
- Dual H - Bridge Current Control Motor Driver
- Drive a Bipolar Stepper or Two DC Motors
- Four Level Winding Current Control
- Multiple Decay Modes
- Mixed Decay
- Slow Decay
- Fast Decay
- Protection Features
- Overcurrent Protection (OCP)
- Thermal Shutdown (TSD)
- VM Undervoltage Lockout (UVLO)
- Fault Condition Indication Pin (nFAULT)
