YAGEODatasheet (PDF)

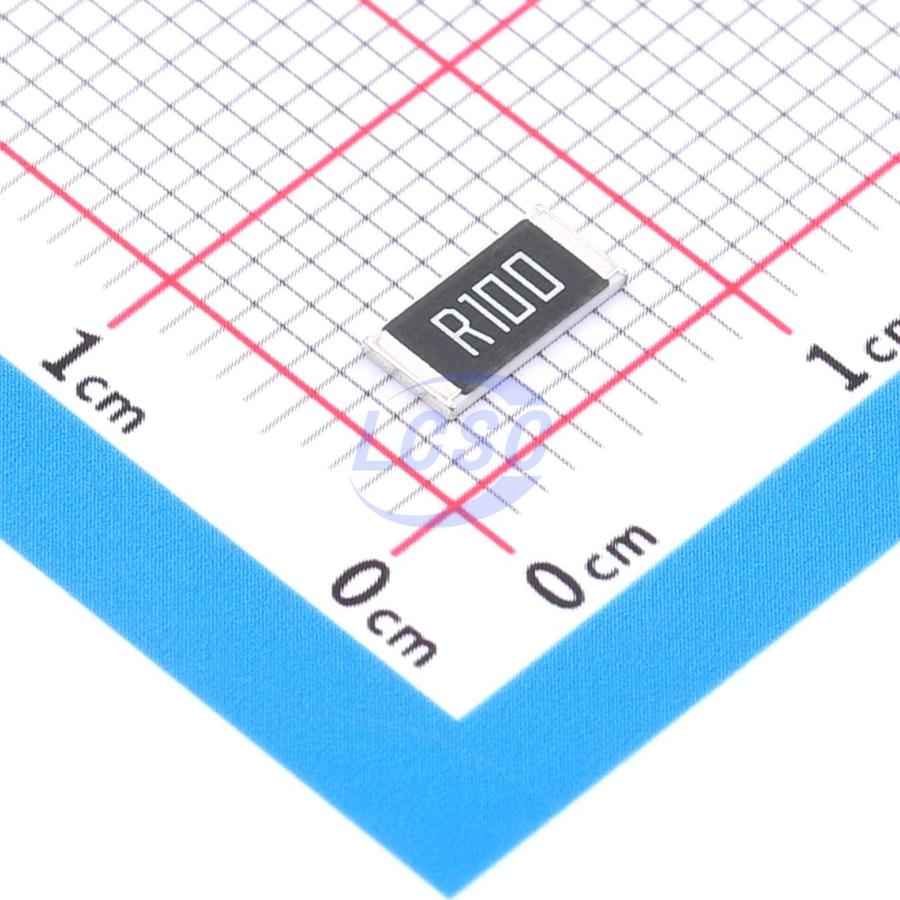

PT2512FK-070R1L
1W 100mΩ Thick Film Resistor ±100ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 0.1Ω ±1% 1W 2512
- Manufacturer
- YAGEO
- Manufacturer part #
- PT2512FK-070R1L
- Store part #
- C875838
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,000 in stock
#C875838
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.41 | ₹107.05 |
| 50+ | ₹16.92 | ₹846.00 |
| 150+ | ₹15.00 | ₹2,250.00 |
| 500+ | ₹12.61 | ₹6,305.00 |
| 2,500+ | ₹11.54 | ₹28,850.00 |
| 4,000+ | ₹10.90 | ₹43,600.00 |
5 × ₹21.41
₹107.05
excl. GST
₹126.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PT2512FK-070R1L
₹107.05 for 5 + GST
Specifications
- Power(Watts)
- 1W
- Resistance
- 100mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.062 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RCWE2512R100FKEA#C2093721VISHAY · 2512 | VISHAY | 2512 | 511 | ₹94.44 · 511 in stock | View |
 | PT2512FK-7W0R1L#C309534YAGEO · 2512 | YAGEO | 2512 | 1,550 | ₹25.56 · 1,550 in stock | View |
 | CRM2512-FX-R100ELF#C840603BOURNS · 2512 | BOURNS | 2512 | 8,535 | ₹34.11 · 8,535 in stock | View |
 | ERJ1TRSFR10U#C22891740PANASONIC · 2512 | PANASONIC | 2512 | 200 | ₹194.71 · 200 in stock | View |
 | 25121WF100LT4E#C25466UNI-ROYAL · 2512 | UNI-ROYAL | 2512 | 48,660 | ₹7.18 · 48,660 in stock | View |
