YAGEODatasheet (PDF)

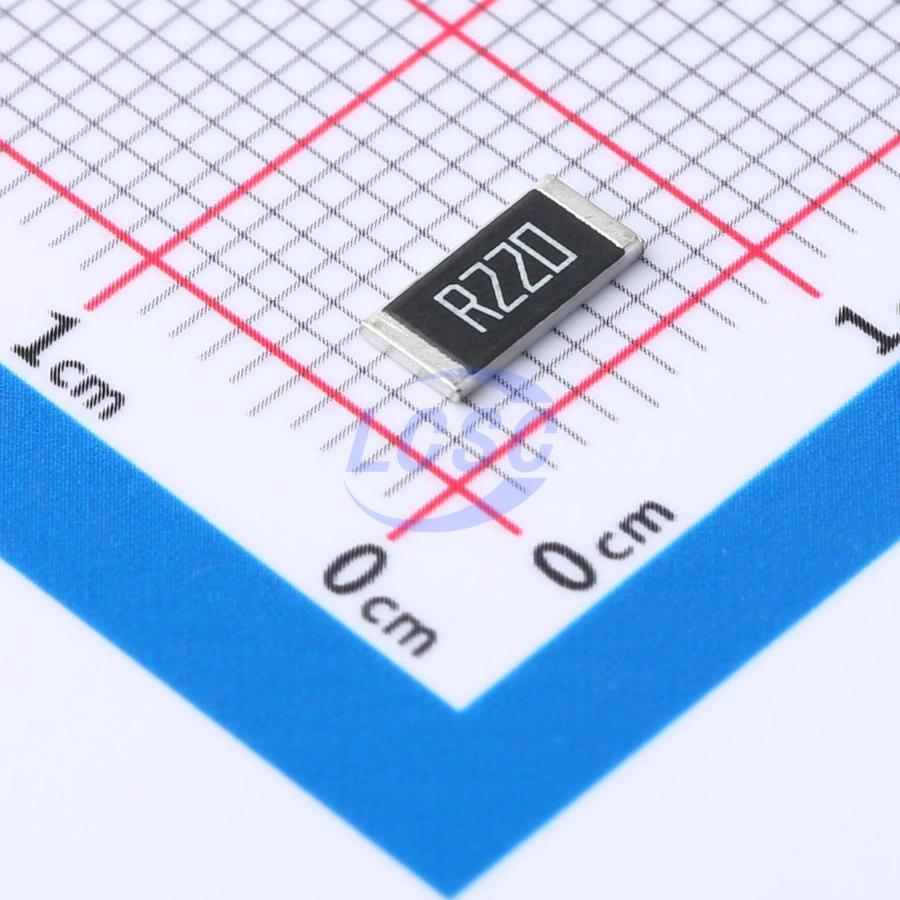

PT2512FK-070R22L
1W 220mΩ Thick Film Resistor ±75ppm/℃ ±1% 2512 Chip Resistor - Surface Mount RoHS
2512ROHS3 CompliantActive
RES 0.22Ω ±1% 1W 2512
- Manufacturer
- YAGEO
- Manufacturer part #
- PT2512FK-070R22L
- Store part #
- C875839
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,250 in stock
#C875839
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.84 | ₹119.20 |
| 50+ | ₹19.82 | ₹991.00 |
| 150+ | ₹17.81 | ₹2,671.50 |
| 500+ | ₹16.30 | ₹8,150.00 |
| 2,500+ | ₹15.10 | ₹37,750.00 |
| 4,000+ | ₹14.49 | ₹57,960.00 |
5 × ₹23.84
₹119.20
excl. GST
₹140.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PT2512FK-070R22L
₹119.20 for 5 + GST
Specifications
- Power(Watts)
- 1W
- Resistance
- 220mΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±75ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.065 g
Overview
This specification describes the PT series low TCR high power current sensing resistors with lead-free terminations, manufactured using thick film technology.
Applications
- Converters
- Printer equipment
- Server boards
- Telecommunications
- Consumer electronics
- Automotive electronics
Key features
- AEC-Q200 qualified
- Halogen-free epoxy
- RoHS compliant
- Environmentally friendly
- High component and device reliability
- Non-prohibited materials in product/production
- Low resistance for current sensing
- Moisture Sensitivity Level: MSL I
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PT2512FK-7W0R22L#C875875YAGEO · 2512 | YAGEO | 2512 | 3,045 | ₹22.69 · 3,045 in stock | View |
 | CR2512FR220E04R#C165325EVER OHMS · 2512 | EVER OHMS | 2512 | 20 | ₹8.30 · 20 in stock | View |
 | FRL2512FR220TS#C2960770FOJAN · 2512 | FOJAN | 2512 | 20 | ₹8.20 · 20 in stock | View |
| ERJ-1TRQFR22U#C4219299PANASONIC · 2512 | PANASONIC | 2512 | On request | Price on request | Quote | |
 | GR2512F0R22T4G00#C49655556GiantOhm · 2512 | GiantOhm | 2512 | 80 | ₹3.85 · 80 in stock | View |
