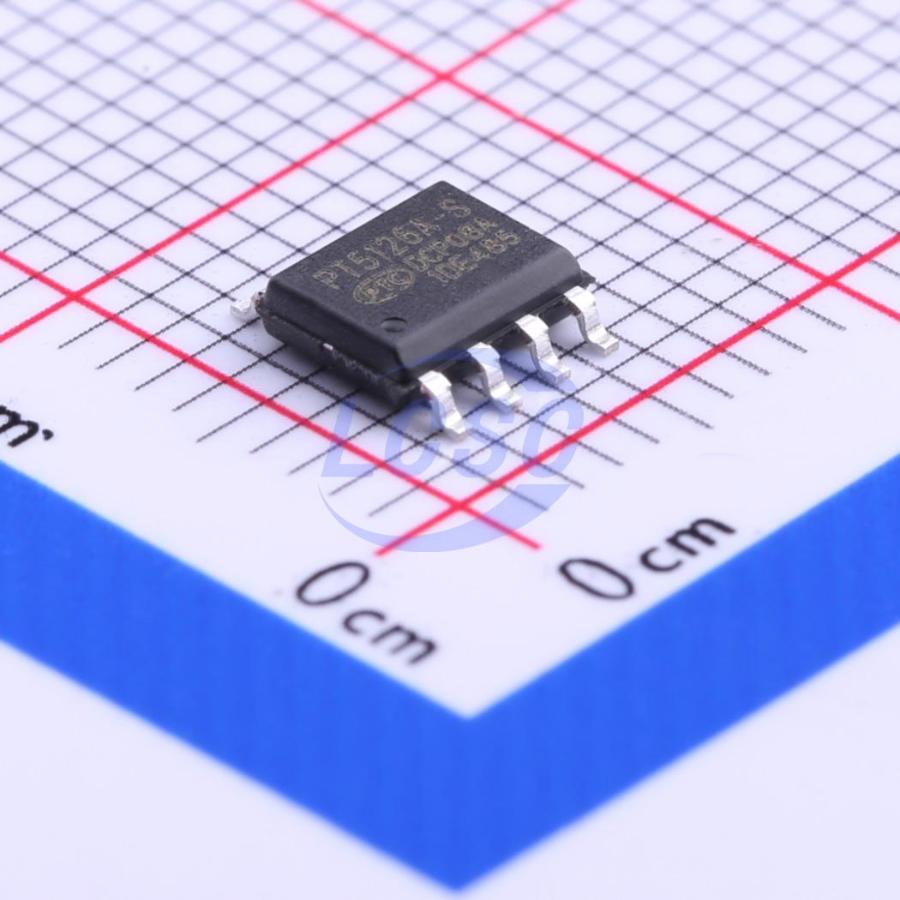

PT5126A-S-TP
2.7V~5.5V SOP-8 Motor Drivers, Controllers
SOP-8RoHSActive
1CH DC Motor Driver
- Manufacturer
- PTC
- Manufacturer part #
- PT5126A-S-TP
- Store part #
- C162093
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,092 in stock
#C162093
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.80 | ₹57.80 |
| 10+ | ₹45.19 | ₹451.90 |
| 30+ | ₹39.77 | ₹1,193.10 |
| 100+ | ₹33.04 | ₹3,304.00 |
| 500+ | ₹29.99 | ₹14,995.00 |
| 1,000+ | ₹28.25 | ₹28,250.00 |
1 × ₹57.80
₹57.80
excl. GST
₹68.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PT5126A-S-TP
₹57.80 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Voltage - Supply
- 2.7V~5.5V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 50nA
- Output Current
- 2.8A
- RDS(on)
- 640mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.336 g
Overview
The PT5126A is 1 Full-On Drive H-Bridge channel with two different packages. The driver features wide range operating from 2V to 24V and low power consumption by fast switching speed.
Applications
- Toys
- Lens for DSLR
- Auto icemaker or dumper drive for refrigerator
- HV bi-direction DC Motor
- Intelligent electronic lock
Key features
- It is low consumption by BCD process adoption
- Two different small packages: HSOP8, SOP8
- Wide power-supply voltage range:
- Control (VCC): 2.7V~5.5V
- Motor (VM): 2.0V~24V
- High DC output current: Max. = 2.8A
- Ultra low RDSON (TOP+BOT): 0.51 Ω (TYP @ 25°C), 1A for HSOP8; 0.64 Ω (TYP @ 25°C), 1A for SOP8
- Low current consumption when power-down: < 0.05 μA @ 25°C
- PWM control, Max. input frequency: 200KHz
- Operating temperature range: -40~+85°C
- Charge-pump less
- Shoot-through current protection
- Built-in protection circuits:
- Under voltage lock out
- Thermal shut down
