TIDatasheet (PDF)

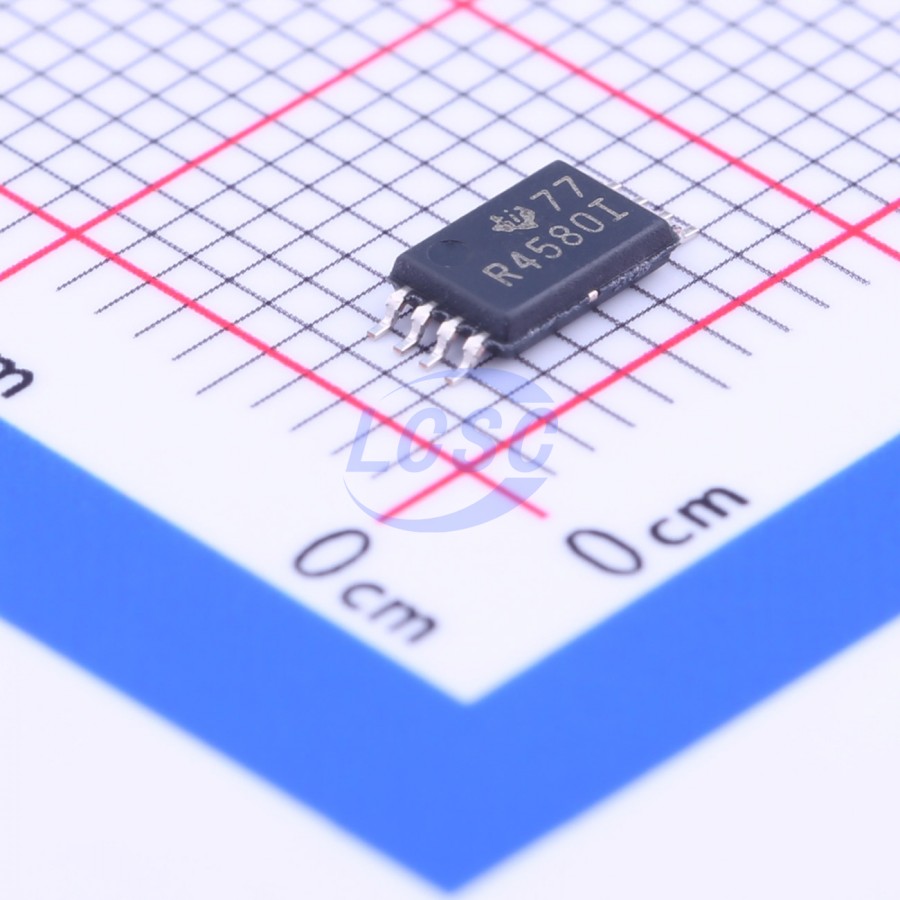

RC4580IPWR
6mA 2-Channel TSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-8ROHS3 CompliantActive
Dual Audio Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- RC4580IPWR
- Store part #
- C201538
- Package / case
- TSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,860 in stock
#C201538
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.78 | ₹193.90 |
| 50+ | ₹31.17 | ₹1,558.50 |
| 150+ | ₹27.90 | ₹4,185.00 |
| 500+ | ₹23.83 | ₹11,915.00 |
| 2,000+ | ₹22.01 | ₹44,020.00 |
| 4,000+ | ₹20.93 | ₹83,720.00 |
5 × ₹38.78
₹193.90
excl. GST
₹228.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
RC4580IPWR
₹193.90 for 5 + GST
Specifications
- Quiescent Current
- 6mA
- Total Harmonic Distortion + Noise (THD+N)
- 0.0005%
- Speaker Channels
- 2-Channel
- Voltage - Supply
- -16V~-2V;2V~16V
- Operating Temperature
- -40℃~+85℃
- Power Supply Rejection Ratio (PSRR)
- 110dB
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.179 g
Overview
The RC4580 device is a dual operational amplifier that has been designed optimally for audio applications, such as improving tone control. It offers low noise, high gain bandwidth, low harmonic distortion, and high output current, all of which make the device ideally suited for audio electronics, such as preamplifiers, active filters, and industrial measurement equipment. When high output current is required, the RC4580 device can be used as a headphone amplifier. Due to its wide operating supply voltage, the RC4580 device can also be used in lowvoltage applications.
Applications
- Audio Preamplifiers
- Active Filters
- Headphone Amplifiers
- Industrial Measurement Equipment
Key features
- ±2V to ±18V Operating Voltage
- 0.8-μVrms Low Noise Voltage
- 12-MHz Gain Bandwidth Product
- 0.0005% Total Harmonic Distortion
- 5-V/μs Slew Rate
- Drop-In Replacement for NJM4580
- Pin and Function Compatible with LM833, NE5532, NJM4558/9, and NJM4560/2/5 devices
