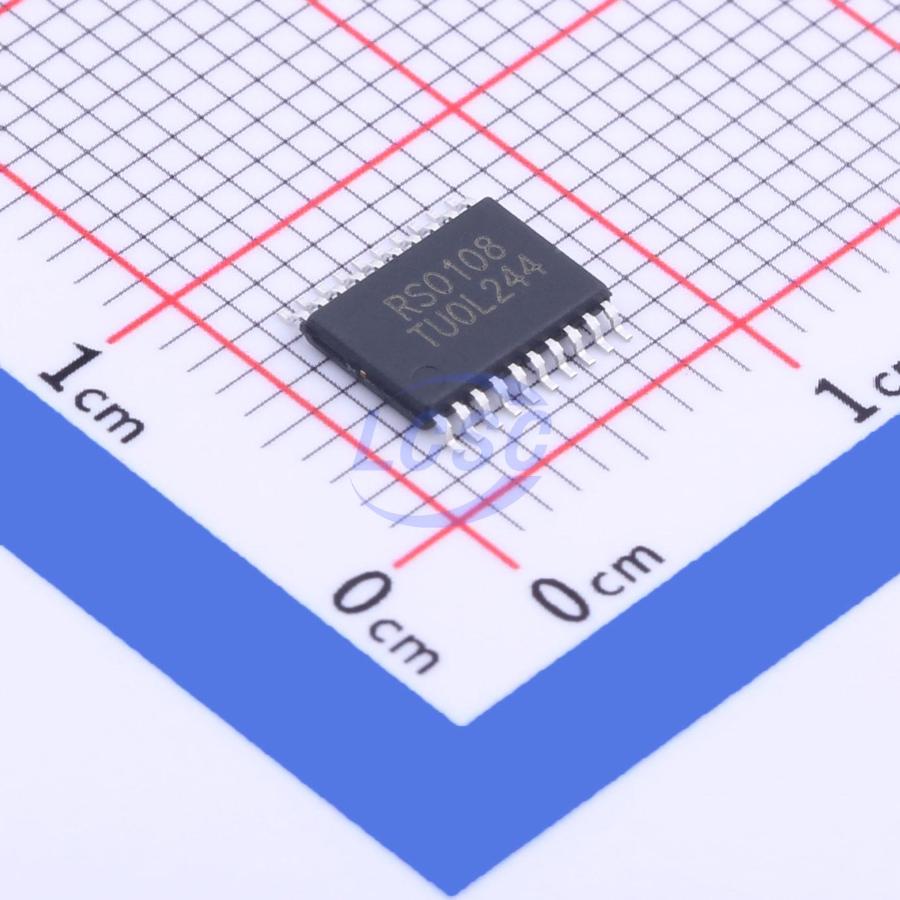

RS0108YQ20

This 8-bit non-inverting translator is a bidirectional voltagelevel translator and can be used to establish digital switching compatibility between mixed-voltage systems. It uses two separate configurable power-supply rails, with the A ports supporting operating voltages from 1.65V to 5.5V while it tracks the VCCA supply, and the B ports supporting operating voltages from 2.3V to 5.5V while it tracks the VCCB supply. This allows the support of both lower and higher logic signal levels while providing bidirectional translation capabilities between any of the 1.8V, 2.5V, 3.3V and 5V voltage nodes. When the output-enable (OE) input is low, all I/Os are placed in the high-impedance state, which significantly reduces the power-supply quiescent current consumption. OE has an internal pull-down current source, if VCCA is powered. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver. The RS0108 is available in Green QFN3*3-20L and TSSOP20 packages. It operates over an ambient temperature range of -40℃ to +85℃.

Applications

• Handset
• Smartphone
• Tablet
• Desktop PC

Key features

• No Direction-Control
• Data Rates
• 24Mbps (Push-Pull)
• 2Mbps (Open-Drain)
• 1.65V to 5.5V on A ports and 2.3V to 5.5V on B Ports (VCCA ≤ VCCB)
• ∀CC Isolation: If Either ∀CC is at GND, Both Ports are in the High-Impedance State
• No Power-Supply Sequencing Required: Either VCCA or VCCB can be Ramped First
• IOFF: Supports Partial-Power-Down Mode Operation
• Extended Temperature: -40℃ to +85℃
