RUNICDatasheet (PDF)

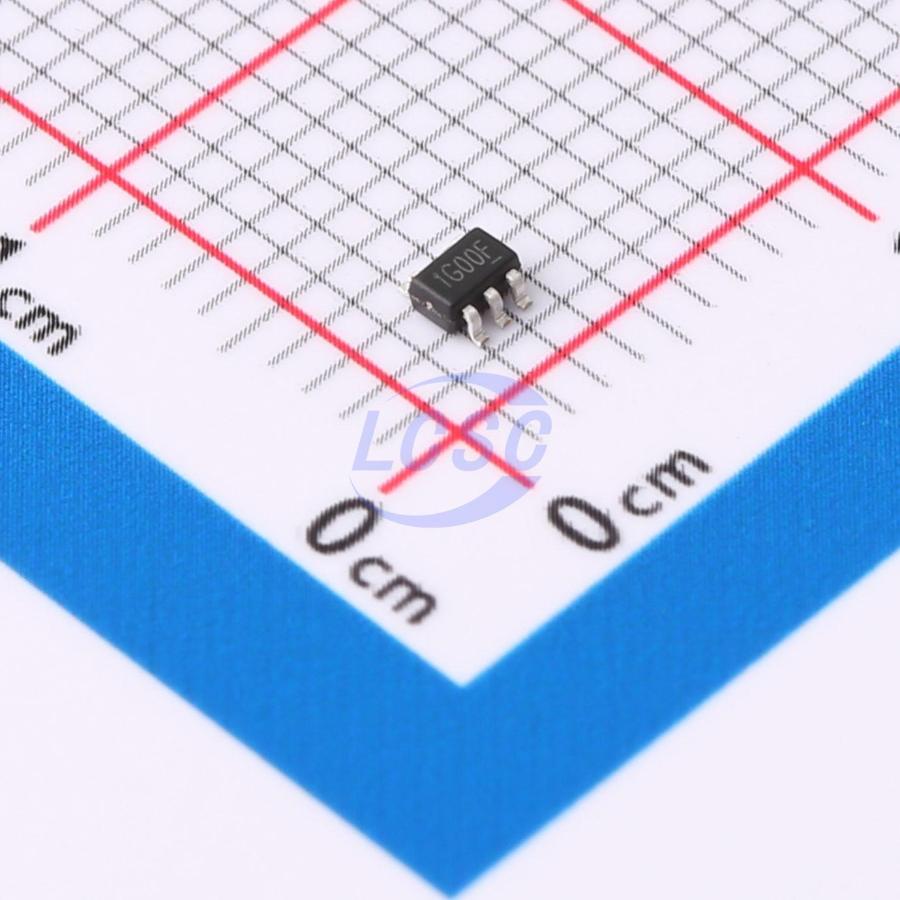

RS1G00XC5
1.65V~5.5V 4.2ns@5V,50pF 10uA SC70-5 Gates and Inverters
SC70-5RoHSActive
Single 2-Input Positive-NAND Gate
- Manufacturer
- RUNIC
- Manufacturer part #
- RS1G00XC5
- Store part #
- C5372435
- Package / case
- SC70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,960 in stock
#C5372435
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹16.22 | ₹162.20 |
| 100+ | ₹12.13 | ₹1,213.00 |
| 300+ | ₹10.08 | ₹3,024.00 |
| 3,000+ | ₹8.55 | ₹25,650.00 |
10 × ₹16.22
₹162.20
excl. GST
₹191.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS1G00XC5
₹162.20 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Propagation Delay
- 4.2ns@5V,50pF
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
The RS1G00 single 2-input positive-NAND gate is designed for 1.65V to 5.5V VCC operation. The RS1G00 device performs the Boolean function Y = A(overline)·B(overline) or Y = A(overline) + B(overline) in positive logic. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS1G00 is available in Green SOT23-5 and SC70- 5 packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- Active Noise Elimination
- Bar Code Scanner
- Blood Pressure Monitor
- CPAP Machine Fingerprint identification
- Network attached storage (NAS)
Key features
- Operating Voltage Range: 1.65V to 5.5V
- Low Power Consumption: 1μA (Max)
- Operating Temperature Range: -40°C to ±125°C
- Inputs Accept Voltage to 5.5V
- High Output Drive: ±24mA at VCC = 3.0V
- Micro SIZE PACKAGES: SOT23-5, SC70-5
