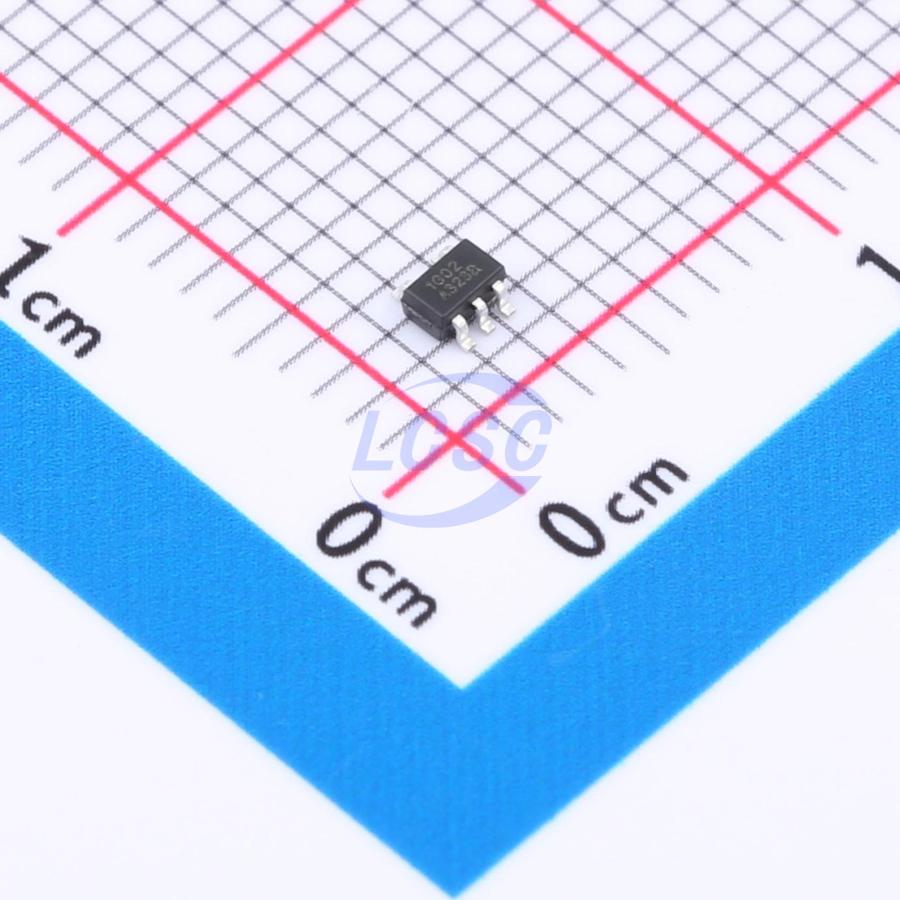

RUNIC

RS1G02XC5

1uA 1.65V~5.5V 4.1ns@3.3V,50pF SC70-5 Gates and Inverters RoHS

SC70-5ROHS CompliantActive

Manufacturer: RUNIC
Manufacturer part #: RS1G02XC5
Store part #: C7502500
Package / case: SC70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,080 in stock

#C7502500

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹16.54	₹82.70
50+	₹12.36	₹618.00
150+	₹10.27	₹1,540.50
500+	₹8.71	₹4,355.00

Quantity (min 5, multiples of 5)

5 × ₹16.54

₹82.70

excl. GST

₹97.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS1G02XC5

₹82.70 for 5 + GST

Specifications

Features: Local shutdown mode;Overvoltage-tolerant input
Input Logic Level - Low: 700mV;800mV
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.7V;2V
Output Logic Level - High: 1.9V;2.4V;3.8V
Quiescent Current(Iq): 1uA
Voltage - Supply: 1.65V~5.5V
Current - Output High(IOH): 24mA
Number of Channels: 1;2
Output Logic Level - Low: 550mV
Propagation Delay: 4.1ns@3.3V,50pF
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.048 g

Overview

RS1G02 is a single 2-input positive-NOR gate designed for 1.65V to 5.5V VCC operation. The device performs the Boolean function Y = A+B (overbar) or Y = Ā · B̄ in positive logic. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuit disables the outputs, preventing damaging current backflow when the device is powered down. The RS1G02 is offered in green SOT23-5 and SC70-5 packages and is rated for operation over the -40°C to +125°C ambient temperature range.
