RUNICDatasheet (PDF)

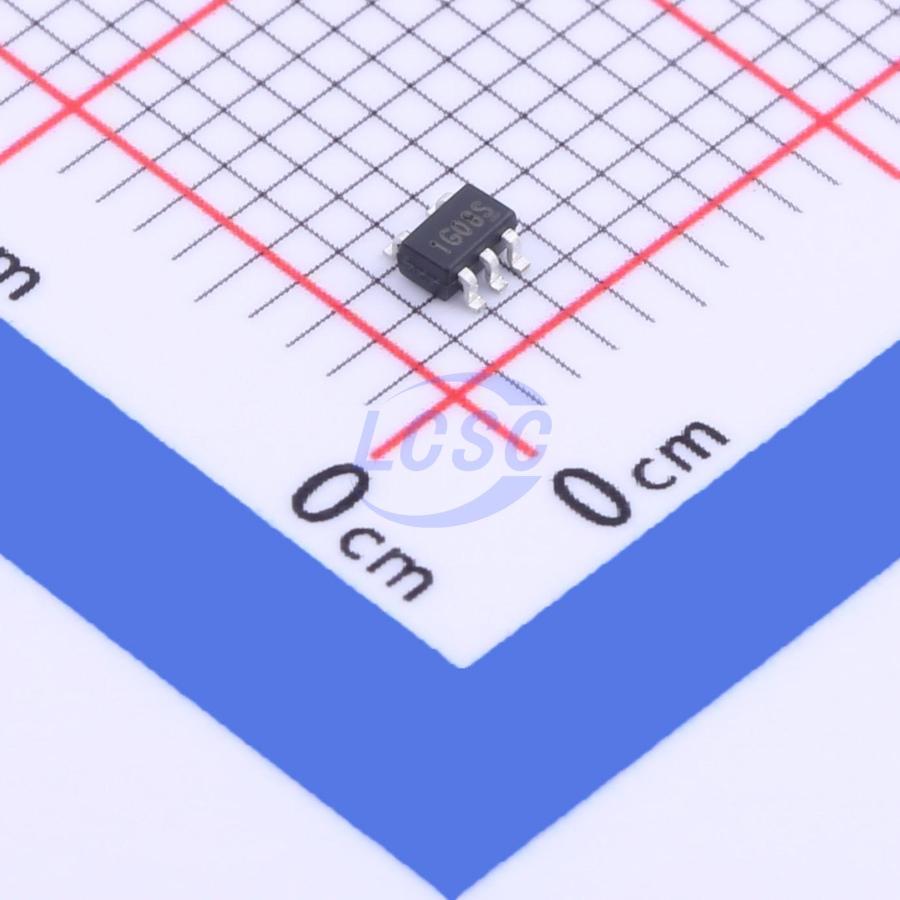

RS1G08XC5
10uA 1.65V~5.5V 9.4ns@5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
Single 2-Input Positive-AND Gate
- Manufacturer
- RUNIC
- Manufacturer part #
- RS1G08XC5
- Store part #
- C2762290
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,440 in stock
#C2762290
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹13.06 | ₹130.60 |
| 100+ | ₹9.42 | ₹942.00 |
| 300+ | ₹7.59 | ₹2,277.00 |
10 × ₹13.06
₹130.60
excl. GST
₹154.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS1G08XC5
₹130.60 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - Low
- 300mV;400mV
- Input Logic Level - High
- 1.7V;2.2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.3V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 9.4ns@5V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.062 g
Overview
The RS1G08 single 2-input positive-AND gate is designed for 1.65V to 5.5V VCC operation. The RS1G08 device performs the Boolean function Y = A·B or Y = (A + B(overline)) in positive logic. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Applications
- Active Noise Elimination
- Bar Code Scanner
- Blood Pressure Monitor
- CPAP Machine
- Fingerprint identification
- Network attached storage (NAS)
Key features
- Operating Voltage Range: 1.65V to 5.5V
- Low Power Consumption: 10μμ (Max)
- Operating Temperature Range: -40°C to ±125°C
- Inputs Accept Voltage to 5.5V
- High Output Drive: ±24mA at VCC = 3.0V
- Micro SIZE PACKAGES: SOT23-5, SC70-5
