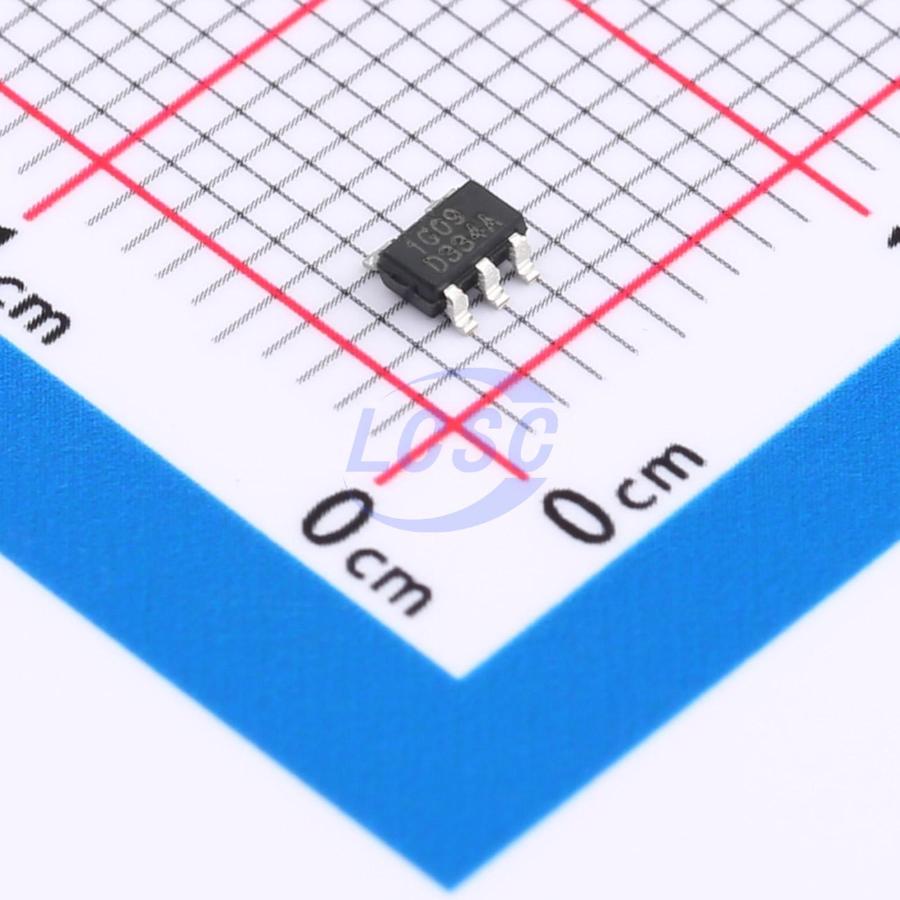

RS1G09XF5
1.65V~5.5V 3.7ns@5V,50pF 1uA SOT23-5 Gates and Inverters RoHS
SOT23-5ROHS CompliantActive
- Manufacturer
- RUNIC
- Manufacturer part #
- RS1G09XF5
- Store part #
- C7502501
- Package / case
- SOT23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,857 in stock
#C7502501
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹5.21 | ₹5.21 |
1 × ₹5.21
₹5.21
excl. GST
₹6.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS1G09XF5
₹5.21 for 1 + GST
Specifications
- output type
- Open-drain
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 3.7ns@5V,50pF
- Output Logic Level - Low
- 550mV
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Features
- Overvoltage-tolerant input
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The RS1G09 is a single 2-input AND gate with opendrain output. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments. The RS1G09 is available in Green SOT23-5 and SC70- 5 packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- Active Noise Elimination
- Bar Code Scanner
- Blood Pressure Monitor
- CPAP Machine
- Fingerprint Identification
- Network Attached Storage (NAS)
Key features
- Operating Voltage Range: 1.65V to 5.5V
- Low Power Consumption: 1μA (Max)
- Operating Temperature Range: -40°C to +125°C
- Inputs Accept Voltage to 5.5V
- High Output Drive: ±24mA at Vcc = 3.0V
- Micro Size Packages: SOT23-5, SC70-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS1G08XF5-Q1#C42459501RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 280 | ₹22.73 · 280 in stock | View |
 | RS1G08XF5#C2762291RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 4,110 | ₹13.61 · 4,110 in stock | View |
