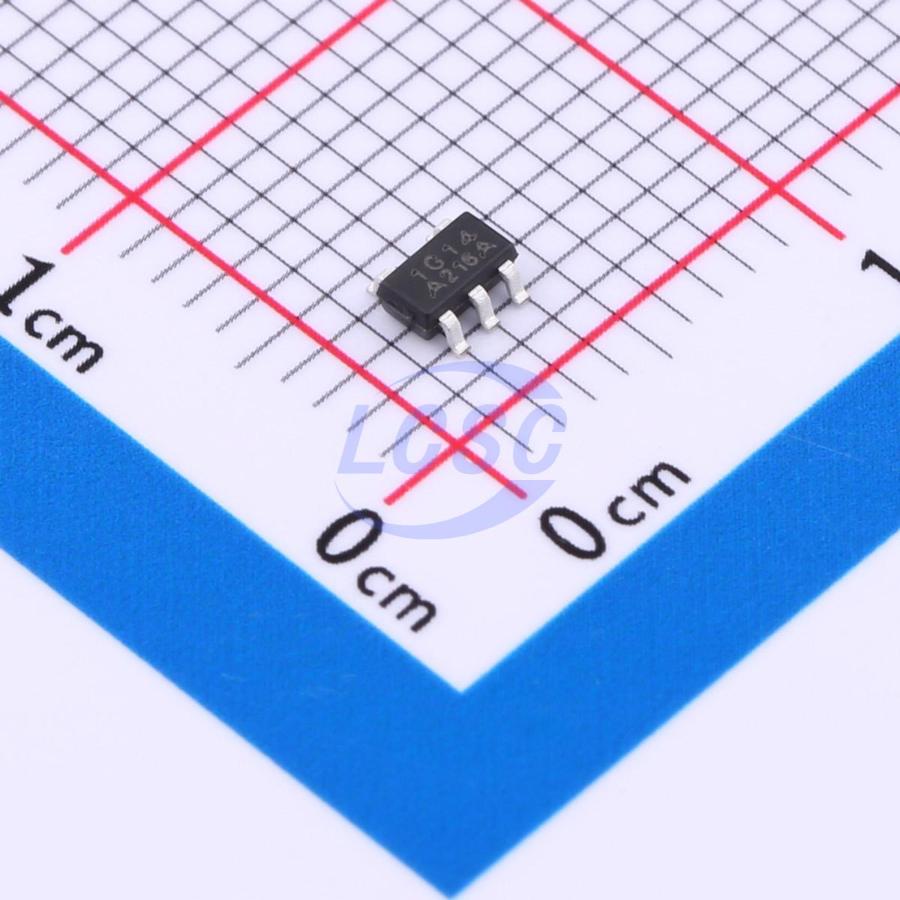

RUNIC

RS1G14XF5

Schmitt trigger 10uA 1.65V~5.5V 1 3.1ns@3.3V,50pF SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS3 CompliantSold out at source

Single Schmitt-Trigger Inverter

Manufacturer: RUNIC
Manufacturer part #: RS1G14XF5
Store part #: C2931599
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,710 in stock

#C2931599

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹10.41	₹104.10
100+	₹8.32	₹832.00
300+	₹7.49	₹2,247.00
3,000+	₹5.83	₹17,490.00

Quantity (min 10, multiples of 10)

10 × ₹10.41

₹104.10

excl. GST

₹122.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS1G14XF5

₹104.10 for 10 + GST

Specifications

output type: Open-drain
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+125℃
Input Type: Schmitt trigger
Output Logic Level - High: 1.2V;1.9V;2.2V;2.3V;3.8V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Current - Output High(IOH): 24mA
Number of Channels: 1
Output Logic Level - Low: 100mV;450mV;300mV;400mV;550mV
Propagation Delay: 3.1ns@3.3V,50pF
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Sold out at source
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.08 g

Overview

Operating Voltage Range: 1.65V to 5.5V • Low Power Consumption: 1nA (Max) Operating Temperature Range: -40℃ to ±125℃ Input Accept Voltage to 5.5V High Output Drive: ±24mA at VCC = 3.0V Ioff Supports Partial-Power-Down Mode Operation Micro SIZE PACKAGES: SOT23-5, SC70-5
