RUNICDatasheet (PDF)

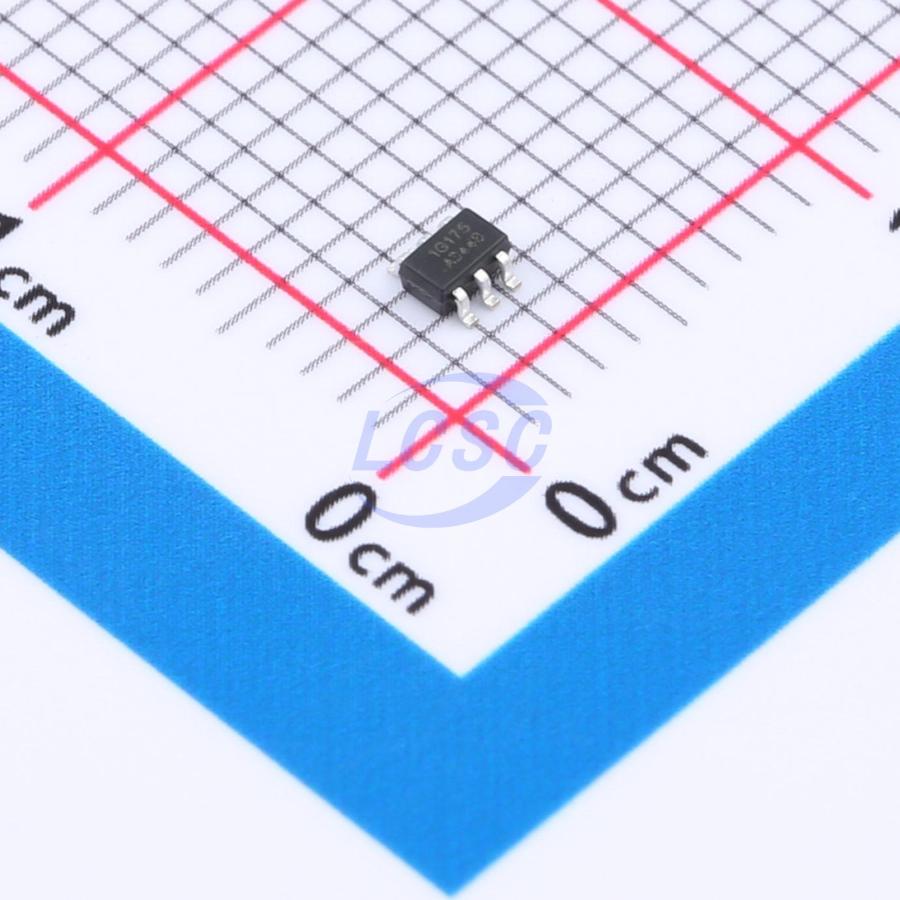

RS1G175XC6
10uA 1.65V~5.5V 9.5ns@3.3V,15pF SOT363 Gates and Inverters RoHS
SOT363ROHS CompliantActive
- Manufacturer
- RUNIC
- Manufacturer part #
- RS1G175XC6
- Store part #
- C7502502
- Package / case
- SOT363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,310 in stock
#C7502502
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.29 | ₹76.45 |
| 50+ | ₹11.43 | ₹571.50 |
| 150+ | ₹9.50 | ₹1,425.00 |
| 500+ | ₹8.06 | ₹4,030.00 |
5 × ₹15.29
₹76.45
excl. GST
₹90.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS1G175XC6
₹76.45 for 5 + GST
Specifications
- Features
- Live insertion protection;Local shutdown mode;Rear drive protection
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 2.3V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;-
- Propagation Delay
- 9.5ns@3.3V,15pF
- Output Logic Level - Low
- 550mV
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
RS1G175 single-channel D-type flip-flop is designed for 1.65V to 5.5V VCC operation. The device features an asynchronous clear input. When CLR is HIGH, data transfer from the input pin to the output pin occurs on the rising edge of the clock. When CLR is LOW, Q is forced LOW regardless of the clock edge or data at D. The RS1G175 is fully specified for partial power-down applications using Ioff. The Ioff circuit disables the outputs, preventing damaging current backflow when the device is powered down. The device is available in green SOT23-6 and SC70-6 packages, with an operating ambient temperature range of -40°C to +125°C.
Applications
- Enterprise switching
- Telecom infrastructure
- Servers
- Healthcare & fitness equipment
- Desktop/laptop computers
- Motor drives
Key features
- Operating voltage range: 1.65V to 5.5V
- Low power consumption: 10μA
- Operating temperature range: -40°C to +125°C
- Inputs accept voltages up to 5.5V
- High output drive capability: ±24mA at VCC = 3.0V
- Ioff supports hot-plug, partial power-down, and back-drive protection
- Miniature packages: SOT23-6, SC70-6
