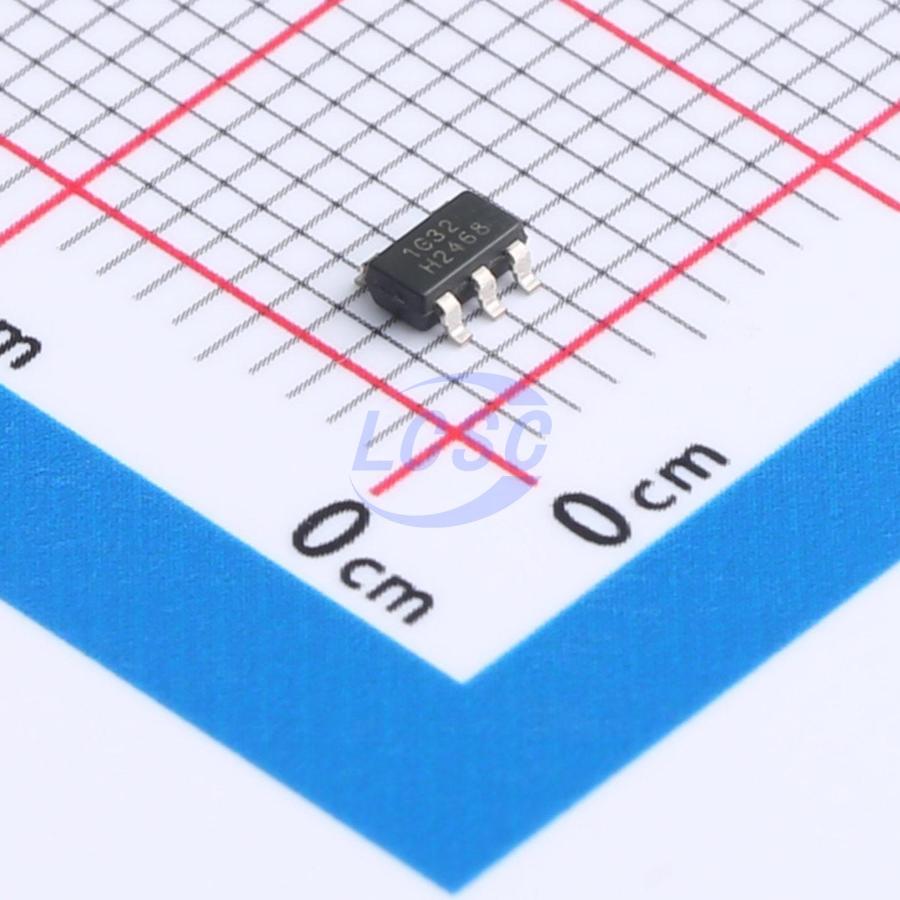

RS1G32XF5-Q1
1.65V~5.5V 17.1ns@5V,50pF 1uA SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
Single 2-Input Positive-OR Gate
- Manufacturer
- RUNIC
- Manufacturer part #
- RS1G32XF5-Q1
- Store part #
- C7570389
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,885 in stock
#C7570389
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.63 | ₹103.15 |
| 50+ | ₹16.50 | ₹825.00 |
| 150+ | ₹13.81 | ₹2,071.50 |
| 500+ | ₹11.34 | ₹5,670.00 |
5 × ₹20.63
₹103.15
excl. GST
₹121.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS1G32XF5-Q1
₹103.15 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Propagation Delay
- 17.1ns@5V,50pF
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The RS1G32-Q1 single 2-input positive-OR gate is designed for 1.65V to 5.5V VCC operation. The RS1G32-Q1 device performs the Boolean function Y = A + B or Y = A(overline) · B(overline)(overline) in positive logic. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS1G32-Q1 is available in Green SOT23-5 and SOT353(SC70-5) packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- Fully Qualified for Automotive Applications
- Automotive Infotainment and Cluster
- Automotive Zonal & Body Domain Controller
- HEV/EV Battery Management System (BMS)
Key features
- Qualified for Automotive Applications
- AEC-Q100 Qualified with the Grade 1 Operating Voltage Range: 1.65V to 5.5V
- Low Power Consumption: 1μμ (Max)
- Operating Temperature Range: -40°C to ±125°C
- Inputs Accept Voltage to 5.5V
- High Output Drive: ±24mA at VCC = 3.0V
- Micro SIZE PACKAGES: SOT23-5, SOT353(SC70-5)
