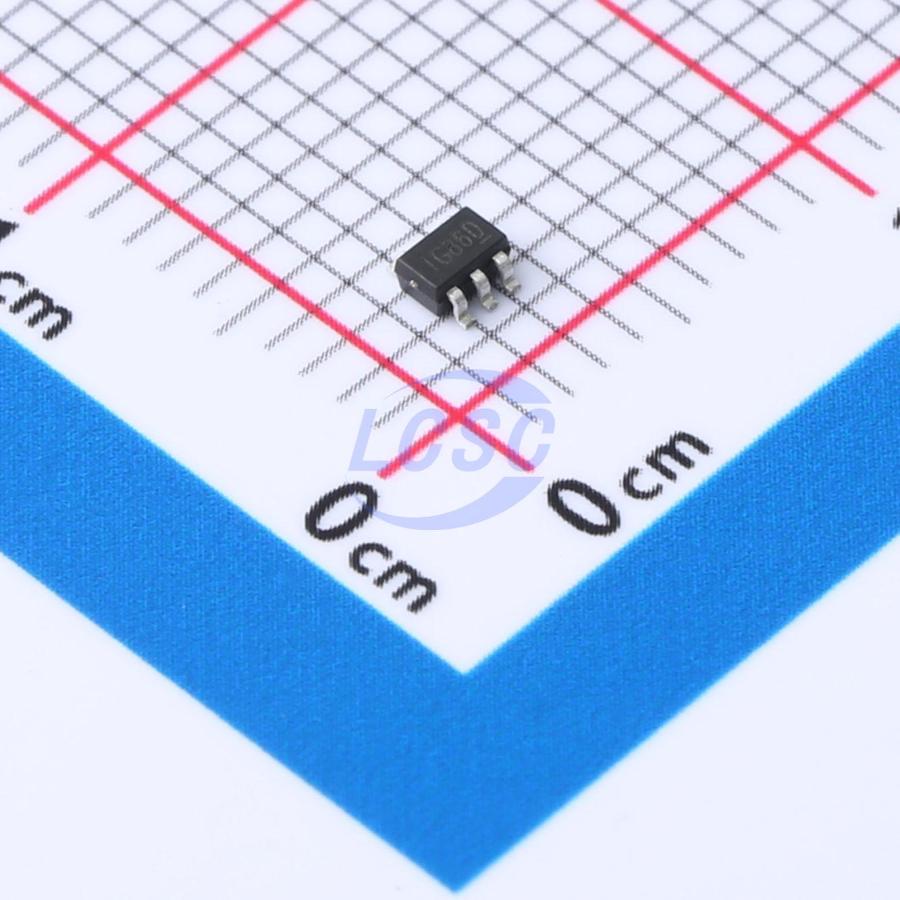

RUNIC

RS1G86XC5

1uA 1.65V~5.5V 5.3ns@5V,50pF SC70-5 Gates and Inverters

SC70-5RoHSActive

Single 2-Input Exclusive-OR Gate

Manufacturer: RUNIC
Manufacturer part #: RS1G86XC5
Store part #: C5372454
Package / case: SC70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C5372454

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹14.42	₹72.10
50+	₹10.78	₹539.00
150+	₹8.96	₹1,344.00
500+	₹7.59	₹3,795.00

Quantity (min 5, multiples of 5)

5 × ₹14.42

₹72.10

excl. GST

₹85.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS1G86XC5

₹72.10 for 5 + GST

Specifications

Features: Local shutdown mode
Input Logic Level - Low: 300mV;400mV
Input Logic Level - High: 1.7V;2.2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.4V;2.3V;3.8V
Quiescent Current(Iq): 1uA
Voltage - Supply: 1.65V~5.5V
Current - Output High(IOH): 24mA
Number of Channels: 1;2
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Propagation Delay: 5.3ns@5V,50pF
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.041 g

Overview

Operating Voltage Range: 1.65V to 5.5V Low Power Consumption: 1 μA (Max) Operating Temperature Range: -40°C to ±125°C Inputs Accept Voltage to 5.5V High Output Drive: ±24 mA at VCC = 3.0V Micro SIZE PACKAGES: SOT23-5, SC70-5 The RS1G86 single 2-input exclusive-OR gate is designed for 1.65V to 5.5V VCC operation. The RS1G86 device performs the Boolean function Y = A(overline)B + AB(overline) in positive logic. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
