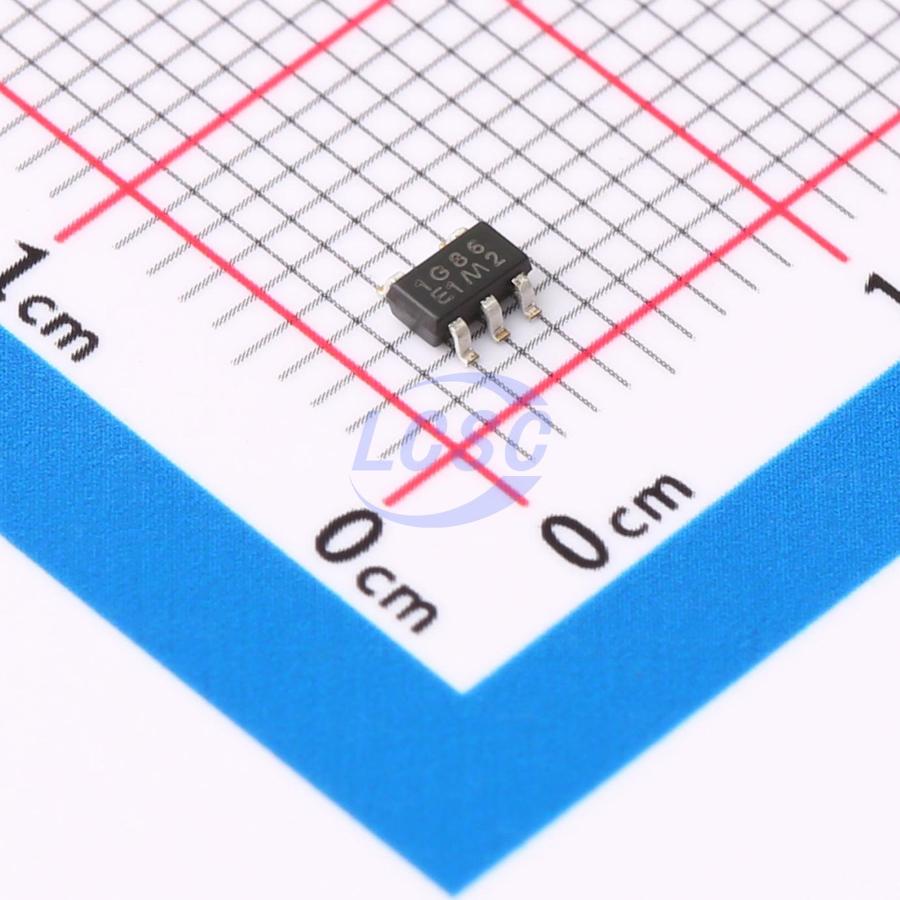

RUNIC

RS1G86XF5

1uA 1.65V~5.5V 6.7ns@3.3V,50pF SOT23-5 Gates and Inverters

SOT23-5RoHSActive

Single 2-Input Exclusive-OR Gate

Manufacturer: RUNIC
Manufacturer part #: RS1G86XF5
Store part #: C5372455
Package / case: SOT23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,030 in stock

#C5372455

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹12.52	₹125.20
100+	₹9.35	₹935.00
300+	₹7.78	₹2,334.00
3,000+	₹6.59	₹19,770.00

Quantity (min 10, multiples of 10)

10 × ₹12.52

₹125.20

excl. GST

₹147.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS1G86XF5

₹125.20 for 10 + GST

Specifications

Features: Local shutdown mode
Input Logic Level - Low: 300mV;400mV
Input Logic Level - High: 1.7V;2.2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 2.3V;3.8V
Quiescent Current(Iq): 1uA
Voltage - Supply: 1.65V~5.5V
Current - Output High(IOH): 24mA
Number of Channels: 1;2
Propagation Delay: 6.7ns@3.3V,50pF
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.031 g

Overview

Operating Voltage Range: 1.65V to 5.5V Low Power Consumption: 1 μA (Max) Operating Temperature Range: -40°C to ±125°C Inputs Accept Voltage to 5.5V High Output Drive: ±24 mA at VCC = 3.0V Micro SIZE PACKAGES: SOT23-5, SC70-5 The RS1G86 single 2-input exclusive-OR gate is designed for 1.65V to 5.5V VCC operation. The RS1G86 device performs the Boolean function Y = A(overline)B + AB(overline) in positive logic. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
