RS1G97XH6

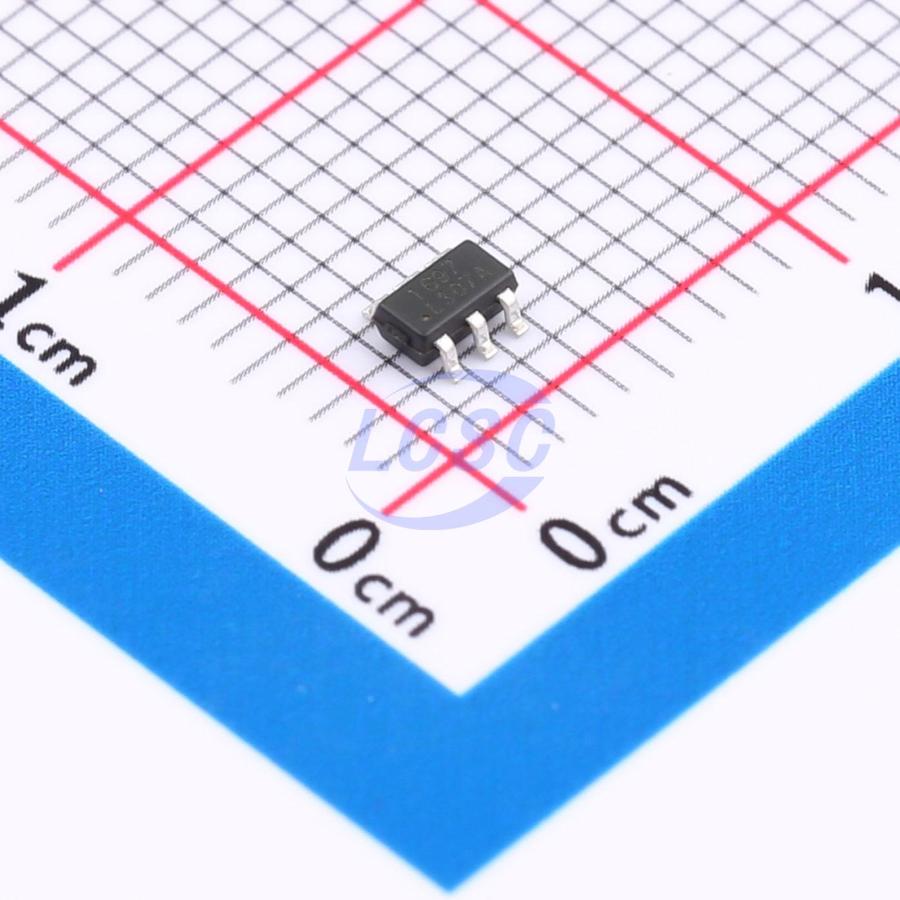

Schmitt trigger 1.65V~5.5V 3.1ns@3.3V,50pF 10uA SOT23-6 Gates and Inverters RoHS

SOT23-6ROHS CompliantActive

Manufacturer: RUNIC
Manufacturer part #: RS1G97XH6
Store part #: C7502507
Package / case: SOT23-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,300 in stock

#C7502507

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹14.42	₹72.10
50+	₹10.78	₹539.00
150+	₹8.96	₹1,344.00
500+	₹7.59	₹3,795.00

Quantity (min 5, multiples of 5)

5 × ₹14.42

₹72.10

excl. GST

₹85.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS1G97XH6

₹72.10 for 5 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: RS1G97
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 3.1ns@3.3V,50pF
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Features: Live insertion protection;Local shutdown mode;Rear drive protection
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.4V;3.8V
Quiescent Current(Iq): 10uA
Current - Output High(IOH): 24mA
Number of Channels: 3;1
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.05 g

Overview

The RS1G97 is a configurable multi-function gate device designed to operate at supply voltages from 1.65V to 5.5V VCC. The device features configurable multiple functions, with output states determined by eight modes of 3-bit input. Selectable logic functions include multiplexer, AND, OR, NAND, NOR, inverter, and buffer. All inputs can be connected to VCC or GND. The device can operate as a standalone gate; however, due to Schmitt-trigger action, the input threshold levels for rising and falling edges may differ. The RS1G97 is fully specified for partial power-down applications using Ioff. The Ioff circuit disables the output to prevent destructive current backflow when the device is powered down. The device is offered in green SOT23-6 and SC70-6 packages, with an operating ambient temperature range of -40°C to +125°C.
