RUNICDatasheet (PDF)
RS1GT04XF5
2V~5.5V 2.9ns@5V,50pF 10uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive

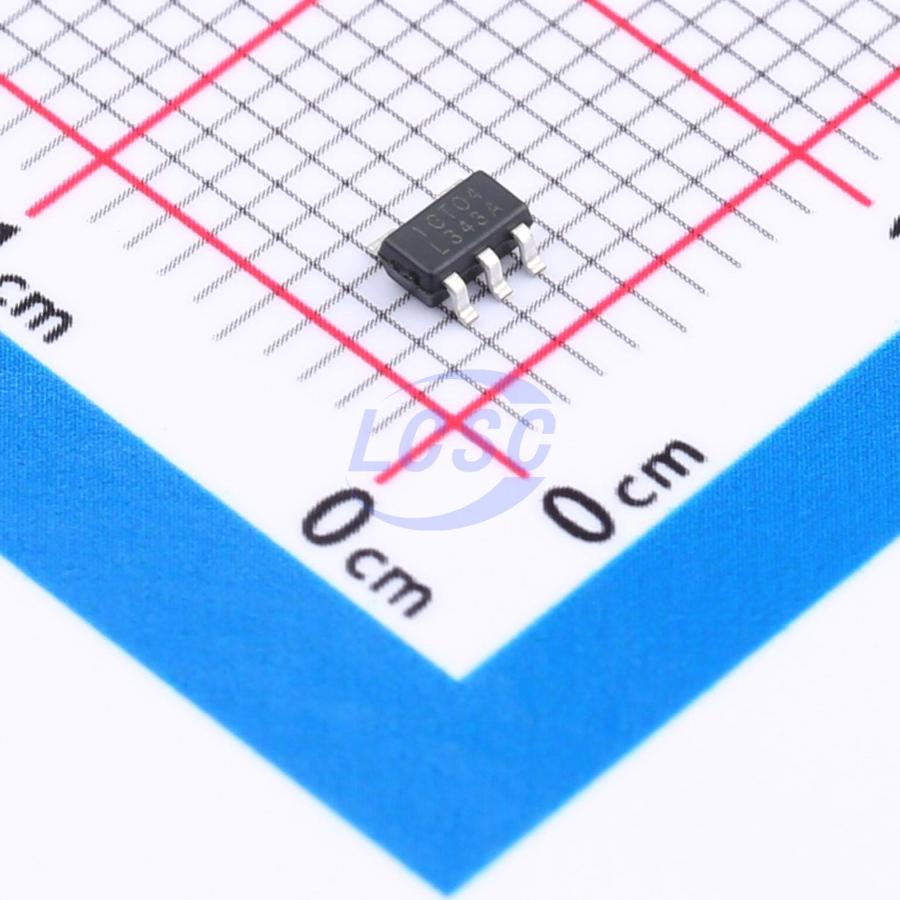

Single Inverter Gate
- Manufacturer
- RUNIC
- Manufacturer part #
- RS1GT04XF5
- Store part #
- C20611891
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,060 in stock
#C20611891
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.75 | ₹97.50 |
| 100+ | ₹7.70 | ₹770.00 |
| 300+ | ₹6.68 | ₹2,004.00 |
| 3,000+ | ₹5.93 | ₹17,790.00 |
| 6,000+ | ₹5.31 | ₹31,860.00 |
| 9,000+ | ₹5.00 | ₹45,000.00 |
10 × ₹9.75
₹97.50
excl. GST
₹115.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS1GT04XF5
₹97.50 for 10 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 2.9ns@5V,50pF
- Features
- Power shutdown protection
- Input Logic Level - High
- 1V;1.5V;2V
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 300mV;550mV;800mV
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.024 g
Overview
The RS1GT04 Single inverter gate is designed for 2.0V to 5.5V VCC operation. The RS1GT04 device contains one inverter and performs the Boolean function Y = A(overline). This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS1GT04 is available in Green SOT23-5 and SOT353(SC70-5) packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- AC Receiver and Home Theaters
- Blu-ray Players and Home Theaters
- Desktops or Notebook PCs
- Digital Video Cameras (DVC)
- Mobile Phones
- Personal Navigation Device (GPS)
- Portable Media Player
Key features
- Operating Voltage Range: 2.0V to 5.5V
- Low Power Consumption: 1μA (Max)
- Operating Temperature Range: -40°C to +125°C
- TTL Input are Compatible
- Input Accept Voltage to 5.5V
- Output Drive: ±32mA at Vcc = 5.0V
- Ioff Supports Partial-Power-Down Mode Operation
- Micro SIZE PACKAGES: SOT23-5, SOT353(SC70-5)
