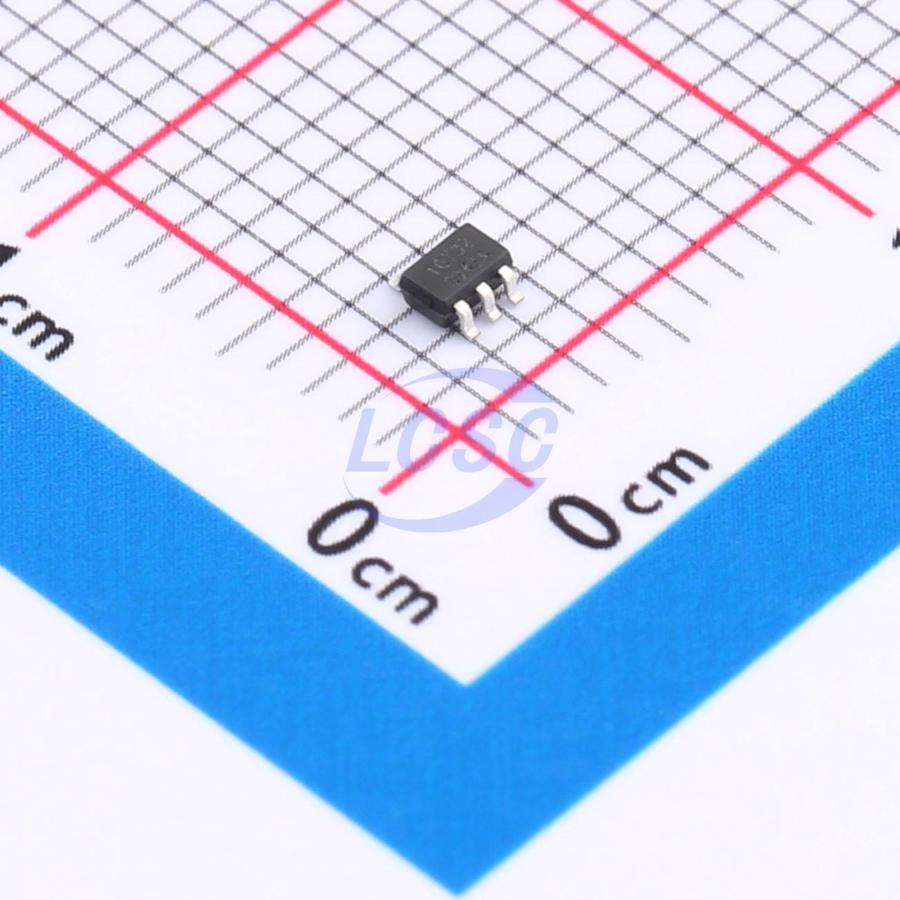

Single 2-Input Positive-OR Gate
- Manufacturer
- RUNIC
- Manufacturer part #
- RS1GT32XC5
- Store part #
- C42459527
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,130 in stock
#C42459527
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.00 | ₹90.00 |
| 100+ | ₹6.99 | ₹699.00 |
| 300+ | ₹5.98 | ₹1,794.00 |
| 3,000+ | ₹5.23 | ₹15,690.00 |
| 6,000+ | ₹4.63 | ₹27,780.00 |
| 9,000+ | ₹4.33 | ₹38,970.00 |
10 × ₹9.00
₹90.00
excl. GST
₹106.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS1GT32XC5
₹90.00 for 10 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 450mV;550mV;500mV
- Propagation Delay
- 2.8ns@5V,50pF
- Features
- Local shutdown mode
- Input Logic Level - Low
- 300mV;550mV;800mV
- Input Logic Level - High
- 1V;1.5V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.6V;2.5V;3.8V;4.2V;4.8V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.016 g
Overview
The RS1GT32 single 2-input positive-OR gate is designed for 2.0V to 5.5V VCC operation. The RS1GT32 device performs the Boolean function Y = A + B or Y = A(overline)·B(overline)(overline) in positive logic. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS1GT32 is available in Green SOT23-5 and SC70-5 packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- AV Receiver
- Blu-ray Player and Home Theater
- Digital Picture Frame (DPF)
- High-Speed Data Acquisition and Generation
- Personal Navigation Device (GPS)
- Portable Media Player
Key features
- Operating Voltage Range: 2.0V to 5.5V
- Low Power Consumption: 1μA (Max)
- Operating Temperature Range: -40°C to +125°C
- TTL Input are Compatible
- Input Accept Voltage to 5.5V
- Output Drive: ±32mA at VCC = 5.0V
- Ioff Supports Partial-Power-Down Mode Operation
- Micro SIZE PACKAGES: SOT23-5, SC70-5
