RUNICDatasheet (PDF)

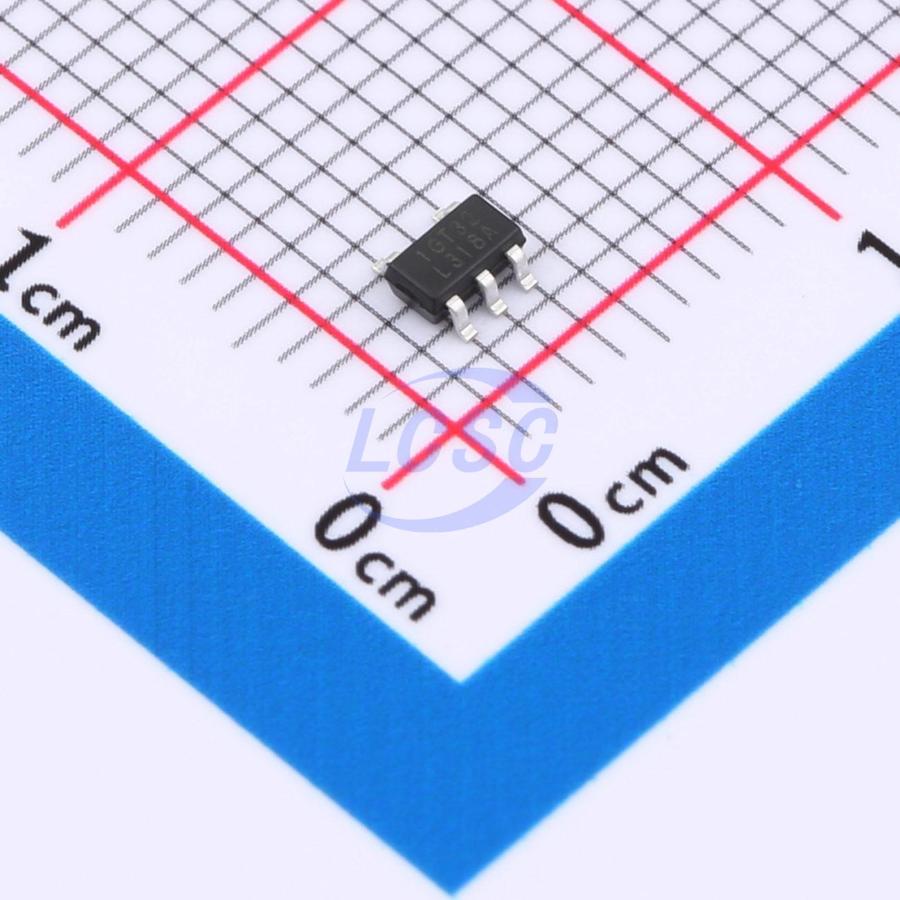

RS1GT32XF5
TTL-compatible CMOS 2V~5.5V 2.8ns@5V,50pF 1uA SOT23-5 Gates and Inverters RoHS
SOT23-5ROHS CompliantActive
- Manufacturer
- RUNIC
- Manufacturer part #
- RS1GT32XF5
- Store part #
- C7502513
- Package / case
- SOT23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,499 in stock
#C7502513
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹5.23 | ₹5.23 |
1 × ₹5.23
₹5.23
excl. GST
₹6.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS1GT32XF5
₹5.23 for 1 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 2.8ns@5V,50pF
- Output Logic Level - Low
- 450mV;500mV;550mV
- Features
- Local shutdown mode
- Input Logic Level - Low
- 300mV;550mV;800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1V;1.5V;2V
- Output Logic Level - High
- 4.2V;4.8V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The RS1GT32 single 2-input positive-OR gate is designed for 2.0V to 5.5V VCC operation. The RS1GT32 device performs the Boolean function Y = A + B or Y = A(overline)·B(overline)(overline) in positive logic. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS1GT32 is available in Green SOT23-5 and SC70-5 packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- AV Receiver
- Blu-ray Player and Home Theater
- Digital Picture Frame (DPF)
- High-Speed Data Acquisition and Generation
- Personal Navigation Device (GPS)
- Portable Media Player
Key features
- Operating Voltage Range: 2.0V to 5.5V
- Low Power Consumption: 1μA (Max)
- Operating Temperature Range: -40°C to +125°C
- TTL Input are Compatible
- Input Accept Voltage to 5.5V
- Output Drive: ±32mA at VCC = 5.0V
- Ioff Supports Partial-Power-Down Mode Operation
- Micro SIZE PACKAGES: SOT23-5, SC70-5
