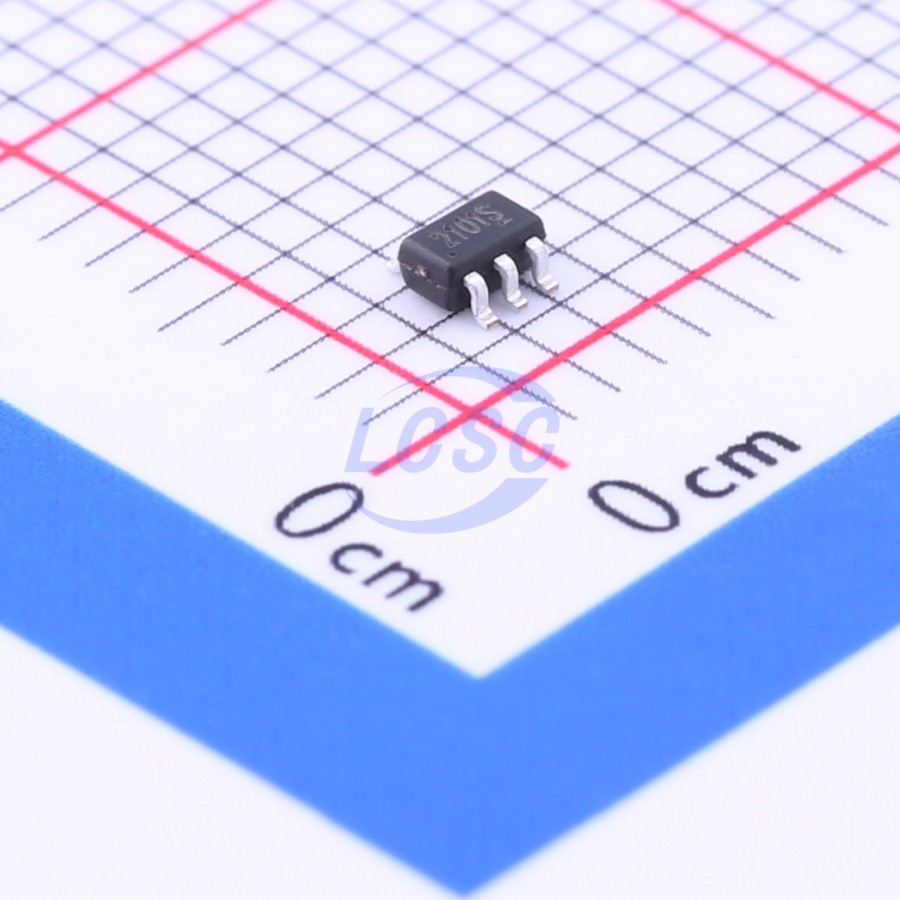

RS2101XC6 RUNIC
RUNIC

RS2101XC6

2.4Ω 1 1.8V~5.5V SC-70-6 Analog Switches, Multiplexers, Demultiplexers RoHS

SC-70-6ROHS3 CompliantActive

Low ON-Resistance, Low Voltage, SPDT Analog Switch

Manufacturer
RUNIC
Manufacturer part #
RS2101XC6
Store part #
C237026
Package / case
SC-70-6
Category
Analog Switches, Multiplexers, Demultiplexers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,250 in stock

#C237026

Stock & price checked 6 days ago

QuantityUnit pricePack price
5+₹29.87₹149.35
50+₹21.12₹1,056.00
150+₹17.37₹2,605.50

5 × ₹29.87

₹149.35

excl. GST

₹176.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 3,000 per reel

RS2101XC6

₹149.35 for 5 + GST

Specifications

Operating Temperature
-40℃~+125℃
Features
Bidirectional analog channel;Glitch-free switching
Ron
2.4Ω
Number of Channels
1
Voltage - Supply
1.8V~5.5V
Con
50pF

Packaging & compliance

RoHS
ROHS3 Compliant
Lifecycle
Active
ECCN
EAR99
Packaging
Tape & Reel (TR)
Standard pack
3,000 / Reel
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
0.06 g

Overview

A low on-resistance, single-pole double-throw (SPDT) analog switch that is designed to operate from 1.8 V to 5.5 V. It can handle both analog and digital signals. It features fast switching speeds (tON = 11ns, tOFF = 8ns) and low on-resistance (2.4Ω TYP). These features make this device suitable for a wide variety of portable applications including cell phones, audio devices, and instrumentation. Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.

Applications

  • Wearable Devices
  • Battery-Operated Equipment
  • Signal Gating, Chopping, Modulation or Demodulation (Modem)
  • Portable Computing
  • Cell Phones

Key features

  • -3dB Bandwidth: 120MHz
  • High Speed, Typically 11ns
  • Supply Range: +1.8V to +5.5V
  • Low ON-State Resistance, 2.4Ω(TYP)
  • Break-Before-Make Switching
  • Rail-to-Rail Operation
  • TTL/CMOS Compatible
  • MicroSIZE PACKAGES: SOT363(SC70-6)
  • Extended Industrial Temperature Range: -40°C to +125°C

Alternatives

Similar parts — check the datasheet before substituting.

RS2057XC6#C237027RUNIC · SC-70-6₹11.56 · 4,650 in stockView
RS2056XC6#C42459531RUNIC · SC-70-6₹22.95 · 1,700 in stockView
