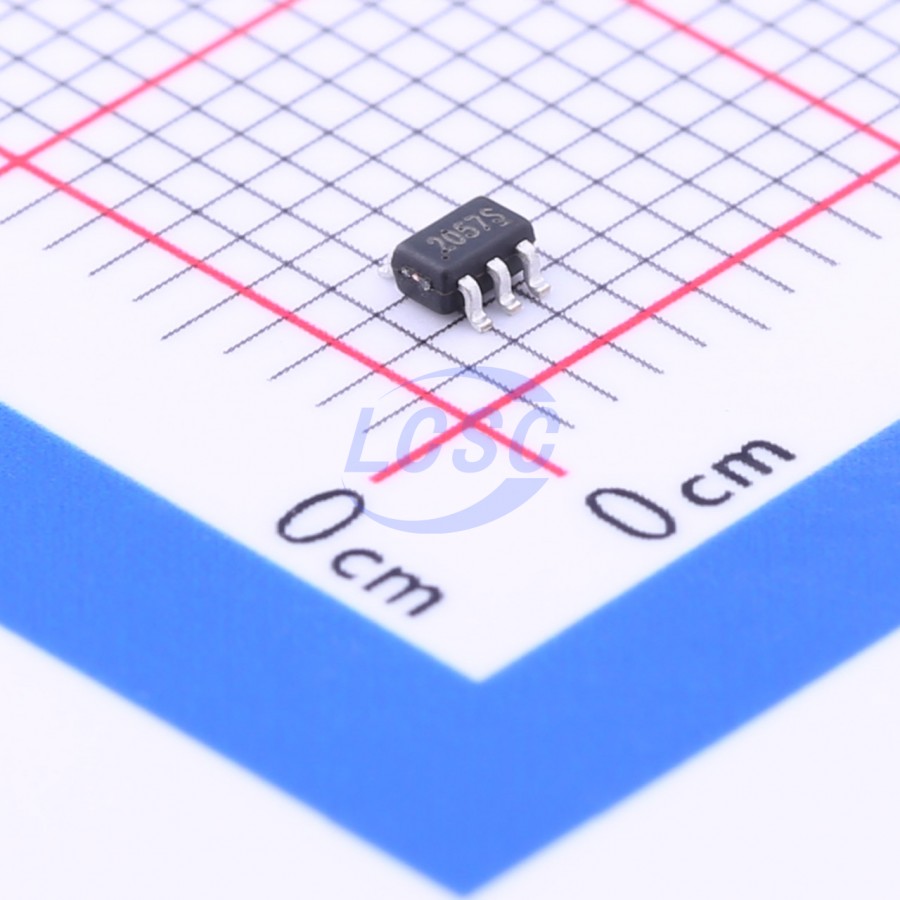

RS2057XC6 RUNIC
RUNIC

RS2057XC6

1 Circuit IC SWITCH 2:1 4.5Ω SC-70-6

SC-70-6ROHS3 CompliantActive

4.5Ω Low-Voltage SPDT Analog Switch

Manufacturer
RUNIC
Manufacturer part #
RS2057XC6
Store part #
C237027
Package / case
SC-70-6
Category
Analog Switches, Multiplexers, Demultiplexers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,650 in stock

#C237027

Stock & price checked 6 days ago

QuantityUnit pricePack price
10+₹11.56₹115.60
100+₹8.64₹864.00
300+₹7.18₹2,154.00
3,000+₹6.09₹18,270.00

10 × ₹11.56

₹115.60

excl. GST

₹136.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 3,000 per reel

RS2057XC6

₹115.60 for 10 + GST

Specifications

Features
Bidirectional analog channel;Glitch-free switching
Operating Temperature
-40℃~+125℃
Ron
4.5Ω
Number of Channels
1
Voltage - Supply
1.8V~5.5V
Con
15pF

Packaging & compliance

RoHS
ROHS3 Compliant
Lifecycle
Active
ECCN
EAR99
Packaging
Tape & Reel (TR)
Standard pack
3,000 / Reel
Sold per
Piece
Minimum order
10 (multiples of 10)
Unit weight
0.06 g

Overview

The RS2057 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.8 V to 5.5 V. The RS2057 device can handle both analog and digital signals. It features high-bandwidth(300MHz) and low on-resistance (4.5Ω TYP). Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.

Applications

  • Wearable Devices
  • Battery-Operated Equipment
  • Signal Gating, Chopping, Modulation or Demodulation (Modem)
  • Portable Computing
  • Cell Phones

Key features

  • High Bandwidth: 300MHz
  • High Speed, Typically 30ns
  • Supply Range: +1.8V to +5.5V
  • Low ON-State Resistance, 4.5Ω(TYP)
  • Break-Before-Make Switching
  • Rail-to-Rail Operation
  • TTL/CMOS Compatible
  • Extended Industrial Temperature Range: -40°C to +125°C
  • MicroSIZE PACKAGES: SOT363 (SC70-6), SOT23-6
