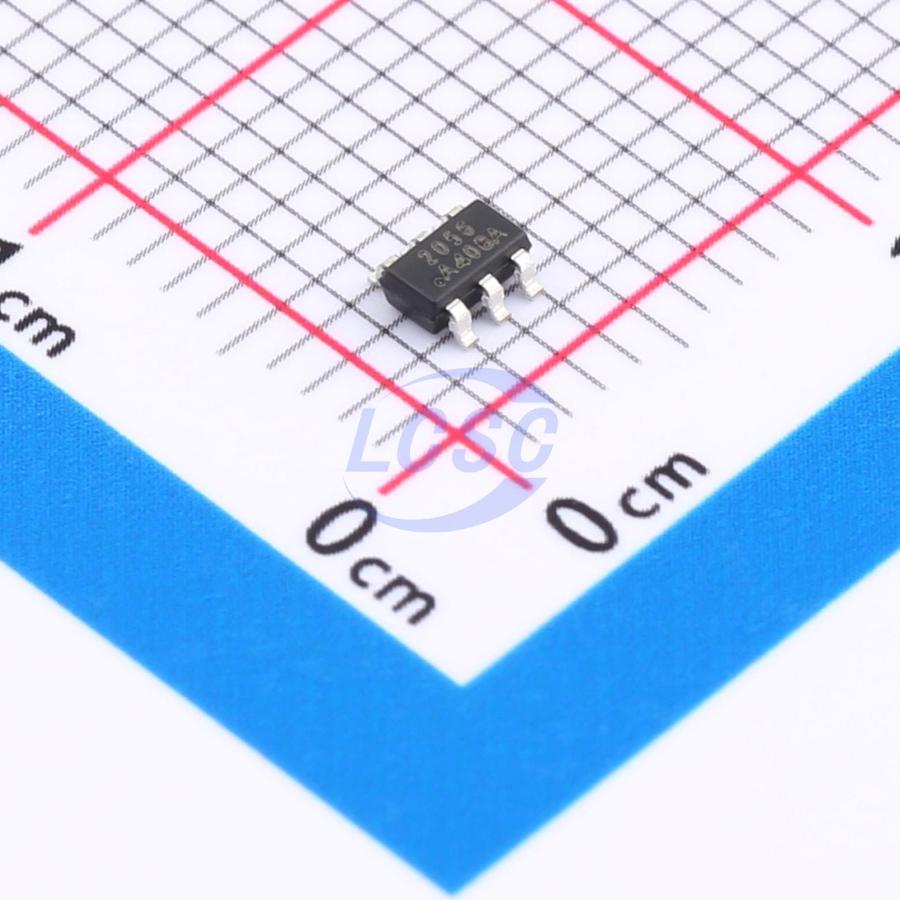

RS2056XH RUNIC
RUNIC

RS2056XH

IC SWITCH 2:1 0.9Ω SOT-23-6

SOT-23-6RoHSActive

Single-channel power-off isolation SPDT analog switch

Manufacturer
RUNIC
Manufacturer part #
RS2056XH
Store part #
C42459532
Package / case
SOT-23-6
Category
Analog Switches, Multiplexers, Demultiplexers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,700 in stock

#C42459532

Stock & price checked 5 days ago

QuantityUnit pricePack price
5+₹24.41₹122.05
50+₹18.93₹946.50
150+₹16.59₹2,488.50
500+₹13.67₹6,835.00
3,000+₹13.02₹39,060.00
6,000+₹12.22₹73,320.00

5 × ₹24.41

₹122.05

excl. GST

₹144.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 3,000 per reel

RS2056XH

₹122.05 for 5 + GST

Specifications

Features
Bidirectional analog channel;Power-off isolation;Glitch-free switching
Operating Temperature
-40℃~+125℃
Number of Channels
1
Ron
900mΩ
Voltage - Supply
1.65V~5.5V
Con
46pF

Packaging & compliance

RoHS
RoHS
Lifecycle
Active
Packaging
Tape & Reel (TR)
Standard pack
3,000 / Reel
Sold per
Piece
Minimum order
5 (multiples of 5)
Unit weight
0.025 g

Overview

The RS2056 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. RS2056 can handle both analog and digital signals and offers low-ON resistance (0.9Ω TYP) and features 100MHz bandwidth. The device also has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make RS2056 suitable for a wide variety of portable applications.

Applications

  • Wearable Devices
  • Low-Voltage Data Acquisition Systems
  • Communication Circuits
  • Portable Instrumentation
  • Computer Peripherals
  • Audio and Video Signal Routing

Key features

  • Isolation in Power-Down Mode, Vcc = 0
  • High Speed: Typically 11ns
  • Supply Range: +1.65V to +5.5V
  • Low ON-State Resistance: 0.9Ω (TYP)
  • Break-Before-Make Switching
  • Control Inputs Are 5.5V Tolerant
  • 1.8V Control Logic Compatible
  • Extended Industrial Temperature Range: -40°C to 125°C
  • Micro Size Packages: SC70-6, SOT23-6
