RUNICDatasheet (PDF)

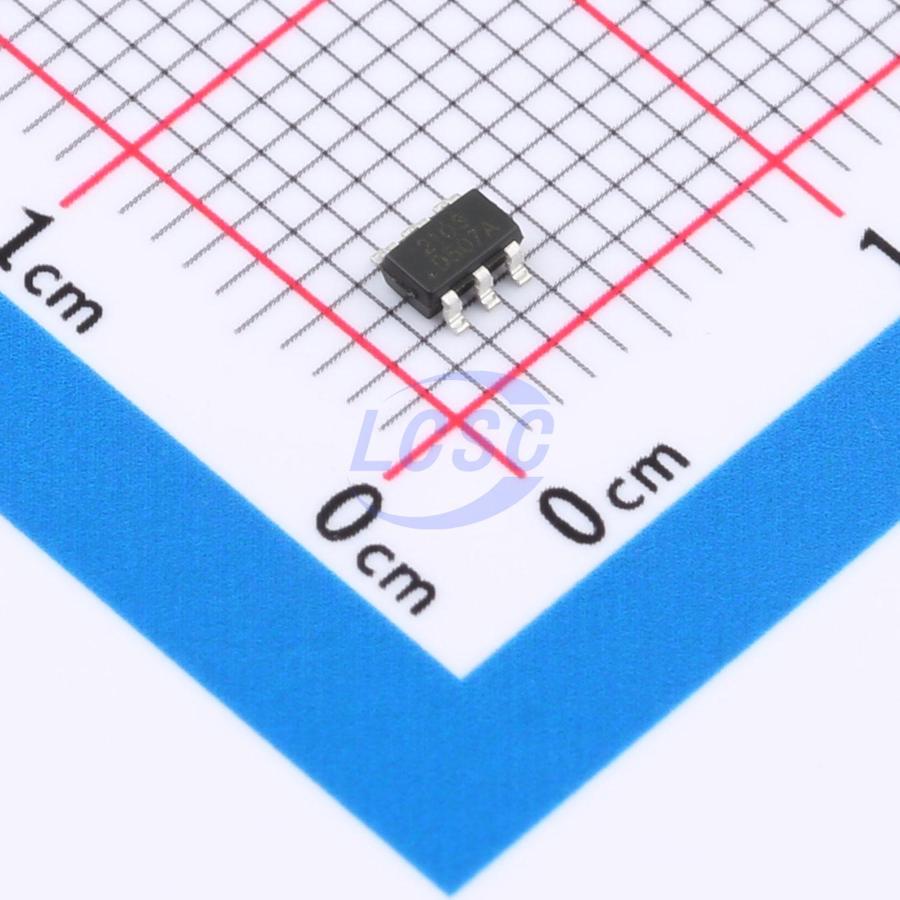

RS2103XH
1 1.8V~5.5V 600mΩ SOT-23-6 Analog Switches, Multiplexers, Demultiplexers RoHS
SOT-23-6ROHS3 CompliantActive
Ultra Low ON-Resistance, Low Voltage, SPDT Analog Switch
- Manufacturer
- RUNIC
- Manufacturer part #
- RS2103XH
- Store part #
- C255472
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,195 in stock
#C255472
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.52 | ₹172.60 |
| 50+ | ₹25.77 | ₹1,288.50 |
| 150+ | ₹22.03 | ₹3,304.50 |
| 500+ | ₹17.36 | ₹8,680.00 |
5 × ₹34.52
₹172.60
excl. GST
₹203.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS2103XH
₹172.60 for 5 + GST
Specifications
- Features
- Glitch-free switching
- Operating Temperature
- -40℃~+125℃
- Number of Channels
- 1
- Voltage - Supply
- 1.8V~5.5V
- Ron
- 600mΩ
- Con
- 350pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
The RS2103 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.8 V to 5.5 V. The RS2103 device can handle both analog and digital signals. It features fast switching speeds (50ns) and low on-resistance (0.6Ω TYP). Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
Applications
- Wearable Devices
- Battery-Operated Equipment
- Signal Gating, Chopping, Modulation or Demodulation (Modem)
- Portable Computing
- Cell Phones
Key features
- 3dB Bandwidth: 30MHz
- High Speed, Typically 50ns
- Supply Range: +1.8V to +5.5V
- Low ON-State Resistance, 0.6Ω(TYP)
- Break-Before-Make Switching
- Rail-to-Rail Operation
- TTL/CMOS Compatible
- Extended Industrial Temperature Range: -40°C to +125°C
- MicroSIZE PACKAGES: SOT363 (SC70-6), SOT23-6
