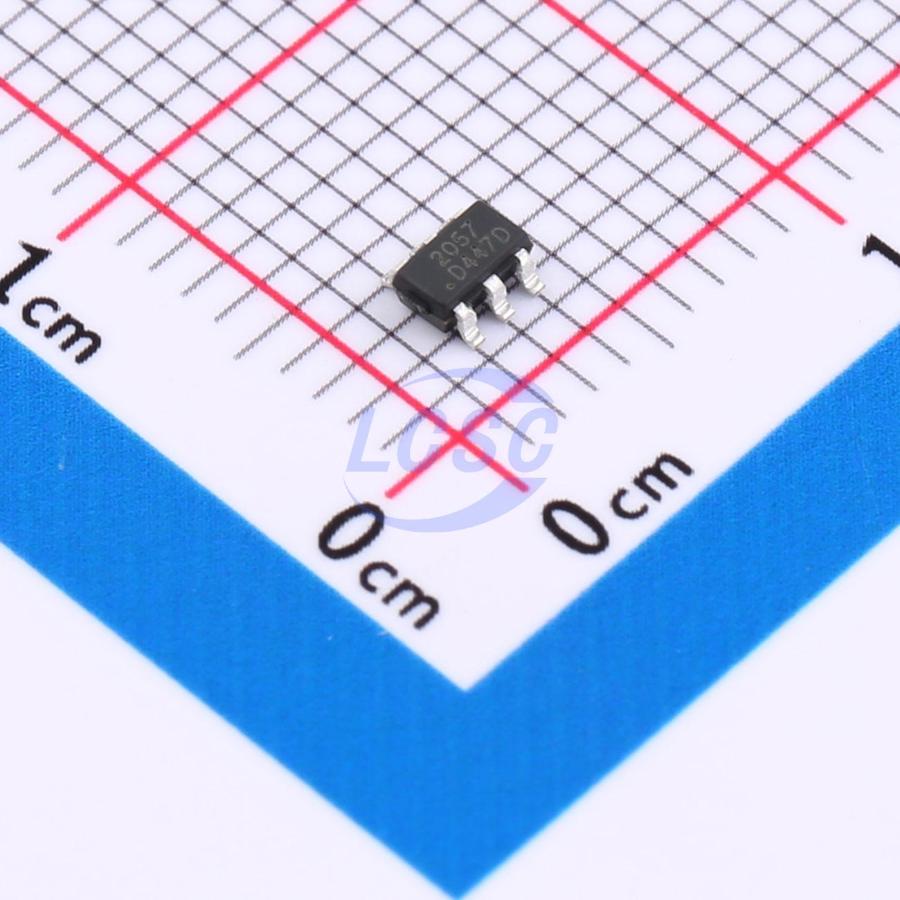

RS2057XH RUNIC
RUNIC

RS2057XH

1 4.5Ω 1.8V~5.5V SOT-23-6 Analog Switches, Multiplexers, Demultiplexers

SOT-23-6RoHSActive

SPDT Analog Switch

Manufacturer
RUNIC
Manufacturer part #
RS2057XH
Store part #
C255474
Package / case
SOT-23-6
Category
Analog Switches, Multiplexers, Demultiplexers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12,890 in stock

#C255474

Stock & price checked 6 days ago

QuantityUnit pricePack price
10+₹11.54₹115.40
100+₹8.63₹863.00
300+₹7.17₹2,151.00
3,000+₹6.07₹18,210.00

10 × ₹11.54

₹115.40

excl. GST

₹136.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 7–10 working days
  • GST invoice with every order
  • Standard pack: 3,000 per reel

RS2057XH

₹115.40 for 10 + GST

Specifications

Features
Bidirectional analog channel;Glitch-free switching
Operating Temperature
-40℃~+125℃
Number of Channels
1
Ron
4.5Ω
Voltage - Supply
1.8V~5.5V
Con
15pF

Packaging & compliance

RoHS
RoHS
Lifecycle
Active
Packaging
Tape & Reel (TR)
Standard pack
3,000 / Reel
Sold per
Piece
Minimum order
10 (multiples of 10)
Unit weight
0.06 g

Overview

The RS2057 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.8 V to 5.5 V. The RS2057 device can handle both analog and digital signals. It features high-bandwidth(300MHz) and low on-resistance (4.5Ω TYP). Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.

Applications

  • Wearable Devices
  • Battery-Operated Equipment
  • Signal Gating, Chopping, Modulation or Demodulation (Modem)
  • Portable Computing
  • Cell Phones

Key features

  • High Bandwidth: 300MHz
  • High Speed, Typically 30ns
  • Supply Range: +1.8V to +5.5V
  • Low ON-State Resistance, 4.5Ω(TYP)
  • Break-Before-Make Switching
  • Rail-to-Rail Operation
  • TTL/CMOS Compatible
  • Extended Industrial Temperature Range: -40°C to +125°C
  • MicroSIZE PACKAGES: SOT363 (SC70-6), SOT23-6
