RUNICDatasheet (PDF)

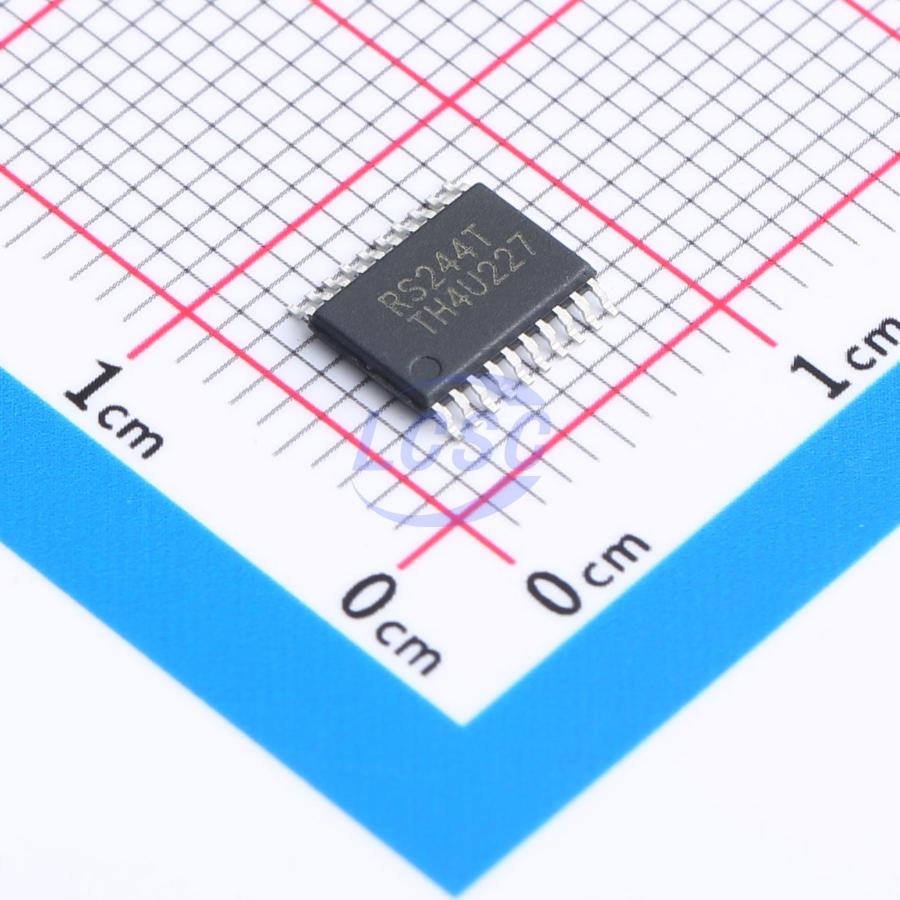

RS244TXTSS20
TTL-compatible CMOS 4.5V~5.5V 8.1ns@5V,15pF 40uA TSSOP20 Gates and Inverters RoHS
TSSOP20ROHS CompliantActive
- Manufacturer
- RUNIC
- Manufacturer part #
- RS244TXTSS20
- Store part #
- C7502514
- Package / case
- TSSOP20
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,190 in stock
#C7502514
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.75 | ₹178.75 |
| 50+ | ₹26.70 | ₹1,335.00 |
| 150+ | ₹22.81 | ₹3,421.50 |
| 500+ | ₹17.97 | ₹8,985.00 |
5 × ₹35.75
₹178.75
excl. GST
₹210.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS244TXTSS20
₹178.75 for 5 + GST
Specifications
- output type
- Tri-State
- Input Type
- TTL-compatible CMOS
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 730mV;690mV
- Propagation Delay
- 8.1ns@5V,15pF
- Features
- Local shutdown mode;Controllable output enable
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 3.76V;4.76V
- Quiescent Current(Iq)
- 40uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
The RS244T is organized as two 4-bit buffers or drivers with separate output enable (OE) inputs. The three-state outputs are controlled by output enable inputs 1OE̅ and 2OE̅. When OE is high, the outputs are in a high-impedance state. When OE is low, the device passes data from input A to output Y. The supply voltage operating range is 4.5V to 5.5V.
Applications
- Servers
- LED Displays
- Network Switches
- Power Infrastructure
- Motor Drivers
- I/O Expanders
- Test & Measurement
Key features
- Supply voltage range: 4.5V to 5.5V
- 3-state output bus line driving
- Low power consumption: 40uA max Icc
- TTL input compatible
- VCC isolation: both ports in high-impedance state when VCC is grounded
- IOFF: partial power-down mode operation support
- Extended temperature range: -40°C to +125°C
- Miniature packages: TSSOP20, SOP20
