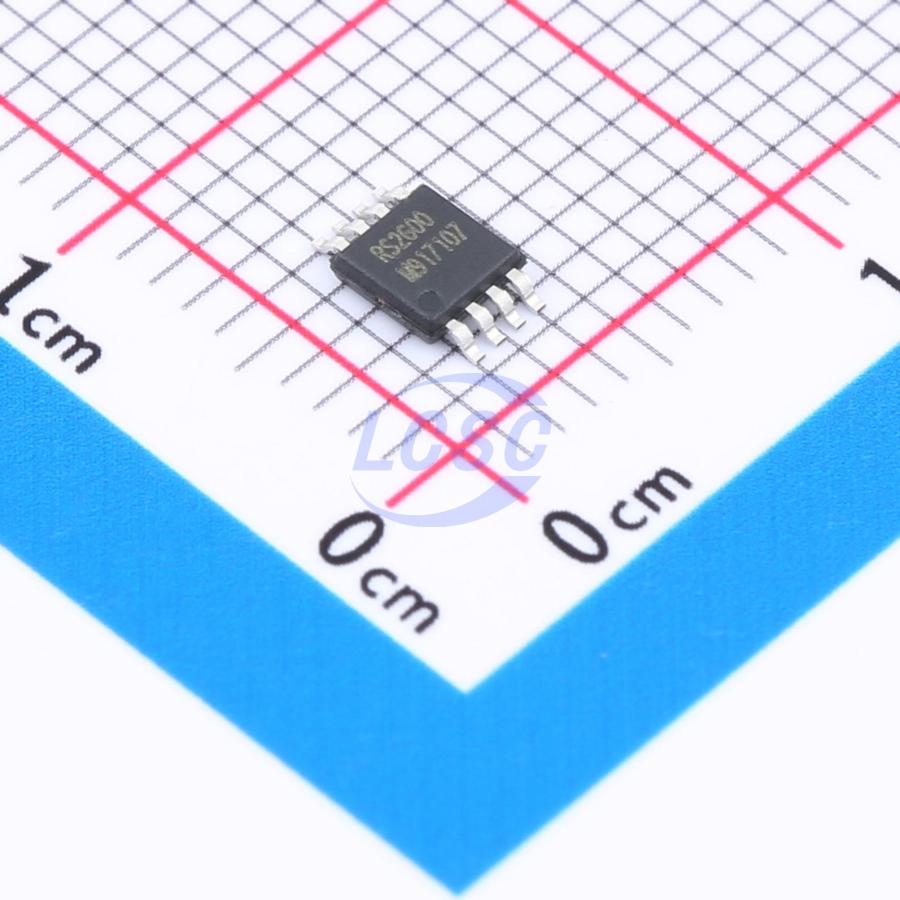

RUNIC

RS2G00XM

10uA 1.65V~5.5V 4.2ns@5V,50pF MSOP-8 Gates and Inverters

MSOP-8RoHSActive

Dual 2-Input Positive-NAND Gate

Manufacturer: RUNIC
Manufacturer part #: RS2G00XM
Store part #: C20611896
Package / case: MSOP-8
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,175 in stock

#C20611896

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹31.99	₹159.95
50+	₹23.88	₹1,194.00
150+	₹20.41	₹3,061.50
500+	₹16.07	₹8,035.00

Quantity (min 5, multiples of 5)

5 × ₹31.99

₹159.95

excl. GST

₹188.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

RS2G00XM

₹159.95 for 5 + GST

Specifications

Features: Local shutdown mode
Input Logic Level - Low: 300mV;400mV
Input Logic Level - High: 1.7V;2.2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.3V;3.8V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Current - Output High(IOH): 24mA
Number of Channels: 2;2
Propagation Delay: 4.2ns@5V,50pF
Output Logic Level - Low: 450mV;300mV;550mV
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.059 g

Overview

The RS2G00 dual 2-input positive-NAND gate is designed for 1.65V to 5.5V VCC operation. The RS2G00 device performs the Boolean function Y = A(overline)B(overline) or Y = A(overline) + B(overline) in positive logic. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS2G00 is available in Green MSOP-8 packages. It operates over an ambient temperature range of -40°C to +125°C.
