RUNICDatasheet (PDF)
RS2G04XH6
1.65V~5.5V 4.2ns@3.3V,50pF 1uA 2 SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive

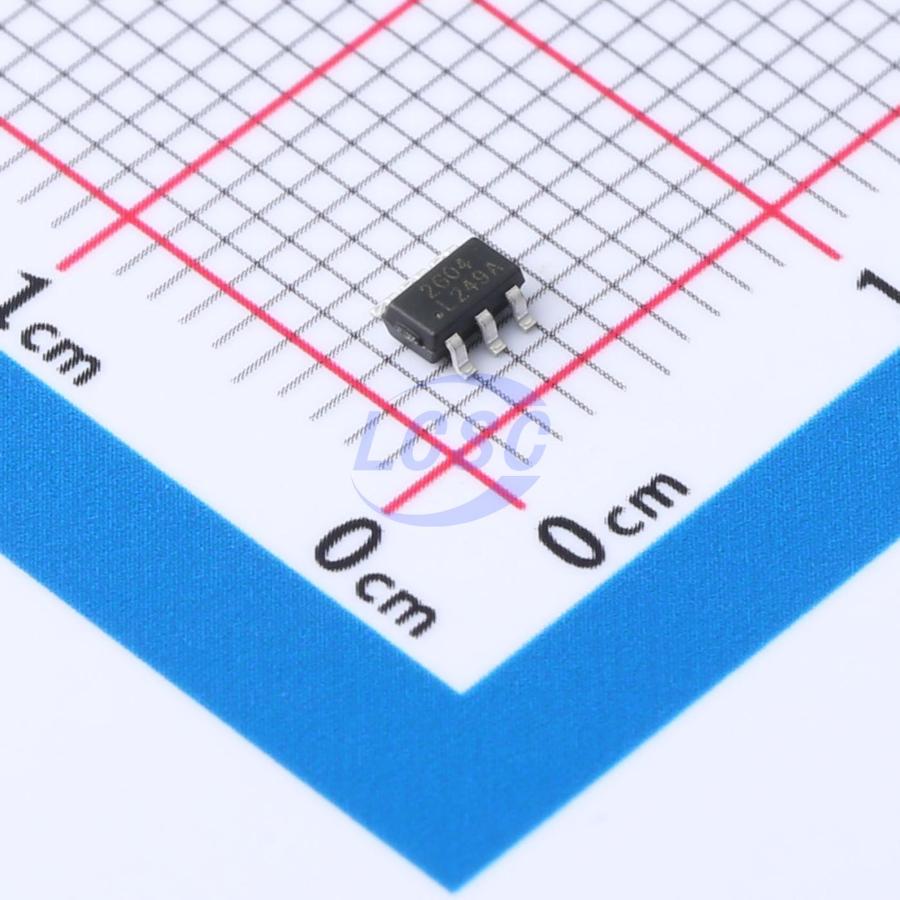

RS2G04 Dual Inverter Gate
- Manufacturer
- RUNIC
- Manufacturer part #
- RS2G04XH6
- Store part #
- C5372483
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,040 in stock
#C5372483
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.34 | ₹106.70 |
| 50+ | ₹15.96 | ₹798.00 |
| 150+ | ₹13.26 | ₹1,989.00 |
| 500+ | ₹11.23 | ₹5,615.00 |
5 × ₹21.34
₹106.70
excl. GST
₹125.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS2G04XH6
₹106.70 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 4.2ns@3.3V,50pF
- Features
- Power shutdown protection
- Input Logic Level - High
- 1.7V;2V
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.4V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 2
- Current - Output High(IOH)
- 24mA
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The RS2G04 Dual inverter gate is designed for 1.65V to 5.5V VCC operation. The RS2G04 device performs the Boolean function Y = A（overline）. The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range. The RS2G04 is available in Green SOT23-6 and SOT363(SC70-6) packages. It operates over an ambient temperature range of -40℃ to +125℃.
Applications
- AC Receiver
- Blu-ray Players and Home Theaters
- Desktops or Notebook PCs
- Digital Video Cameras (DVC)
- Mobile Phones
- Personal Navigation Device (GPS)
- Portable Media Player
Key features
- Operating Voltage Range: 1.65V to 5.5V
- Low Power Consumption: 1μA (Max)
- Operating Temperature Range: -40℃ to ±125℃
- Input Accept Voltage to 5.5V
- High Output Drive: ±24mA at VCC = 3.0V
- Ioff Supports Partial-Power-Down Mode Operation
- Micro SIZE PACKAGES: SOT23-6, SOT363(SC70-6)
