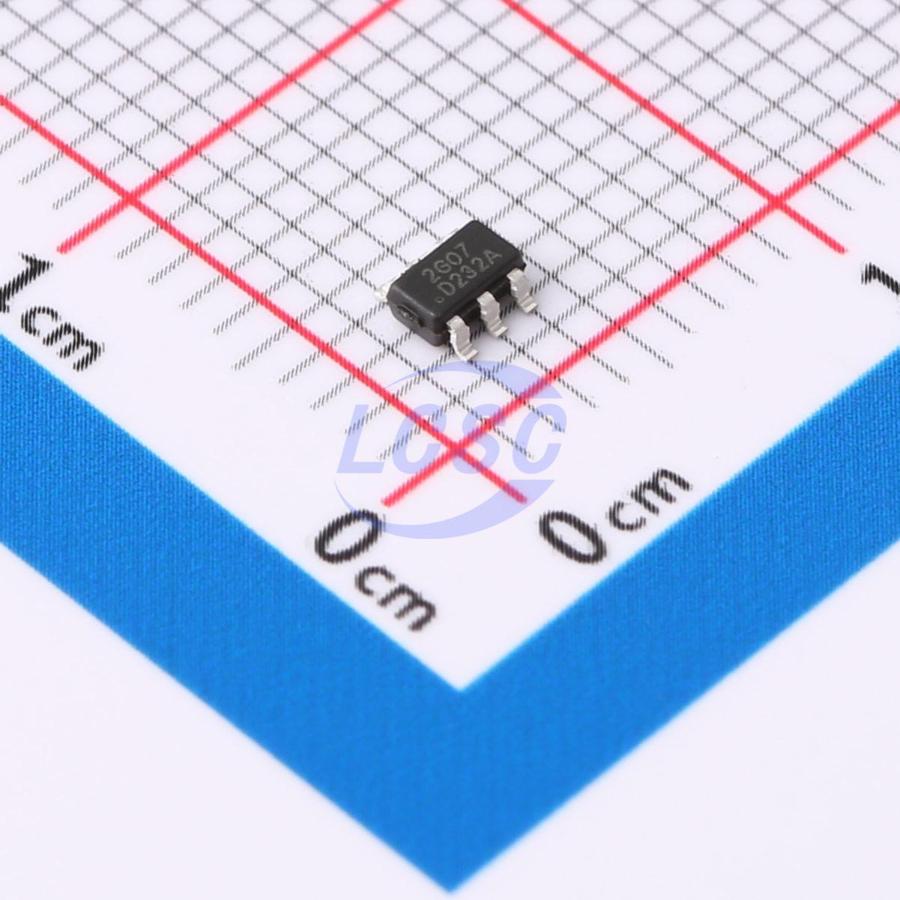

RUNIC

RS2G07XH6

1.65V~5.5V 3.7ns@5V,50pF 1uA 2 SOT-23-6 Gates and Inverters

SOT-23-6RoHSActive

RS2G07 Dual Buffer and Driver with Open-Drain Outputs

Manufacturer: RUNIC
Manufacturer part #: RS2G07XH6
Store part #: C5372485
Package / case: SOT-23-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,970 in stock

#C5372485

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹22.66	₹113.30
50+	₹16.93	₹846.50
150+	₹14.08	₹2,112.00
500+	₹11.93	₹5,965.00

Quantity (min 5, multiples of 5)

5 × ₹22.66

₹113.30

excl. GST

₹133.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS2G07XH6

₹113.30 for 5 + GST

Specifications

Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 100mV;450mV;300mV;400mV;550mV
Propagation Delay: 3.7ns@5V,50pF
Features: Power shutdown protection
Input Logic Level - High: 1.7V;2.2V
Input Logic Level - Low: 300mV;400mV
Operating Temperature: -40℃~+125℃
Quiescent Current(Iq): 1uA
Number of Channels: 2
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

The RS2G07 dual buffer and driver is designed for 1.65V to 5.5V VCC operation. The RS2G07 device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS2G07 is available in Green SOT23-6 and SC70-6 packages. It operates over an ambient temperature range of -40°C to +125°C.
