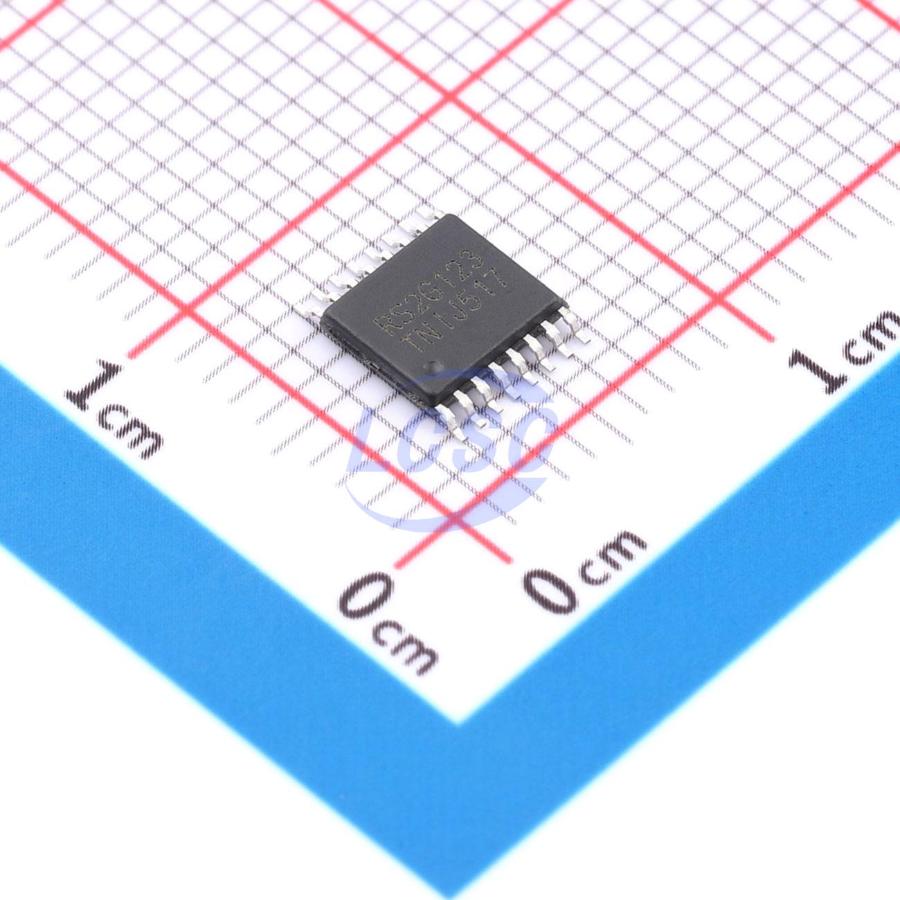

RS2G123XTSS16

The RS2G123 is a double retriggerable monostable multivibrator designed for 2V to 5.5V VCC operation. This monostable multivibrator features output pulse-duration control by three methods. In the first method, the A̅ input is low, and the B input goes high. In the second method, the B input is high, and the A̅ input goes low. In the third method, the A̅ input is low, the B input is high, and the clear (̅C̅L̅̅R̅) input goes high. The output pulse duration is programmed by selecting external resistance and capacitance values. The external timing capacitor must be connected between Cext and Rext/Cext (positive) and an external resistor connected between Rext/Cext and VCC. To obtain variable pulse durations, connect an external variable resistance between Rext/Cext and VCC. The output pulse duration also can be reduced by taking ̅C̅L̅̅R̅ low.

Applications

• AV Receiver DVD Recorders and Players
• Desktop PCs or Notebook PCs
• Blu-ray Player and Home Theater
• Embedded PCs
• Digital Video Cameras (DVC)
• Digital Radio and Internet Radio Players
• Personal Digital Assistant (PDA)
• Wireless Headsets, Keyboards, and Mice
• Video Analytics Servers
• Network Attached Storage (NAS) Mobile Internet Devices

Key features

• Operating Voltage Range: 2V to 5.5V
• CMOS Low Power Consumption
• Schmitt-Trigger Circuitry on A̅ and B Inputs Inputs Accept Voltage to 5.5V
• High Output Drive: ±24mA at Vcc = 3.0V
• Edge Triggered from Active-High or ActiveLow Gated Logic Inputs
• Retriggerable for Very Long Pulses Up to 100% Duty Factor
• Direct Reset Terminates Output Pulse
• Power-On-Reset on Outputs
• Ioff Supports Live Insertion, PartialPowerDown Mode, and Back-Drive Protection
• Operating Temperature Range: -40℃ to +125℃
• Micro Size Packages: SOP16, TSSOP16
