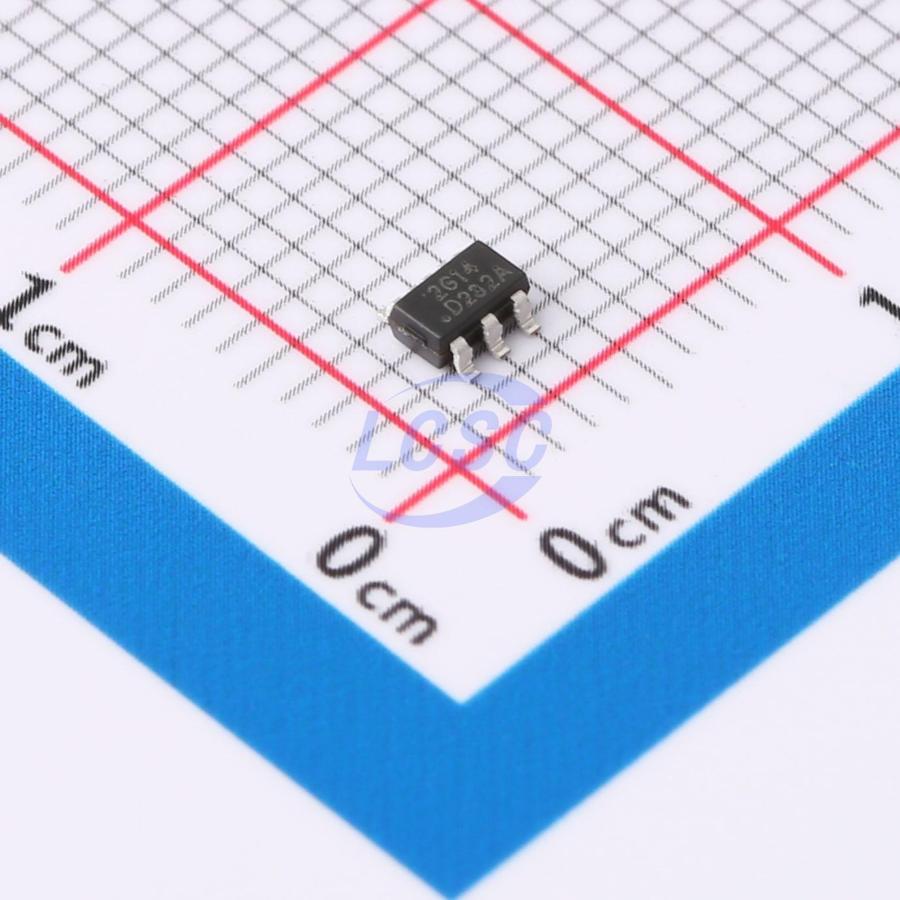

RUNIC

RS2G14XH6

Schmitt trigger 1.65V~5.5V 3.1ns@3.3V,50pF 1uA 2 SOT-23-6 Gates and Inverters

SOT-23-6RoHSSold out at source

RS2G14 Dual Schmitt-Trigger Inverter

Manufacturer: RUNIC
Manufacturer part #: RS2G14XH6
Store part #: C5372490
Package / case: SOT-23-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,110 in stock

#C5372490

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹17.65	₹88.25
50+	₹11.93	₹596.50

Quantity (min 5, multiples of 5)

5 × ₹17.65

₹88.25

excl. GST

₹104.14 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS2G14XH6

₹88.25 for 5 + GST

Specifications

Input Type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 3.1ns@3.3V,50pF
Output Logic Level - Low: 100mV;450mV;300mV;400mV;550mV
Features: Power shutdown protection;Noise suppression function
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.4V;2.3V;3.8V
Quiescent Current(Iq): 1uA
Current - Output High(IOH): 24mA
Number of Channels: 2
Current - Output Low(IOL): 24mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Sold out at source
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.045 g

Overview

The RS2G14 Dual Schmitt-trigger inverter is designed for 1.65V to 5.5V VCC operation. The RS2G14 device contains two inverter and performs the Boolean function Y = A (overline). The device functions as two independent inverters with Schmitt-trigger inputs, so the device has different input threshold levels for positive-going (VT+) and negative going (VT-) signals to provide hysteresis (ΔVT) which makes the device tolerant to slow or noisy input signals. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS2G14 is available in Green SOT23-6 and SC70-6 packages. It operates over an ambient temperature range of -40℃ to +125℃.
