RUNICDatasheet (PDF)
RS2G17XC6
Schmitt trigger 1.65V~5.5V 5.7ns@3.3V,50pF 1uA 2 SC70-6 Gates and Inverters
SC70-6RoHSActive

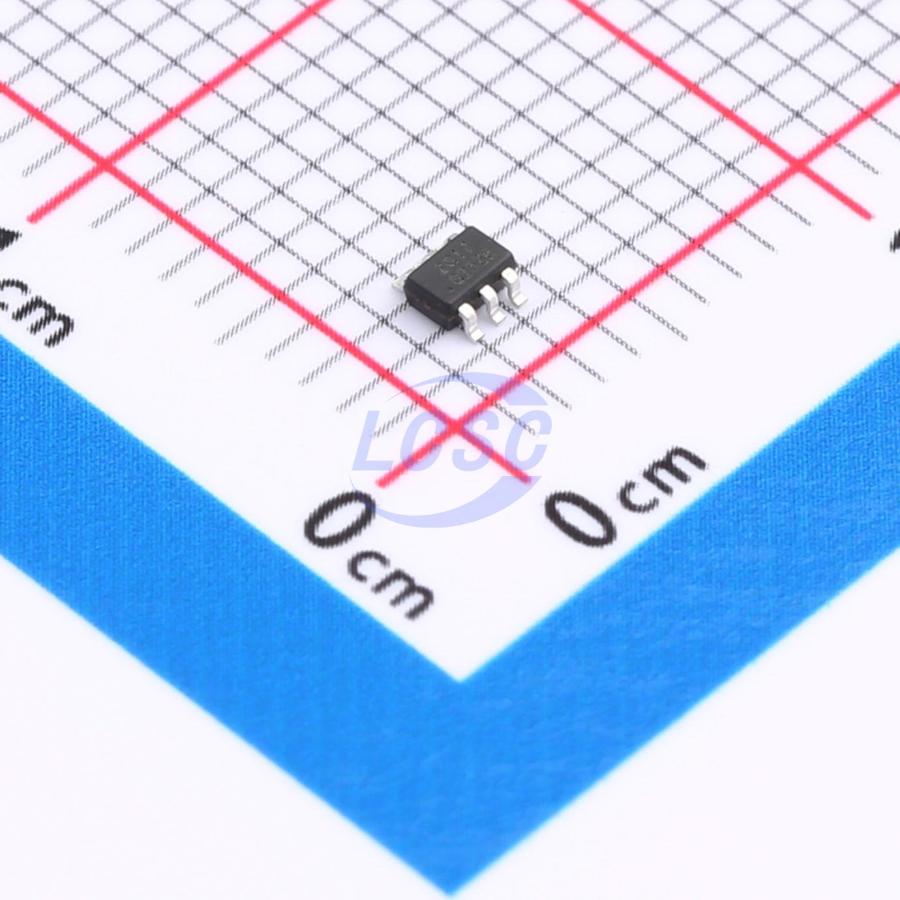

RS2G17 Dual Schmitt-Trigger buffer
- Manufacturer
- RUNIC
- Manufacturer part #
- RS2G17XC6
- Store part #
- C5372491
- Package / case
- SC70-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,465 in stock
#C5372491
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.73 | ₹123.65 |
| 50+ | ₹18.48 | ₹924.00 |
| 150+ | ₹15.36 | ₹2,304.00 |
| 500+ | ₹13.02 | ₹6,510.00 |
5 × ₹24.73
₹123.65
excl. GST
₹145.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS2G17XC6
₹123.65 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 450mV;300mV;550mV
- Propagation Delay
- 5.7ns@3.3V,50pF
- Features
- Power shutdown protection;Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.3V;3.8V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
The RS2G17 Dual Schmitt-trigger buffer is designed for 1.65V to 5.5V VCC operation. The RS2G17 device contains two buffer and performs the Boolean function Y = A. The device functions as two independent buffers with Schmitt-trigger inputs, so the device has different input threshold levels for positive-going (VT+) and negative going (VT-) signals to provide hysteresis (ΔVT) which makes the device tolerant to slow or noisy input signals. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The RS2G17 is available in Green SOT23-6 and SC70-6 packages. It operates over an ambient temperature range of -40°C to +125°C.
Applications
- AC Receiver
- Home Theaters
- Blu-ray Players
- Desktops or Notebook PCs
- Digital Video Cameras (DVC)
- Mobile Phones
- Personal Navigation Device (GPS)
- Portable Media Player
Key features
- Operating Voltage Range: 1.65V to 5.5V
- Low Power Consumption: 1µA (Max)
- Operating Temperature Range: -40°C to ±125°C
- Input Accept Voltage to 5.5V
- High Output Drive: ±24mA at VCC = 3.0V
- Ioff Supports Partial-Power-Down Mode Operation
- Micro SIZE PACKAGES: SOT23-6, SC70-6
